model

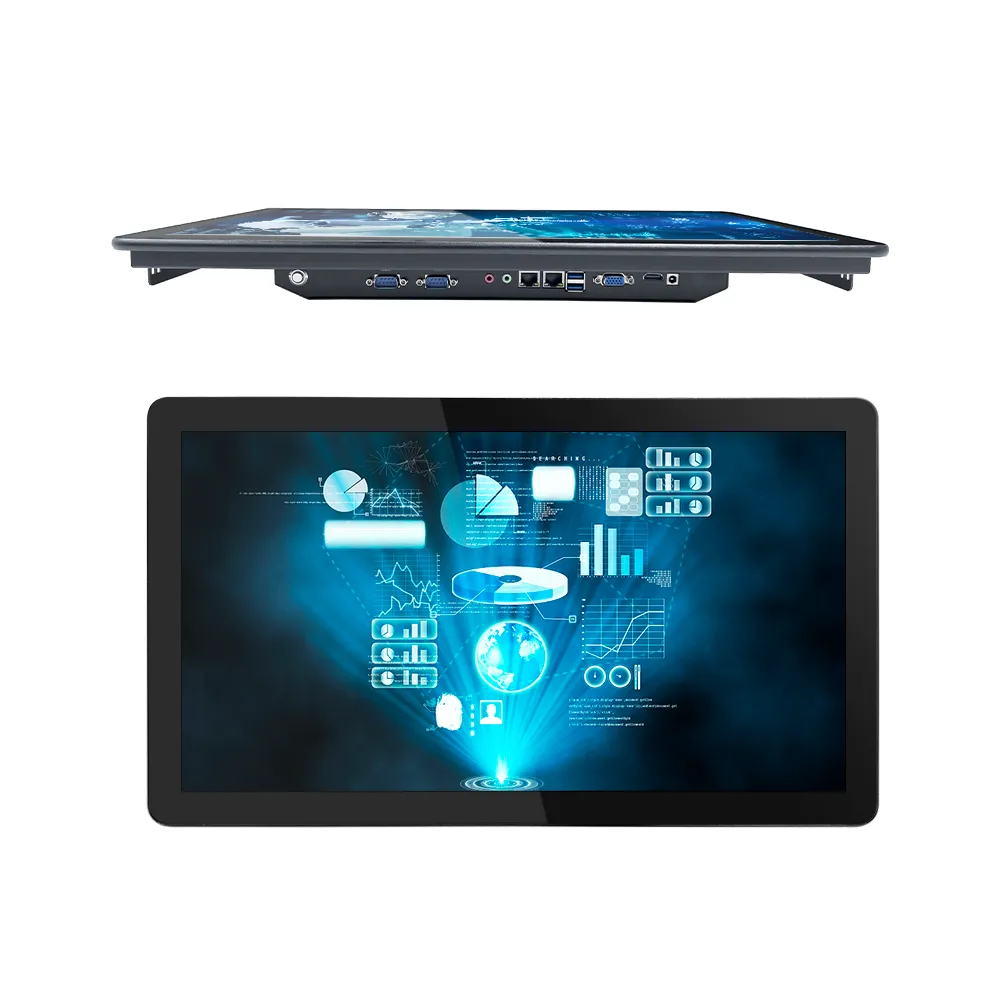

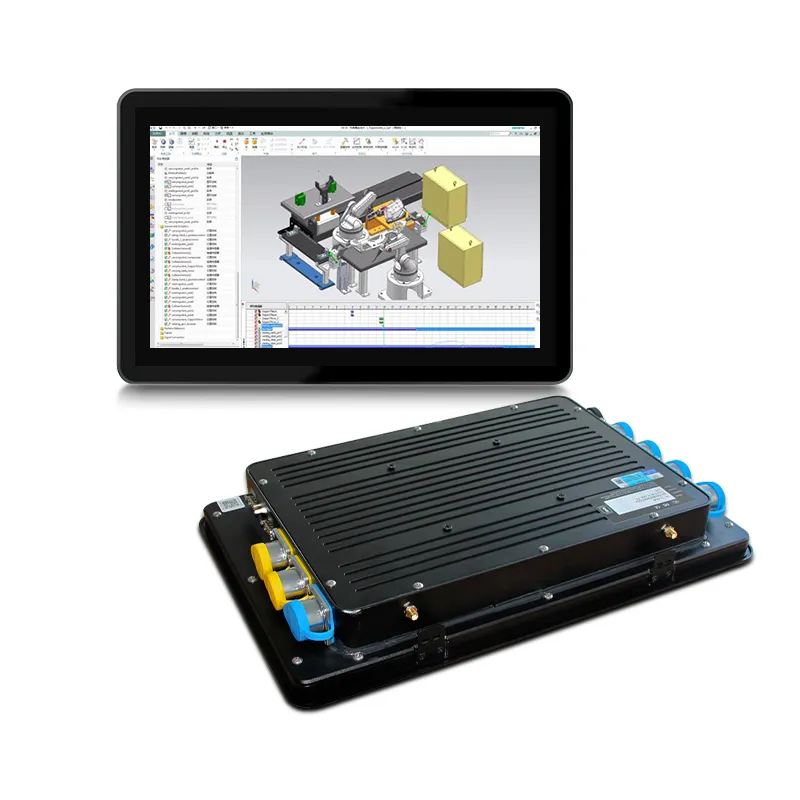

YPC-156AZ









system

CPU

Intel®Core 7th Generation
i3/i5/i7

Intel® Core 10th Generation
i3/i5/i7

Intel®Core 12th Generation
i3/i5/i7

Intel® Celeron J6412/ Intel® Alder Lake_
N97

Memory

1*SODIMM memory slot, supports
DDR3L/DDR3,
maximum support 32GB

2*SODIMM memory slots, support DDR4  dual-channel
memory, maximum support 64GB

2*SODIMM memory
slots, support DDR4
dual-channel memory, maximum support
64GB

1*SODIMM memory slot, supports DDR4, maximum support    32GB

storage

1* M.2 2280 Key-M  slot (supports SATA SSD and NVME SSD adaptive)
1*SATA (supports 2.5- inch hard disk)

1* M.2 2280 Key-M  slot (supports SATA SSD and NVME SSD adaptive)
1*SATA (supports 2.5- inch hard disk)

1* M.2 2280 Key-M
slot (supports SATA SSD, customizable
NVME SSD)
1*SATA (supports 2.5- inch hard disk)

1* M.2 2280 Key-M  slot (supports SATA SSD)
1*SATA (supports 2.5- inch hard disk)

Network (LAN)

2*RTL8111H Gigabit electrical ports, support network wake-up/PXE

I/O Interface

1*power switch
1*power indicator light
1*hard disk indicator
1*HDMI
4*USB3.0,
2*USB2.0
2*LAN
6*COM (COM1/COM2 optional RS232/RS485, COM3-COM6 RS232)
8*GPIO (providing digital input and output) + SW (start button external interface)
1*audio two-in-one interface
1*Power-on automatic start switch (manual toggle)
1*CMOS Clear button (can clear BIOS settings and restore to factory default state)
1*2pin Phoenix terminal, supports 12V voltage input, optional 9-36V wide voltage input

Extensions

1*M.2 2230 Key-E slot, supports WIFI/BT module
1*Mini-PCIE slot, supports WIFI/4G module

Watchdog

255 levels of programmable seconds/minutes, supporting timeout interrupt or system reset

speaker

2*8Ω 2w

operating
system

operating system

Microsoft® Windows10 , Win dows 11 , Linux

LCD screen

type

15.6-inch industrial-grade LCD display (LED backlight)

Resolution

1920*1080

Viewing angle

89/89/89/89 (Typ.)(CR≥10)

brightness

250nits

Contrast

3000:1

Backlight life

30000hr (min.)

touchscreen

type

Projected capacitive touch, 10-point touch

Control method

USB interface

Light
transmittance

More than 80%

environment

Operating

-5℃~60℃

Storage

-20°℃~75°℃

relative humidity

5%-95% relative humidity, non-condensing

body

Weight (bare)

TBD

Install

Support VESA installation/embedded panel installation
