12.2'' Android 11 5G 8G+128G Rugged Laptop TK-Q225M
•Support for Andriod 10 system

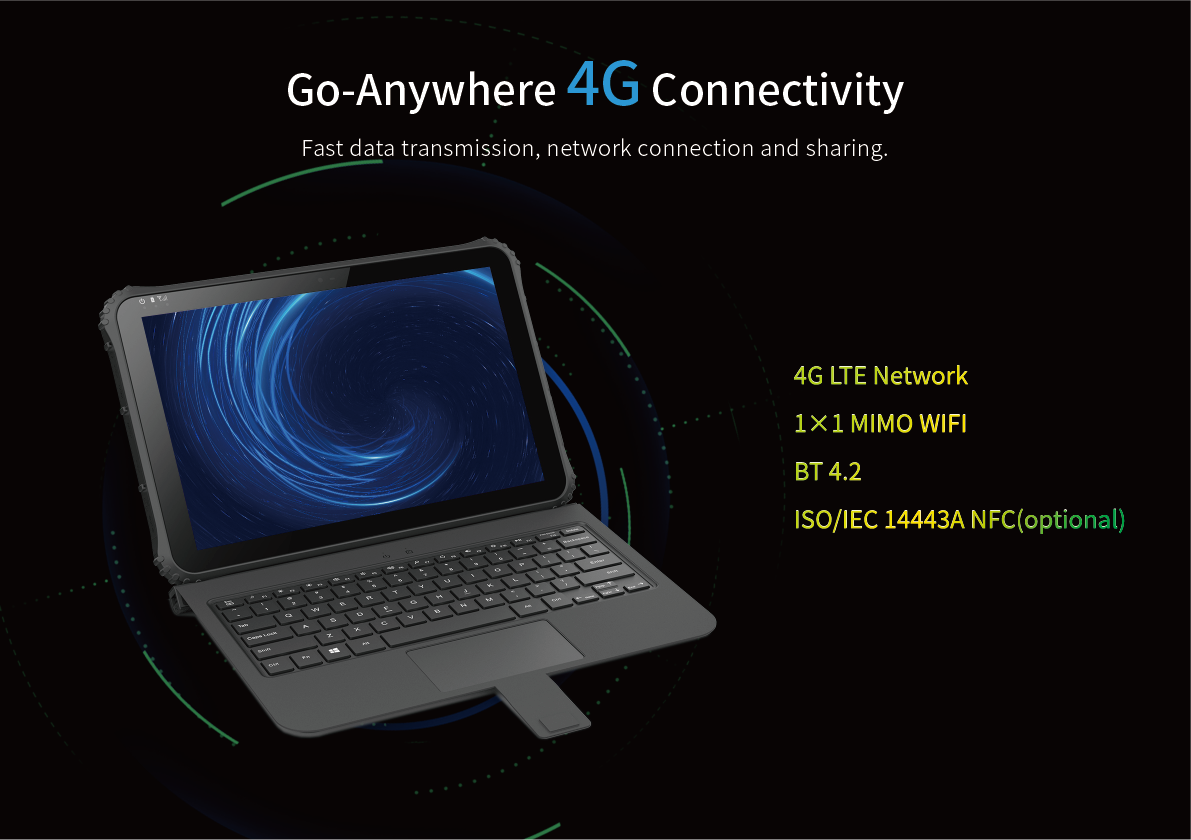

•Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
•12600mAh battery, 6-8 hours of machine endurance
•IP65 high protection level, in accordance with MIL-STD-810G
•Support GPS, Glonass, Beidou, more accurate positioning
•Support 1920x1200 high score screen, optional with Corning gorilla TP
•Support 1D/2D, NFC and other functional modules for free selection
•Support for Andriod 10 system
•Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
•12600mAh battery, 6-8 hours of machine endurance
•IP65 high protection level, in accordance with MIL-STD-810G
•Support GPS, Glonass, Beidou, more accurate positioning
•Support 1920x1200 high score screen, optional with Corning gorilla TP
•Support 1D/2D, NFC and other functional modules for free selection
| Tech Spec | |

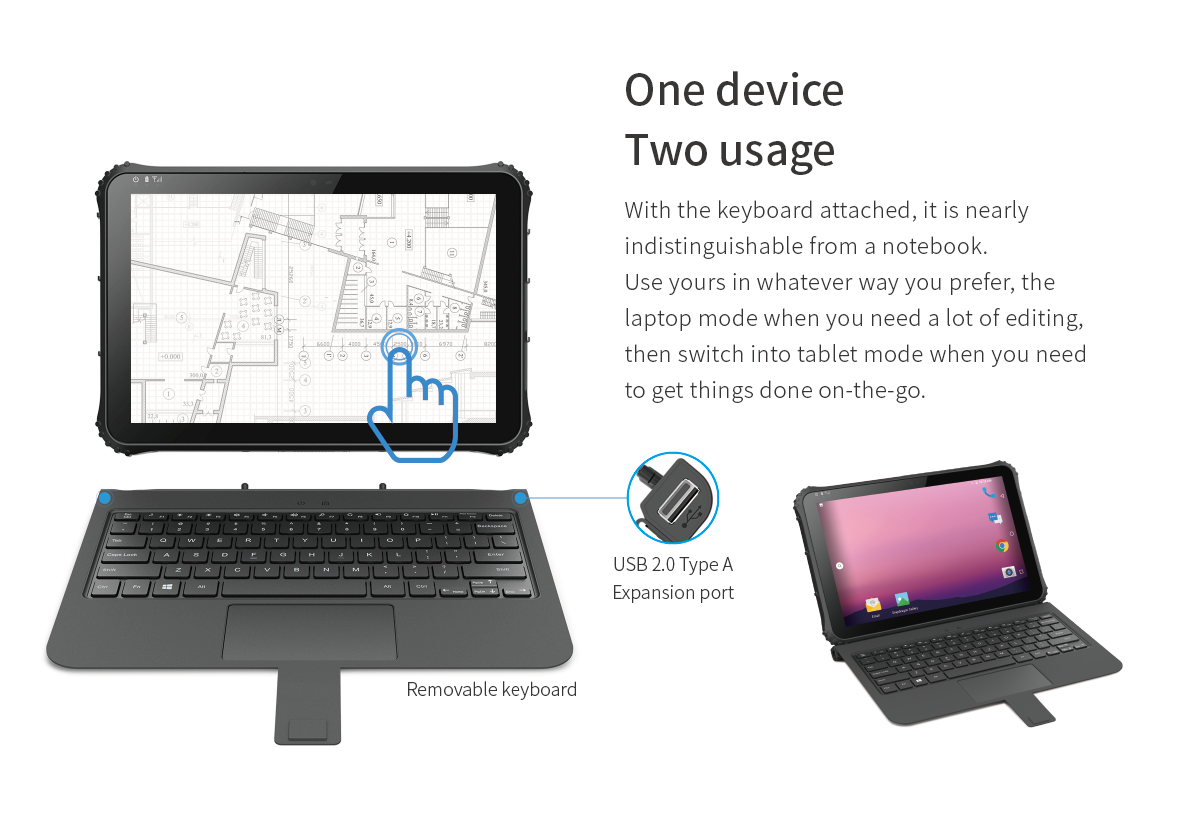

| Product Form | 12.2 inch 2 in 1 Rugged Notebook |
| Dimension | 319.6*216*24.3 mm |
| Weight | 1500g |
| Product Color | Black (black bottom shell, black front shell) |
| CPU | SM6350 2.0GHZ |
| GPU | Adreno GPU 619 |
| Memory | RAM 8GB DDR3L ROM 128GB EMMC |
| Operating System | Andriod 11 |

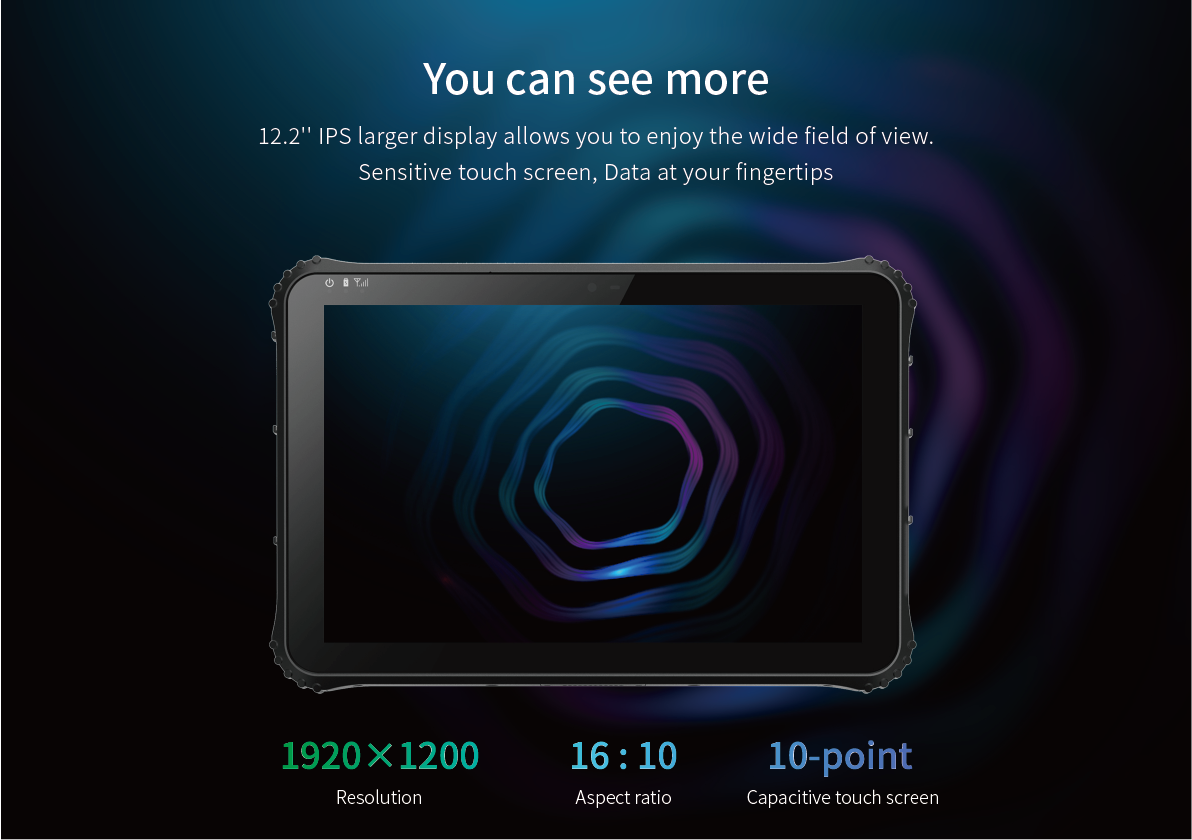

| Display | Type: IPS Size: 12.2 inch 16:10 Resolution: 1920*1200 Brightness: 650cd/㎡ |
| Touch Pannel | 10 point capacitive screen, G+G, Corning gorilla hardness above 7H, scratch resistant, COF, support GP930 stylus |

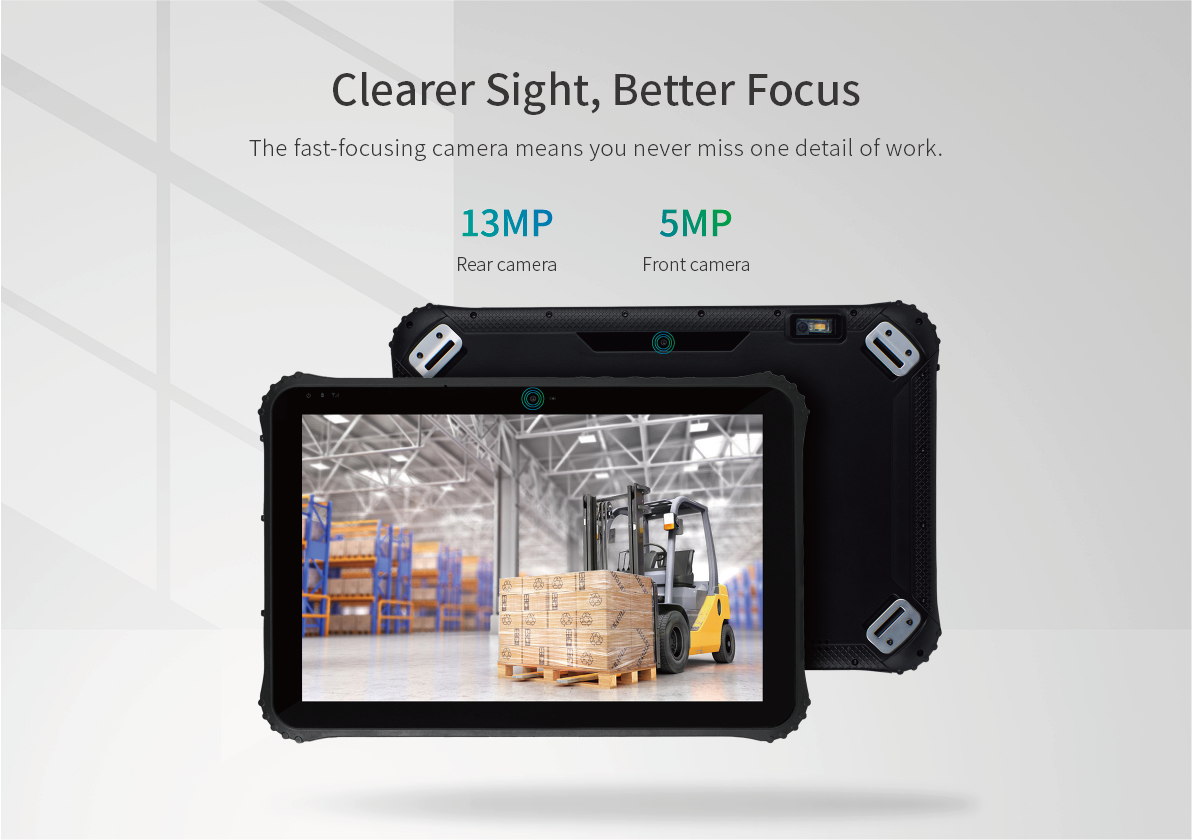

| Camera | Front 5.0MP Rear 13.0MP |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 P1 Key *1 (HOME key) P2 Key *1 (BACK key) F Key *1 (Barcode scanner) (Back of machine) |
| Speaker | 8Ω/1W Waterproof BOX Speaker *2 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Battery | Removable Li-polyment Battery 3.7V/12600mAh 7hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Sensor | G_sensor, L_sensor, Gyro Sensor |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5G |
| Bluetooth | BT5.1 (BLE) |
| 3G | WCDMA: B1/5/8 |
| 4G | TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/3/5/8 |
| 5G | 5G NR: N1/28/41/78/79 |
| GPS | Sleeve support: GPS+Glonass; capture sensitivity: -140 dBm; cold start time: <50 seconds, hot start time: <5 seconds, GPS frequency: 1575.42MHz, Glonass frequency: 1602MHz |

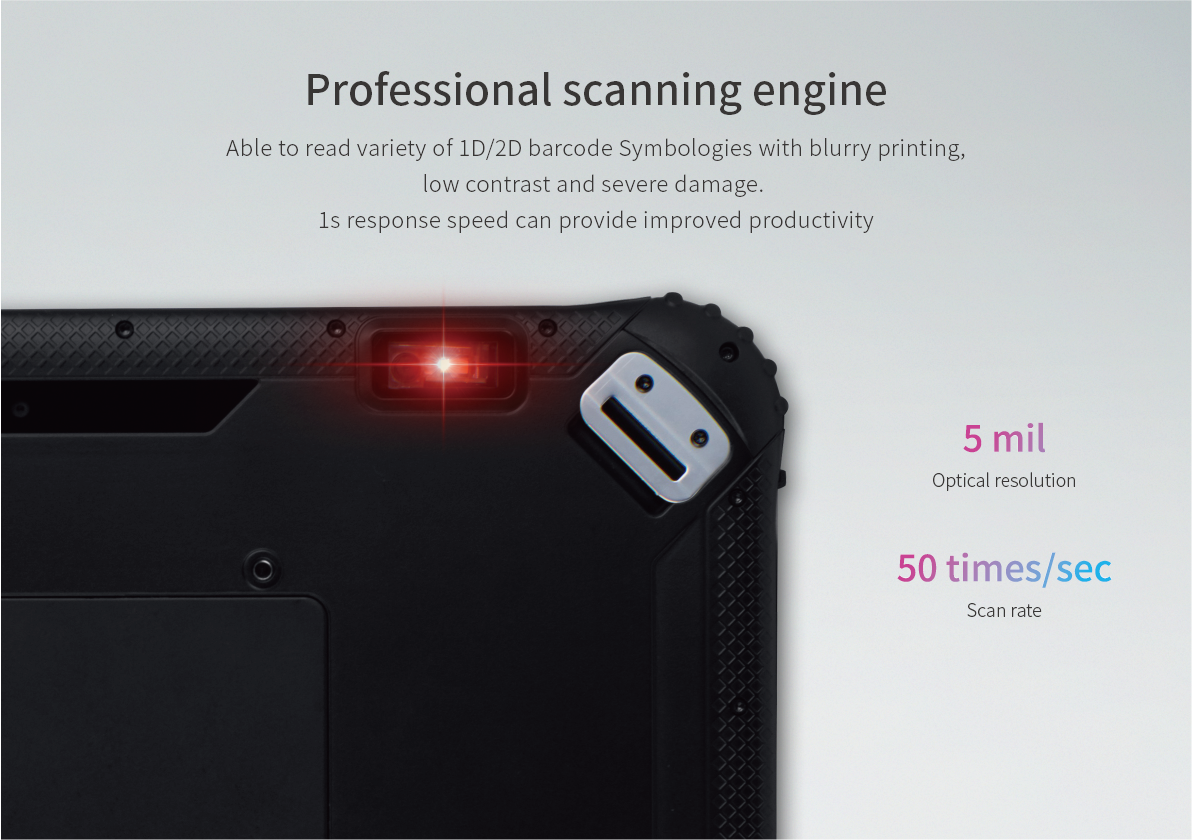

| 2D | Optional, Honeywell N3680 hard decoding Optical resolution: 5mil Scanning speed: 50 times/s Support coding system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC | ST21NFCDDBGARA7 (Qualcomm/RK series) Support 14443A protocol under ISO/IEC, reading distance: 3-5cm |

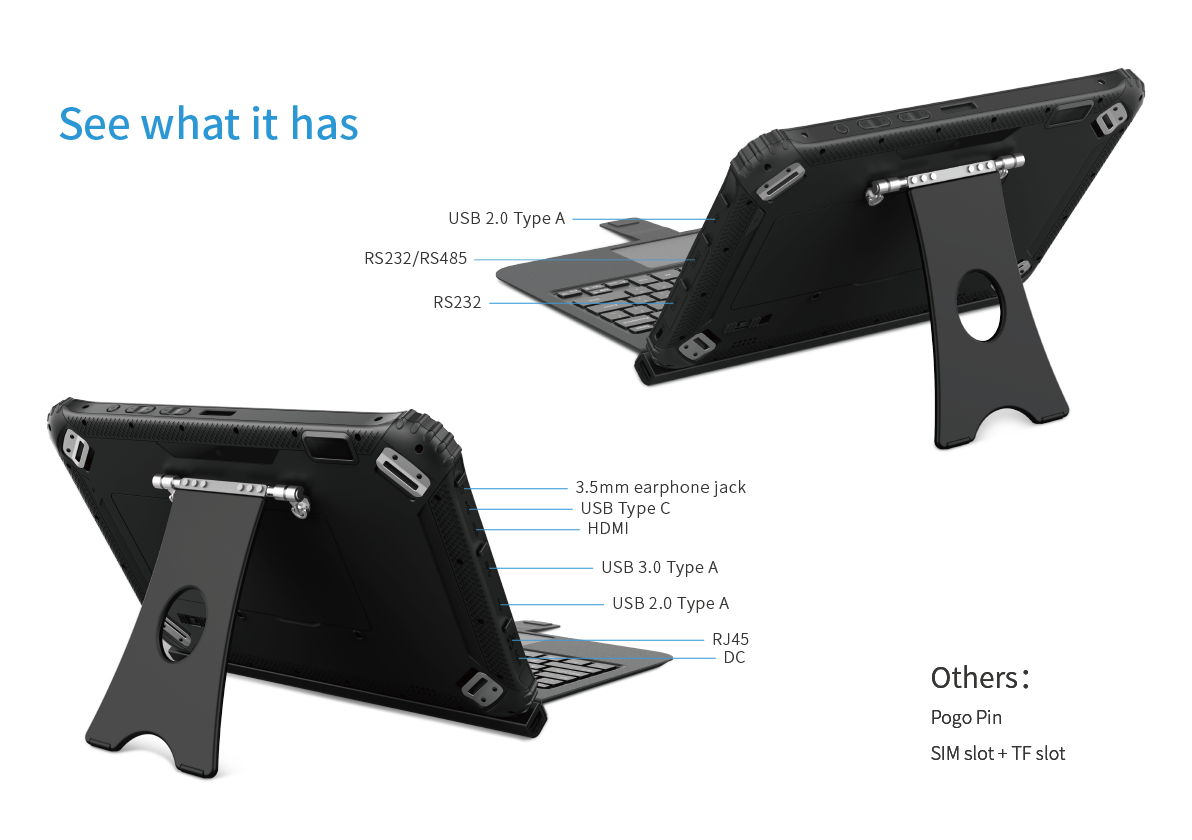

| I/O Interface | USB 2.0 *2 (4pin) |
| USB 3.0 *1 (9pin) | |
| Type C *1 (Data & Charing) | |
| ∮3.5mm standard earphone jack *1 | |
| TF Card *1 max：256G | |
| SIM Card *1 | |
| DC 5V/4A ∮3.5mm Power connector *1 | |
| HDMI *1 | |
| DB9 (RS232) *1, DB9 (RS485) *1 | |
| RJ45 (10/100Mbps) *1 | |
| 12PIN Pogo Pin *1 | |
| Adapter | AC100V~240V, 50Hz/60Hz Output DC 5V/4A has passed CE certification Optional: EU, UK |
| USB Line | USB to micro 5P L=1.2M 4-core with aluminum foil and screen |

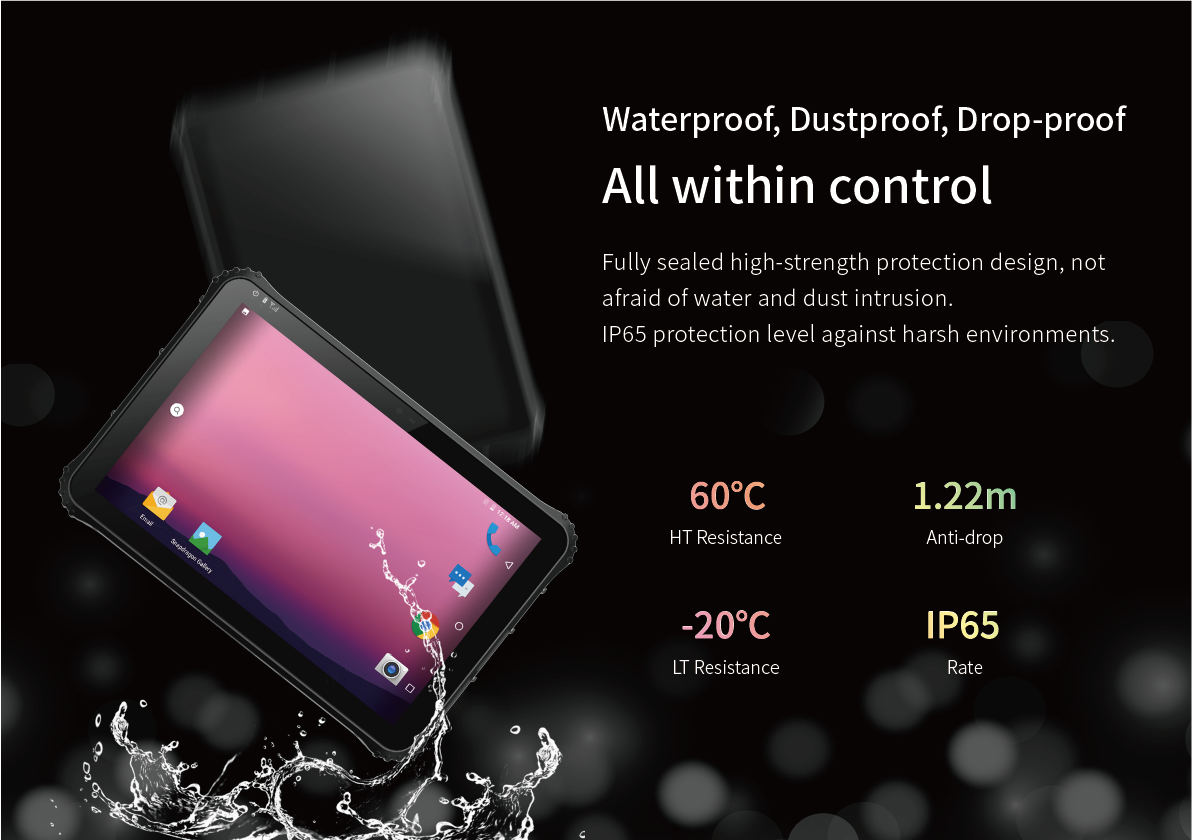

| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE NB | |
| FCC | |
| RoHS | |
| MIL-STD-810G | |
| Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 | |
