Basic parameters

Dimension

363.2 x 287.4 x 42.1mm

Weight

Device unit 2850g

Device Color

Black

LCD

14 inch FHD 16:9, 1920x1080, 700/1000 nits

Touch Panel

Optional 10 point G+G capacitive touch screen Corning® Gorilla® Glass

Camera

Front 2.0MP

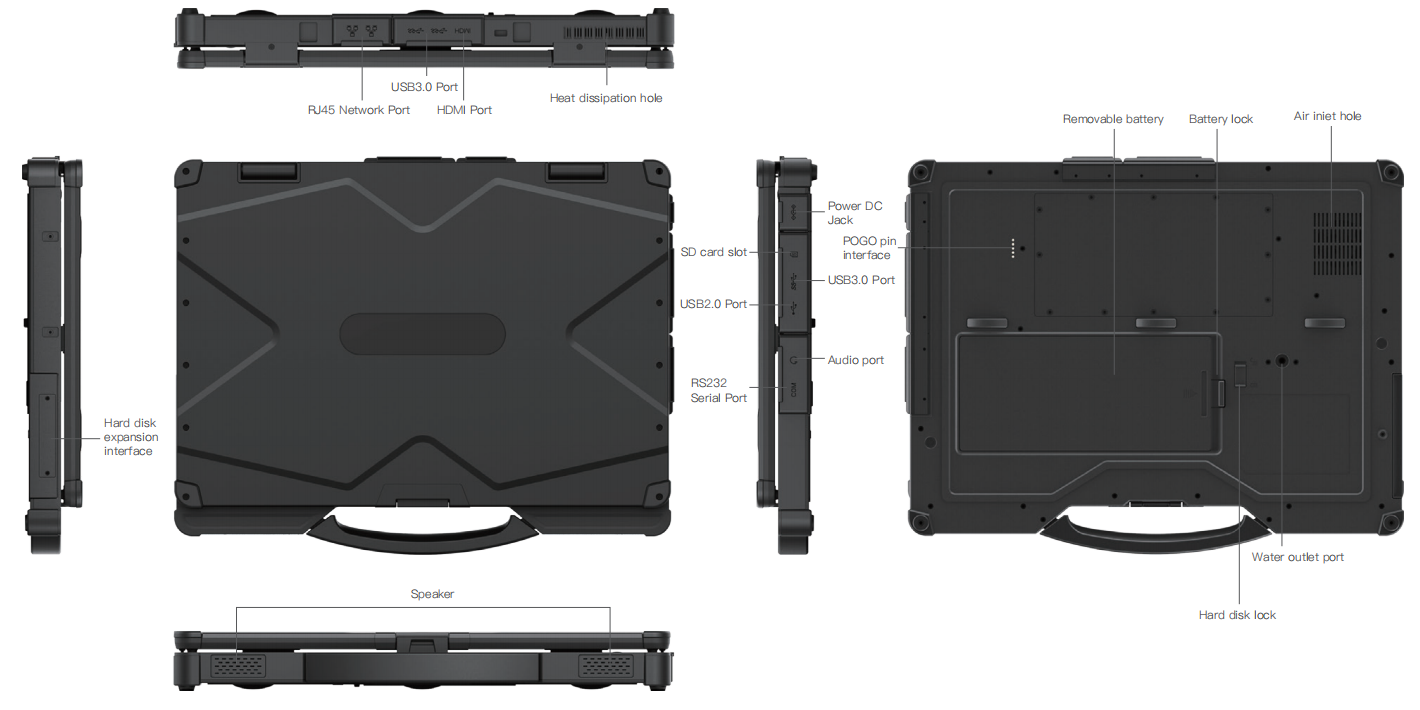

I/O

HDMI x 1, POGO 5pin x 1,
USB 2.0 Type-A x 1, USB 3.0 Type-A x 3, SIM Card x 1, SD Card x 1,
DB9 RS232 × 1, RJ45 × 2,
Φ3.5mm standard earphone jack x 1, DC 19V 3.42A x 1
Anti theft lock hole *1、Heat dissipation air outlet (right) *1
Left docking station, optional custom adapter PCIE X4 slot or HDD *1

Power

AC100V ~ 240V, Output DC 19V/3.42A/65W

Battery（Built-in）

Capacity

7.4V/1750mAh

Type

Built in Li_polyment,battery loadable

Endurance

0.5hrs (Default 50% volume，default 200 nit， Play 720P HD video)

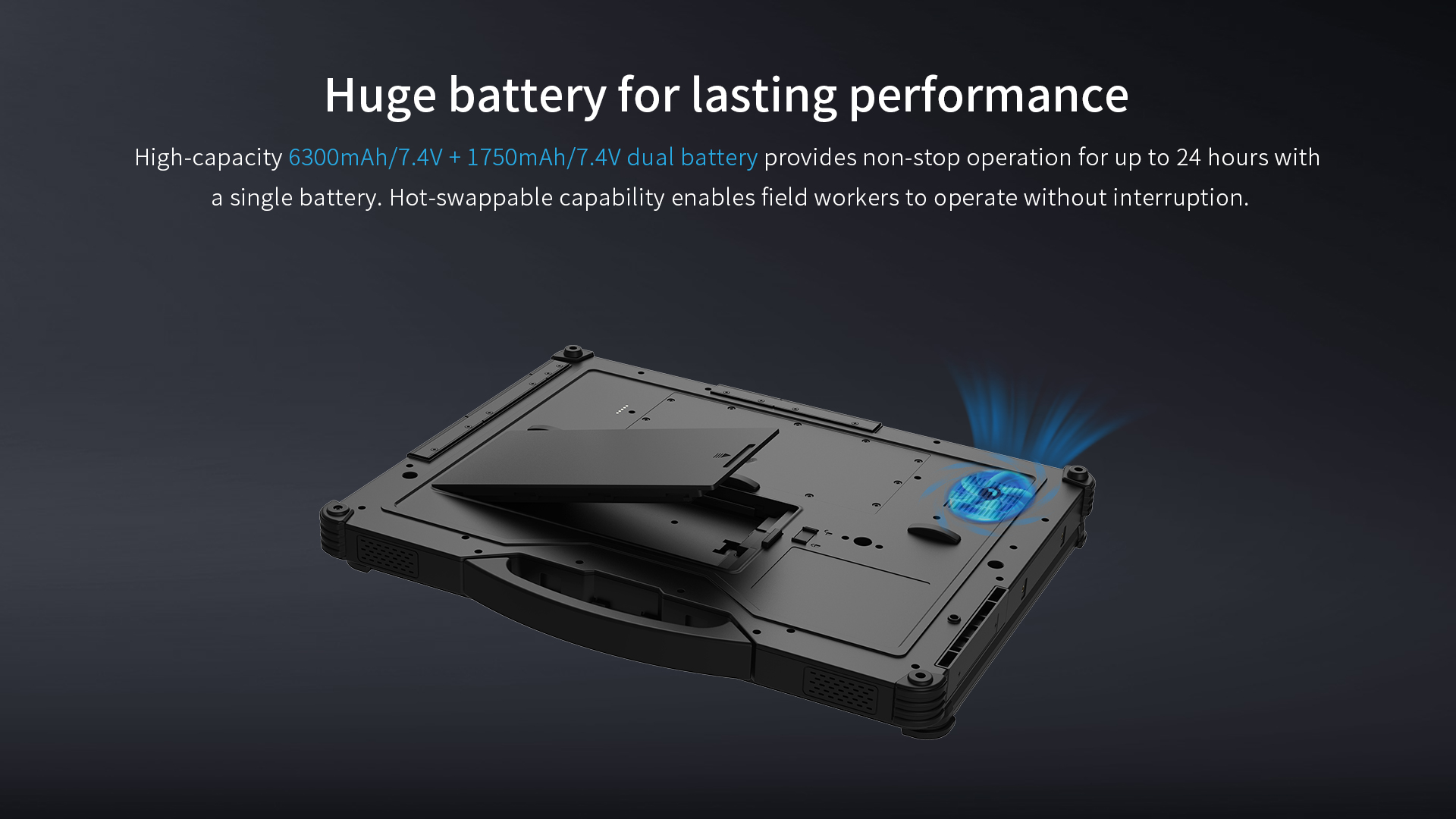

Battery（Hot-swappable）

Capacity

7.4V/6300mAh

Type

Li_polyment, removeable battery

Endurance

8.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )

Performance parameter

CPU

Intel® Core™ i5-1135G7/i7-1165G7

OS

Windows 11/10

RAM

16GB/32GB

ROM

256GB/512GB/1TB

Communication

WIFI

WiFi 6，802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax

Bluetooth

BT5.1
Transmission distance: 10m

2G/3G/4G (Optional)

LTE-FDD: B1/B3/B5/B7/B8/B20  LTE-TDD: B40 WCDMA: B1/B5/B8  GSM: B3/B8

5G
(Optional)

5G NR：n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/
n38/n40/n41/n48*/ n66/n71/n77/n78/n79
LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/ B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD：B34/B38/B39/B40/B41/B42/B43/B48
LAA：B46
WCDMA：B1/B2/B3/B4/B5/B6/B8/B19

GNSS

Support GPS, Optional GPS+Beidou

Reliability

Operate
Temperature

-20 °C ~ 60 °C

Store
Temperature

-30 °C ~ 70 °C

Humidity

95% Non-Condensing

Rugged Feature

IP65 certified, MIL-STD-810G certified

Drop Height

1.22m

Data Collection

Fingerprint

SPI fingerprint (power on login)

NFC

Optional, 13.56MHz,
Card reading distance: 4cm
