Tech Spec

Product Form

5 inch  Rugged Handheld

Material

-

Dimension

157.4*74.6*24.2mm

Weight

260g

Product Color

Black

CPU

MT6762 （8core）
4*A53  2.0GHz
4*A53  1.5GHz

GPU

IMG GE8320 650MHz

Memory

RAM LPDDR4X up to 4GB(dual channels with 16-bit data bus width)               ROM  64GB  EMMC

Operating System

Andriod11

Display

Type: IPS
Size: 5 inch   16:9
Resolution:  720*1280
Brightness: 350 Nit

Touch Pannel

5 points Capacitive，G+FF

Camera

Front 5MP
Rear 13.0MP, automatic focusing with astigmatism，PDAF support

Buttons

Power *1
Volume Adjustment Key (+) *1
Volume Adjustment Key (-) *1
Home Key *1
Bar code scanning (left and right)*2
Menu*1
Back*1
Custom*2

Speaker

Embedded 8Ω/1W  speaker x 1

Microphone

Sensitivity: -42db, Output Impedance 2.2kΩ

Senssors

G_sensor *1
Geomagnetic sensor *1
Ggyroscope *1
light Sensor *1

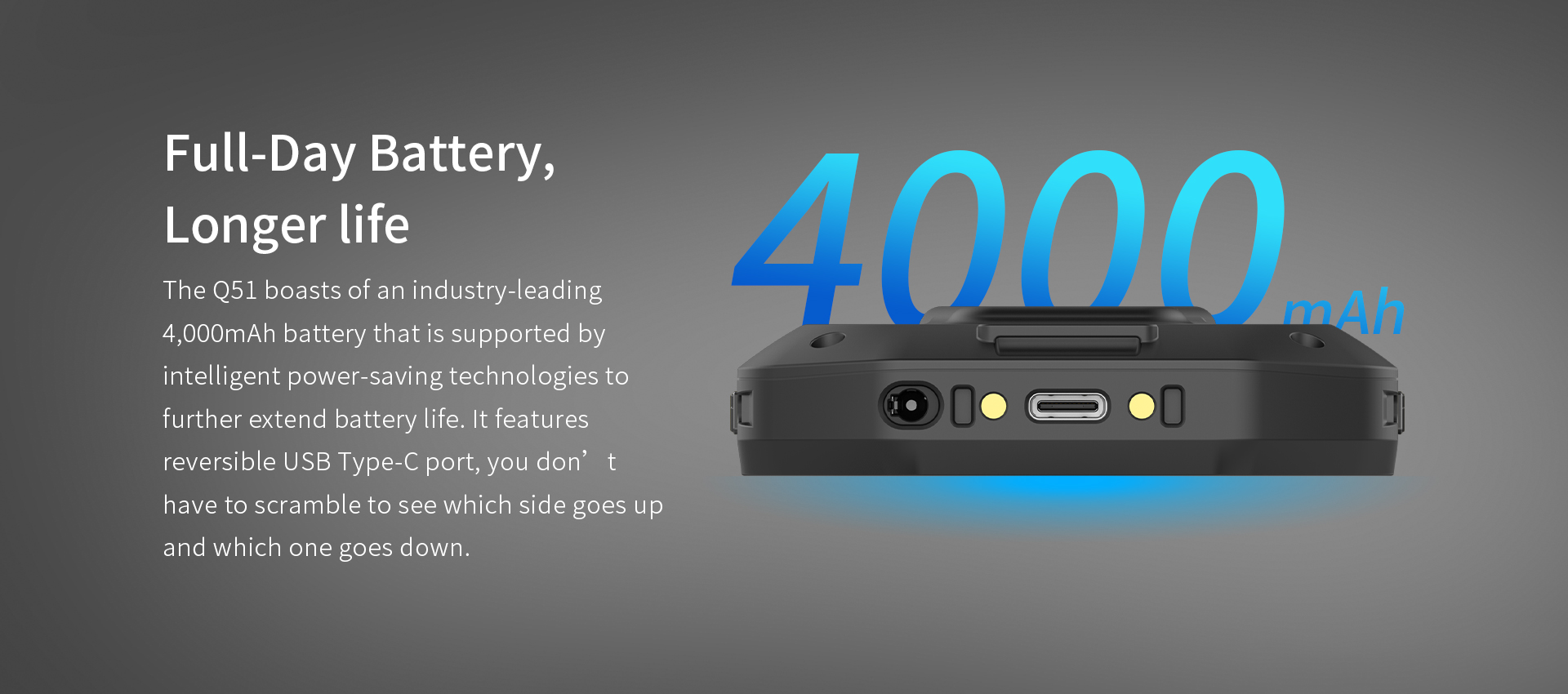

Battery

Built-in Removable Lithium-ion polymer battery
3.8V/4000mAh
10hrs(default volume and brightness to play video)

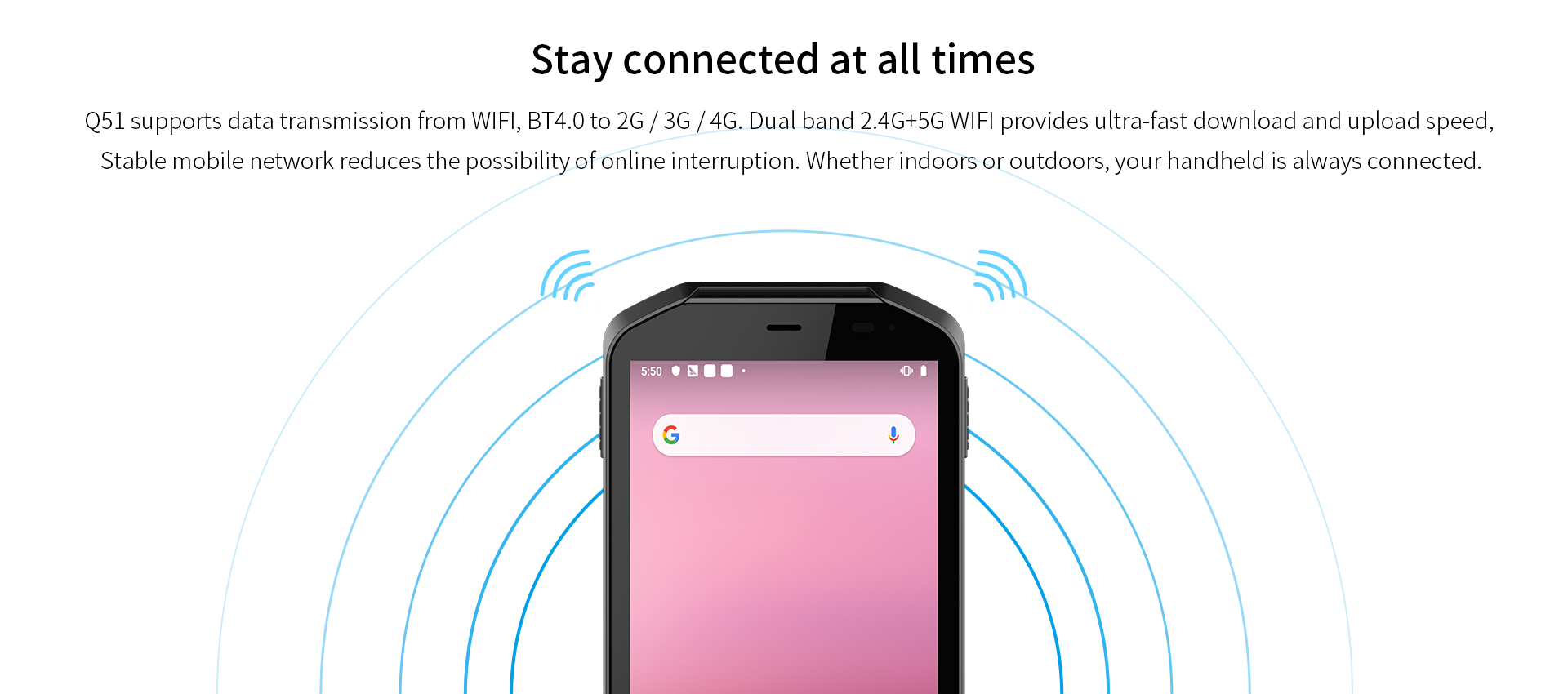

WIFI

WIFI 802.11(a/b/g/n/ac)    frequency 2.4G+5G dual band WIFI,Support AP seamless roaming

Bluetooth

BT5.0(BLE)

4G

GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41)

GPS

Support GPS、Glonass、beidou(G+G+B)

NFC

NFC 13.56MHz  Support ISO/IEC 下14443A/14443B/15693/18092/mifare 协议

I/O Interface

Type-c 2.0*1  OTG   (Data transmission)

∮3.5mm  standard earphone jack  x1

SIM card  *1

TF card *1 (SDHC/SDXC supported), Max: 128GB

Pogo Pin (Base Charge) *1

Adapter

AC100V ~ 240V, 50Hz/60Hz, DC 5V/2A
US
EU

USB cable

Type-C USB cable 5p l=1.2m 4-core with aluminum foil and screen

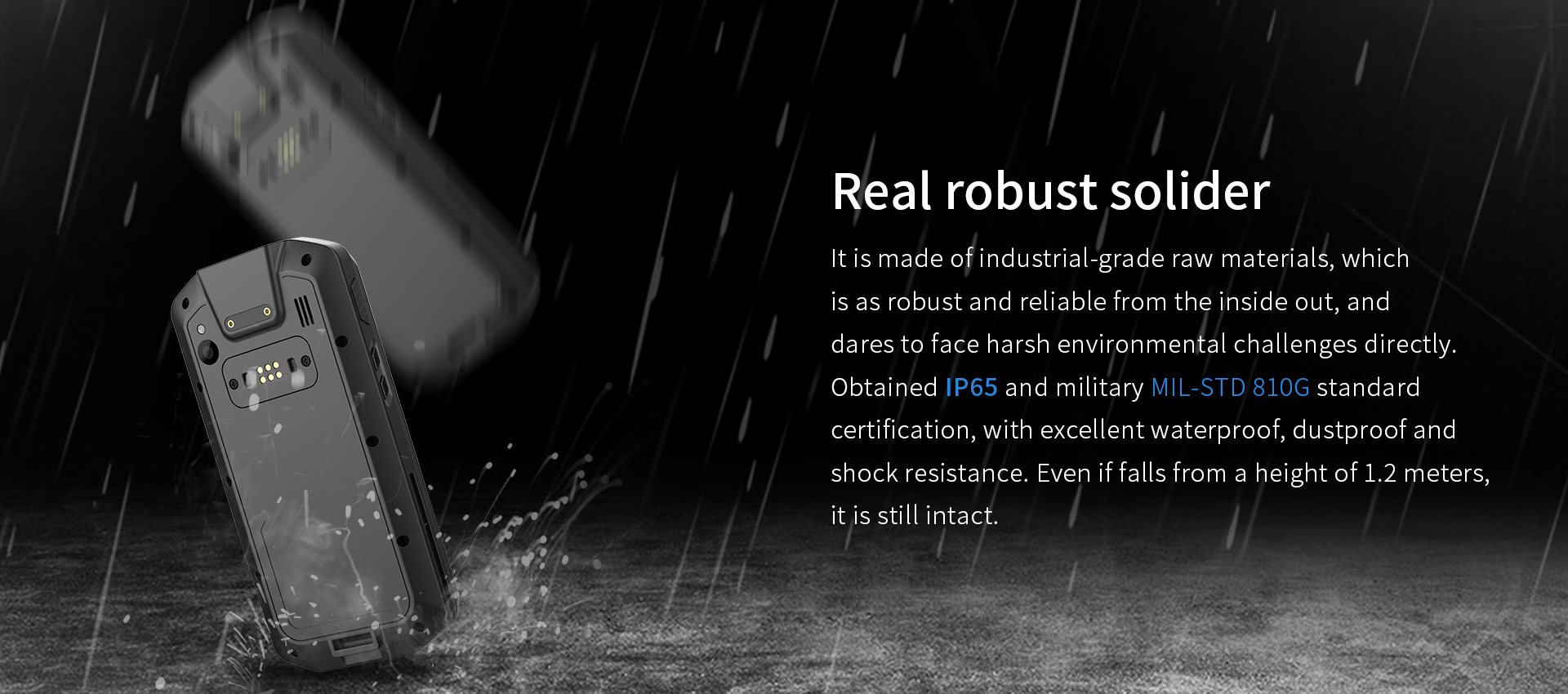

Rugged Features

Drop height: 1.2m Composite wood floor working

Working temperature: -10 °C to 50 °C

Storage temperature: -20 °C to 60 °C

Humidity: 95% Non-Condensing

Certification

IP65
IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X  Report ID no.：SET2015-07677
a.Inner Nozzle diameter：6.3mm；   b. water speed：12.5±0.625L/min；
c. Water Pressure：adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel：about 1min；f.test time：at least 3min；
g.distance between nozzle and panel surface：2.5～3m。
After test，there is no water leakage in sample.

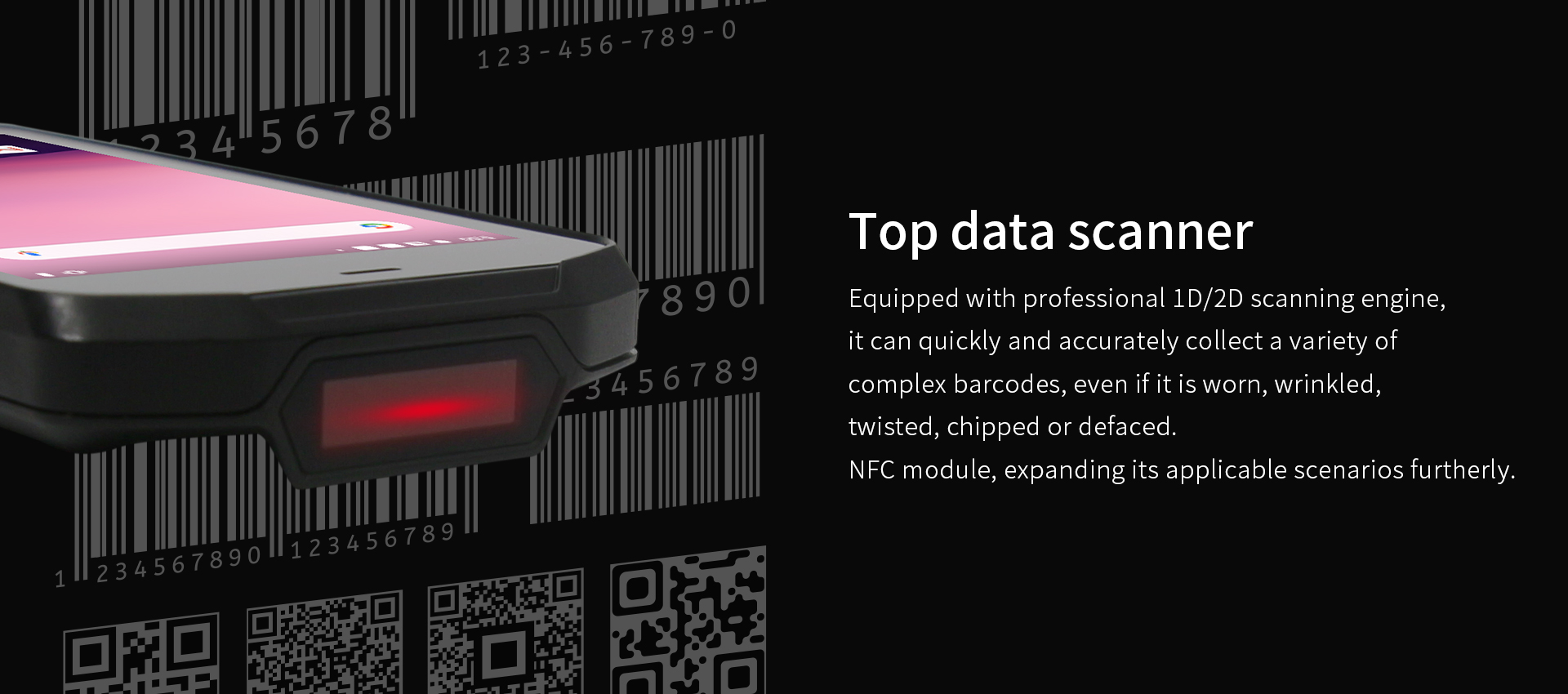

Data Collection

2D Barcode Scanner
Zebra4710
