Tech Spec

Product Form

PDA Terminal

Material

ABS+PC

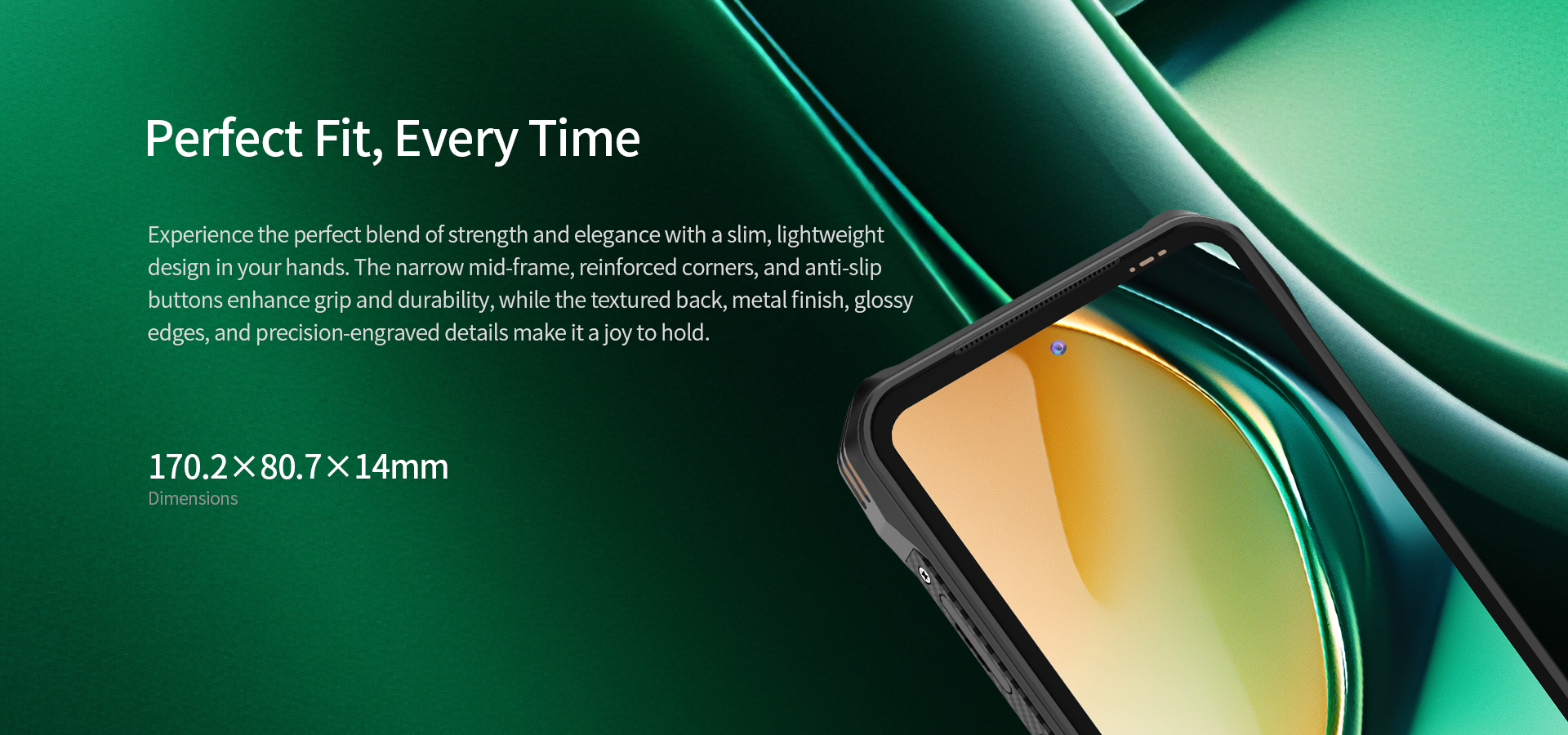

Dimension

170.2*80.7*14mm

Weight

About 311g

Product Color

Black+Orange

CPU

MT6789
Octa-core, two cores of 2.2GHz + six cores of 2.0GHz
2*A76  2.2GHz
6*A55  2.0GHz

GPU

ARM G57 MC2

Memory

RAM 8GB  LPDDR4X         ROM  128GB UFS2.2   (Optional 8+256GB for batch order)

Operating System

Android 14/ GMS

Display

Type: TFT
Size: 6.56-inch   20:9
Resolution: 720*1612
Brightness: 670 Nit
Support wet hand and glove touch

Touch Pannel

PolyRainbow Cover, 5-point capacitive screen, Hardness above 7H, Scratch-resistant.

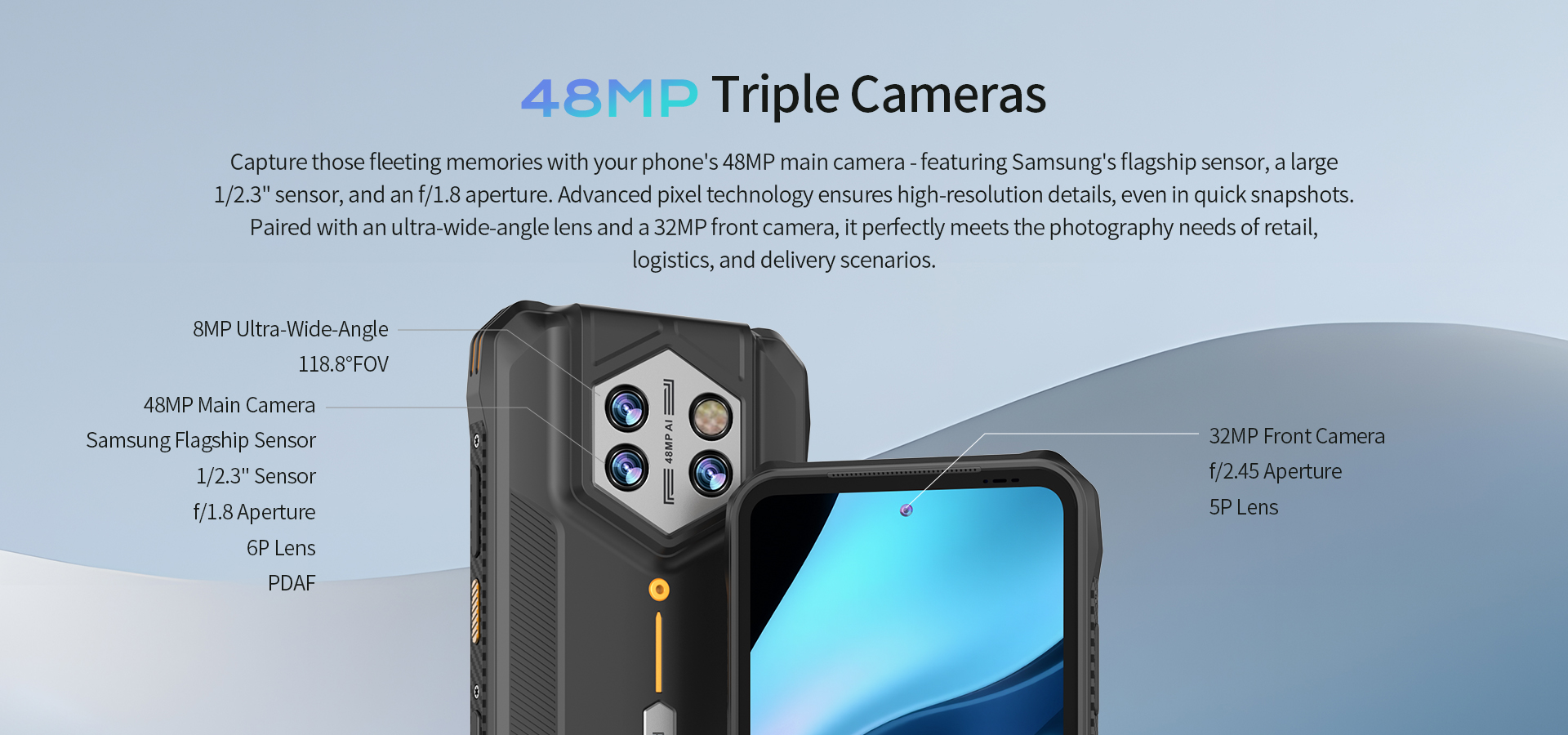

Camera

Front 32MP, Fixed Focus
Rear Main Camera 48MP, Autofocus, Supports PDAF
Rear Secondary Camera 8MP Wide-angle

Flashlight

True Flash

Buttons

Power & Fingerprint *1
Volume + Key *1
Volume - Key *1
Barcode Scanning Key *2 (Barcode scanning by default)

Indicator Light

Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging.

Audio

Speaker*1 7Ω/1.5W
Earphone*1
Dual-MIC
Motor*1
Audio SMART PA

Sensor

Light Sensor
Proximity Sensor
3D Accelerometer
Geomagnetic Sensor
Gyroscope
Gravity Sensor

Battery

Built-in Polymer Lithium-ion Battery
3.85V/5800mAh
Charging Power: 33W/PD 3.0 PPS Protocol
Battery Life: About 17h24min (Default 70dB volume; Default 300nits screen brightness; Playing 1080P HD video)
Charging Time: About 1h50min

WIFI

WIFI 802.11(a/b/g/n/ac)   Frequency 2.4G+5.0G Dual-band WIFI, Supports AP seamless roaming

Bluetooth

BT5.1 (BLE) class1  Transmission Distance: 30m

4G

GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66)

GPS

Supports GPS/Beidou/Galileo/GLONASS
Supports AGPS
Cold Start Time: <60 seconds

I/O Interfaces

Type C *1 (Charging/Data/Earphone/Reverse Charging 6W)

TF Card*1
SIM Card *2                                            2 of 3 card slot (Micro Sim+TF or Micro Sim+Nano Sim)

Pogo Pin (Charging) *1

Power Adapter

33W Fast Charge Adapter

Type-C Cable

Type-C Data Cable（1m）

Rugged Features

Drop Height: Withstands drops from 1.5 meters onto composite wood flooring, while powered on.

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Humidity: 95% Non-Condensing

Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV

OVP: Threshold 12V

EOS: VBUS 300/80us         VBAT 300v/20us

Certifications

IP68

CE

CCC

FCC

MIL-STD-810H

Data Collection

Fingerprint
Power On/Off & Fingerprint 2-in-1

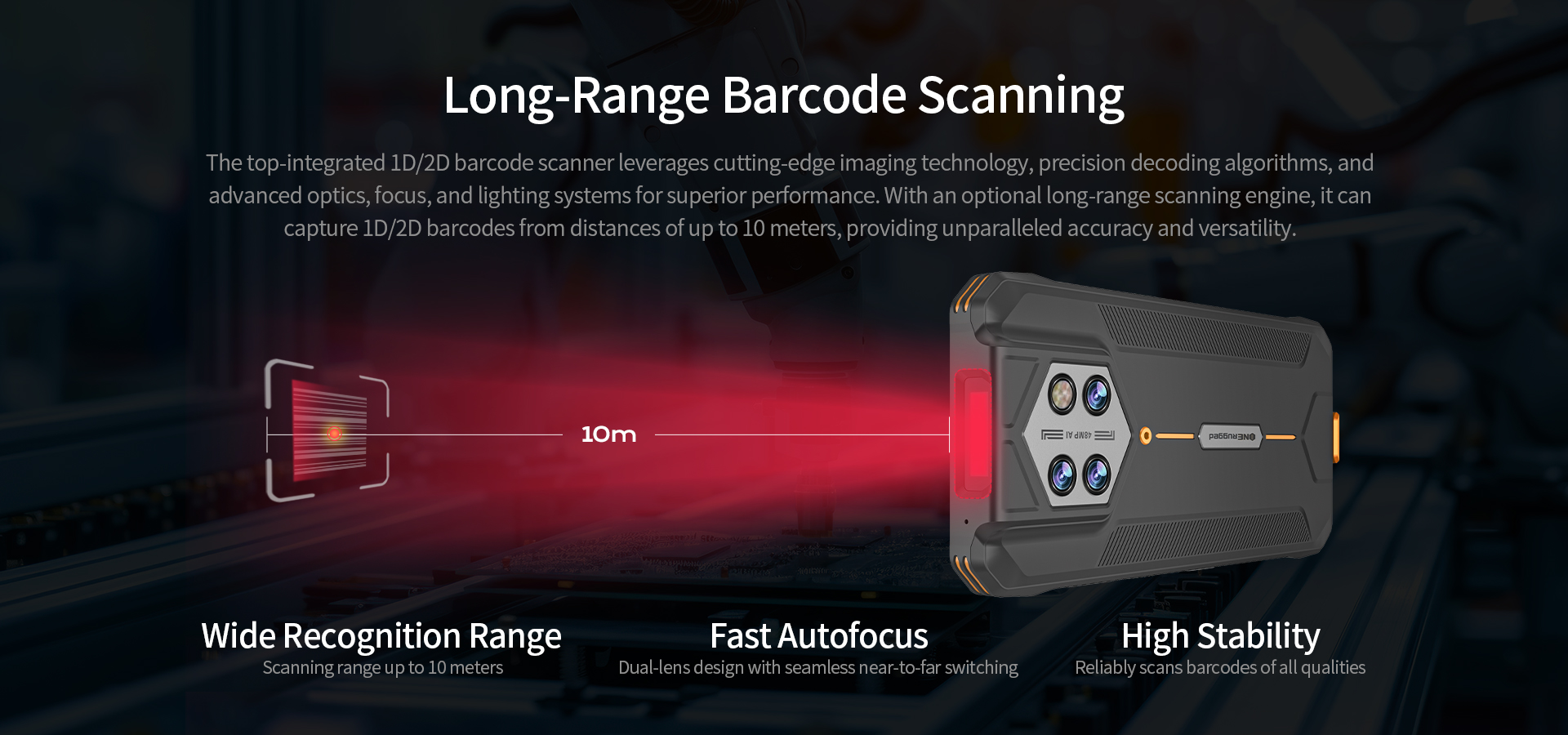

QR Code
Standard Zebra 4710, Compatible with Newland CM60 and Honeywell 6803FR (long-range scanner).

NFC
Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance，Card reading distance from 0 to 4 cm; Frequency:13.56MHz

Accessories

Hand Strap (Standard)

33W Fast Charge Adapter (Standard)

1m Type-C Cable (Standard)

Tempered Glass Film (Optional)

Docking Charger 5V2A (Optional)
