model

BOX-DB04

system

processor

Intel® Core 7th Generation

i3/i5/i7

Intel® Core 10th Generation

i3/i5/i7

Intel® Core 12th Generation

i3/i5/i7

Intel® Celeron J6412/  Intel® Alder Lake_ N97

Memory

1*SODIMM memory slot, supports

DDR3L/DDR3,

maximum support 32GB

2*SODIMM memory

slots, support DDR4

dual-channel memory, maximum support

64GB

2*SODIMM memory

slots, support DDR4

dual-channel memory, maximum support

64GB

1*SODIMM memory slot, supports DDR4, maximum support

32GB

storage

1* M.2 2280 Key-M slot (supports SATA SSD and NVME SSD adaptive)

1*SATA (supports 2.5- inch hard disk)

1* M.2 2280 Key-M slot (supports SATA SSD and NVME SSD adaptive)

1*SATA (supports 2.5- inch hard disk)

1* M.2 2280 Key-M slot (supports SATA SSD, customizable NVME SSD)

1*SATA (supports 2.5- inch hard disk)

1* M.2 2280 Key-M slot (supports SATA SSD)

1*SATA (supports 2.5- inch hard disk)

BIOS

AMI UEFI BIOS

chipset

Intel® SoC

show

Integrated Intel® UHD Graphics

Support HDMI, LVDS, maximum display resolution 3840x2160

network

2*RTL8111H Gigabit Ethernet ports, support network wake-up/PXE

Front I/O

interface

1*2PIN Phoenix terminal, supports 12V voltage input, optional 9-36V wide voltage input 1*button switch with light

1*HDMI

4*USB3.0

2*LAN

1*SIM card slot

2*COM (COM1/COM2 optional RS232/RS485)

Rear I/O interface

2*WIFI antenna holes

2*USB2.0

1*audio two-in-one (audio output/microphone voice input)

4*COM (COM3-COM6 support RS232)

1*CMOS Clear button (can clear BIOS settings and restore to factory default state) 8*GPIO (providing digital input and output) + SW (start button external interface)

Extensions

1*Mini-PCIE slot, support 4G/5G module (optional)

1*M.2 2230 (WIFI/BT module)

Watchdog

255 levels of programmable seconds/minutes, supporting timeout interrupt or system reset

operatin

g

system

operating system

Windows 10/Windows 11/Linux operating system

environ

ment

Operating

-10℃~60℃

Storage

-20℃~75℃

relative humidity

5%-95% relative humidity, non-condensing

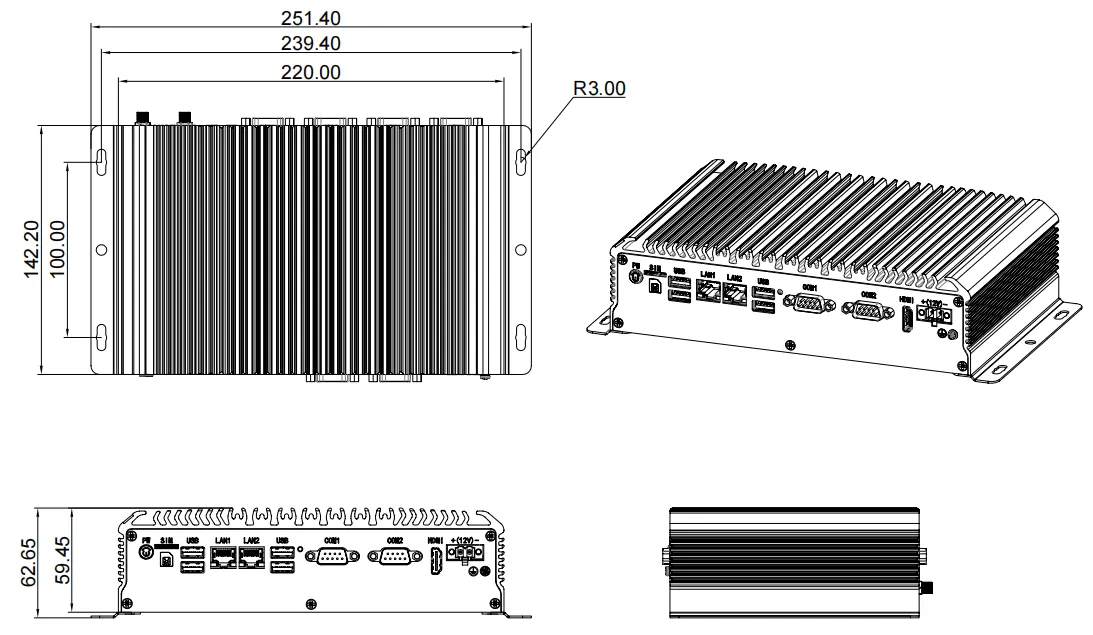

body

Weight (bare

1.43kg

color

Gun Ash

Shell material

Aluminum profile housing

Install

Support wall-mounted/embedded/desktop installation
