BOX-DB03

Home  >  Products  >  Industrial PC BOX  >  BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03
BOX-DB03

BOX-DB03

Datasheet
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Images

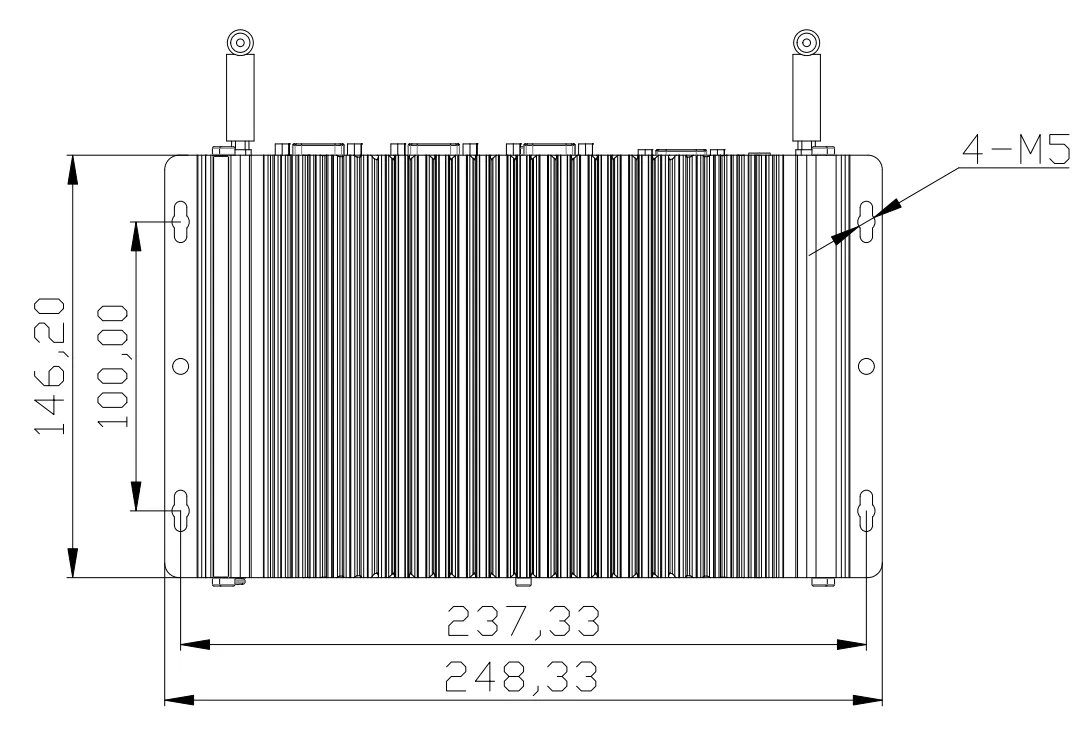

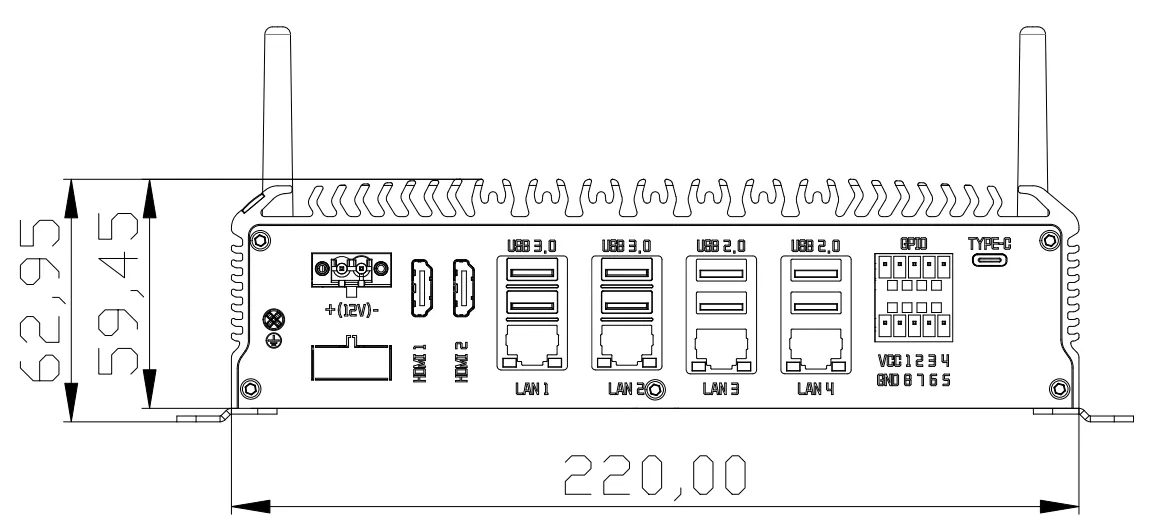

Product Dimension Drawing
Product Parameters

Basic parameters

processor

Supports 7th/10th generation Intel Core (i3/i5/i7) U-series high-performance processors

BIOS

AMI UEFI BIOS



Memory

2* Laptop memory card slots

The 7th generation series supports a maximum of 32GB, and the 10th generation series supports a maximum of 64GB.

show

2*HDMI, 1*VGA (integrated graphics)

harddisk

1*M.2 2280 SSD hard drive slot

1 x 2.5-inch hard drive bay (optional)

wireless

network

1*M.2 socket (supports WiFi )

1*MINI-PCIe socket (supports 4G module)











Front

panel I/O

DC 12V 2PIN input

2*HDMI

4 USB 3.0 ports

4 USB 2.0 ports

4*LAN (Intel network card chip)

1*TYPE-C

8-way GPIO

1* Optional DC9-36V wide voltage input position (optional)









Rear

panel I/O

1* Power switch + indicator light

1* Audio output + microphone voice input

1*SIM card slot

2* Reserved 4G module antenna holes

1*VGA

2* Reserved WIFI antenna holes

6*COM (COM1-COM4 can be RS232/RS485, COM5-COM6 are RS232)

Watchdog

255-level programmable seconds/minute

operating

system

Windows/Linux

Work

environme

nt

Operating temperature/humidity requirements: -10℃ to 60℃, 5% to 95% non- condensing humidity

Non-operating temperature/humidity requirements: -20 ℃ to 75℃, 5% to 95% non-condensing humidity.

Optional

configurati

on

i3/i5/i7 7th generation CPUs

i3/i5/i7 10th generation CPUs
Interface Layout

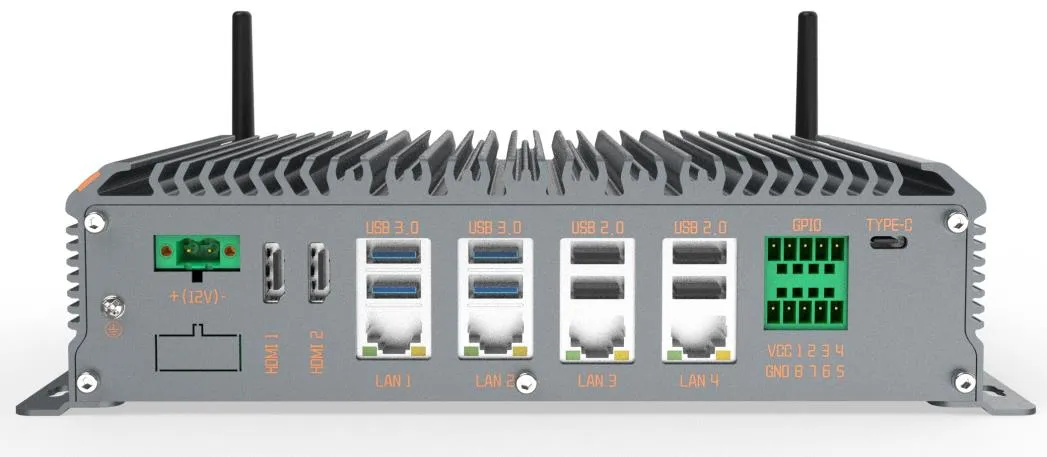

Front panel interfaces

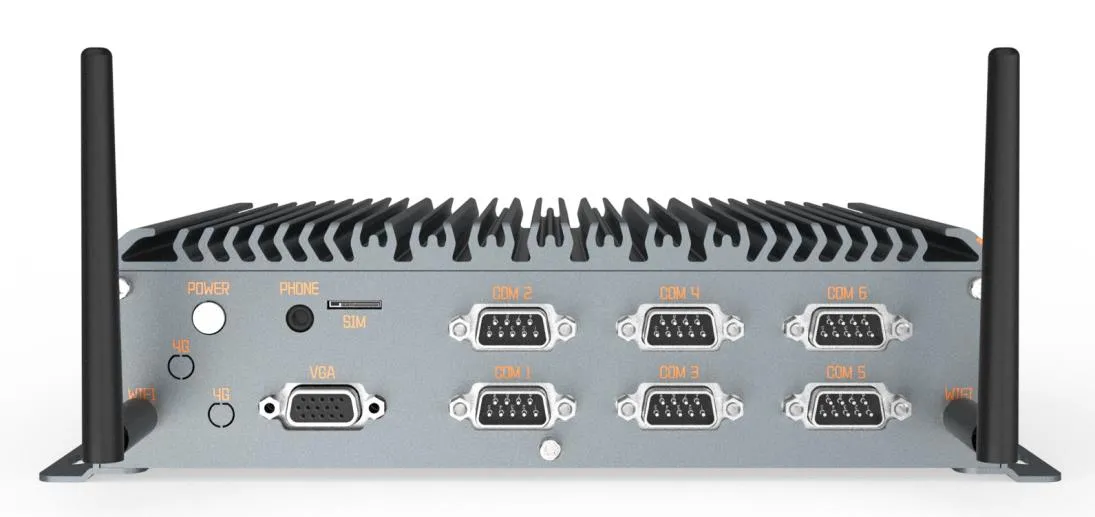

Rear panel interfaces

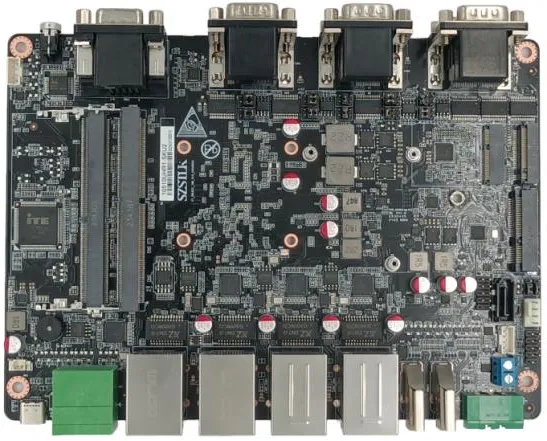

Custom industrial motherboards
Custom motherboard form factor,
surge protected Anti-static and
other design features effectively
reduce static electricity.
Electromagnetic interference signal
enhancement in the road
Reliability and stability.
Product Statement
Copyright Notice
      The contents of this manual are protected by copyright. No part of this manual may be reproduced mechanically, electronically, or otherwise without permission.
Disclaimer of Liability
      Our company assumes no responsibility for the loss or damage of personal data caused by software or hardware malfunctions, product repairs, battery replacements, or other unforeseen circumstances, nor
for any other indirect losses arising therefrom. Furthermore, we cannot control potential misunderstandings of this manual by users; therefore, our company will not be liable for any accidental losses that may occur during the use of this manual, nor for any third-party claims arising from the use of this product.
      The functional information in this manual is subject to the product itself. Changes to this information will not be notified separately. The company reserves the right to the final interpretation of this manual, warranty certificate, and related documents.
Safety Tips
1. Please read the product instruction manual carefully before using the product.
2. please make sure all data cables and power cords are properly connected before using the product .
3. When connecting or disconnecting any device, ensure that all power cords are disconnected before the signal cable is connected.
4. please ensure that all power cords are disconnected before connecting or disconnecting any data cables from this module .
5. Do not pull, bend, or place heavy objects on the power cord, or cause any damage to the power cord, as this may cause a fire or electric shock.
6. Please ensure that the correct power supply voltage is set, otherwise it may cause personal injury or system damage.
7. To avoid short circuits, keep paperclips, screws, staples, and other similar items away from connectors/interfaces, slots, sockets, and circuits.
8. Do not use the equipment in damp or dusty environments, or in environments where the system or equipment may come into contact with oil, steam, etc., otherwise it may cause a fire.
9. Ensure that the equipment does not come into contact with water or other liquids, and check for any other objects such as paperclips or pins left in the system, as these may cause electric shock.
10. To avoid damage to the system or equipment, do not place the  equipment on unsafe surfaces or subject it to strong impacts or shocks that could cause it to fall or tip over.
11. If you encounter any technical problems with the use of this product, please contact a professional immediately .
Product Maintenance
Usage Environment
1．Operating ambient temperature range: -10 ℃ to 60 ℃ The working environment humidity range is 5%-95%RH.
2. Avoid using in environments with extremely high or low temperatures.
3. Keep away from wall-mounted electrical wells and large transformer environments.
Cleaning Precautions
1. Do not use a damp cloth containing water, alcohol, or other liquids for cleaning.
2. Always turn off the system and power before cleaning, and unplug the power cord.
