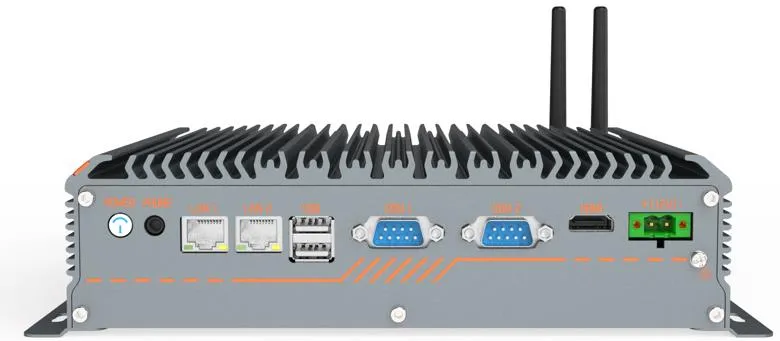

Product Image

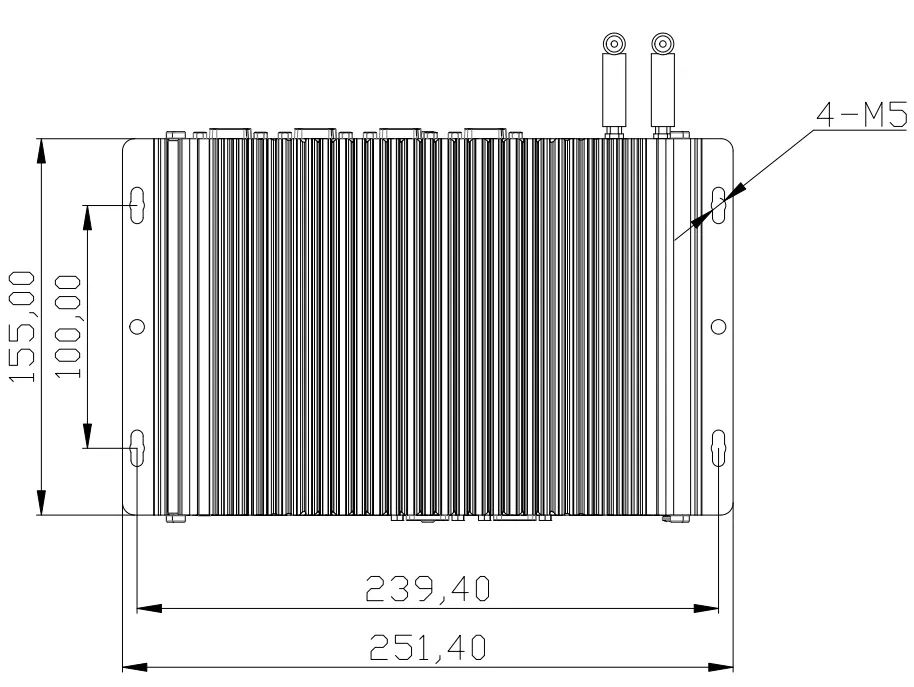

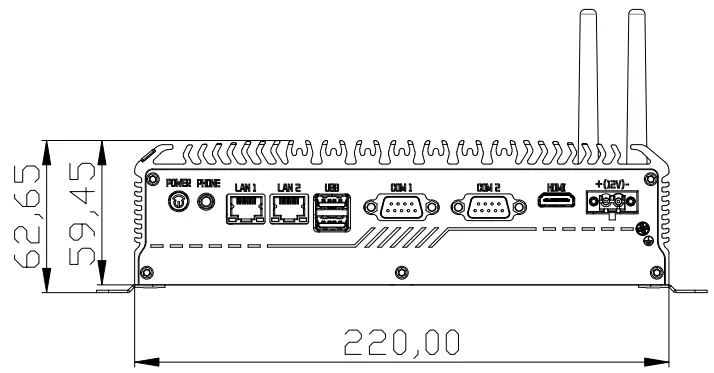

Product Dimensions
Product Parameters
| Basic parameters | |
| processor | Support Core (I3/I5/I7) 7th generation/10th generation U series high-performance processors |
| BIOS | AMI UEFI BIOS |
| Memory | 7th generation series:1 notebook memory card slot,10th generation series:2 notebook memory card slots |
| The 7th generation series supports up to 32G,and the 10th generation series supports up to 64G |
|
| show | 1*HDMI(core graphics) |
| harddisk | 1*M.22280 SSD hard drive slot |
| 1*2.5-inch hard disk slot(optional) | |
| Wireless network |
1*M.2 socket(supports WiFi) |
| 1*MINI-PCIE socket(supports 4G module) | |
| Front Panel IO |
DC 12V 2-pin input |
| 1*HDMI | |
| 2*USB3.0 | |
| 2*LAN | |
| 1*audio two-in-one(audio output +microphone voice input) | |
| 1*Start switch +indicator light | |
| 1*Optional DC9-36V wide voltage input (optional) | |
| 2*COM(COM1-COM2 optional RS232/RS485) | |
| Rear Panel IO |
2*USB2.0 |
| 4*COM(COM3-COM6 are RS232) | |
| 2*reserved WIFI antenna holes | |
| 2*reserved 4G module antenna holes | |
| Watchdog | 255 levels of programmable seconds/minutes |
| operating system |
Windows /Linux |
Work Environme nt |
Working temperature/humidity requirements:-10℃~60℃,5%~95 % non-condensing |
| Non-operating temperature/humidity requirements:-20 ℃~75℃, 5%~95%non-condensing |
|
| Optional Configurati on |
I3/I5/I77th generation CPU |
| I3/I5/I710th generation CPU | |
Interface Layout
Front panel int

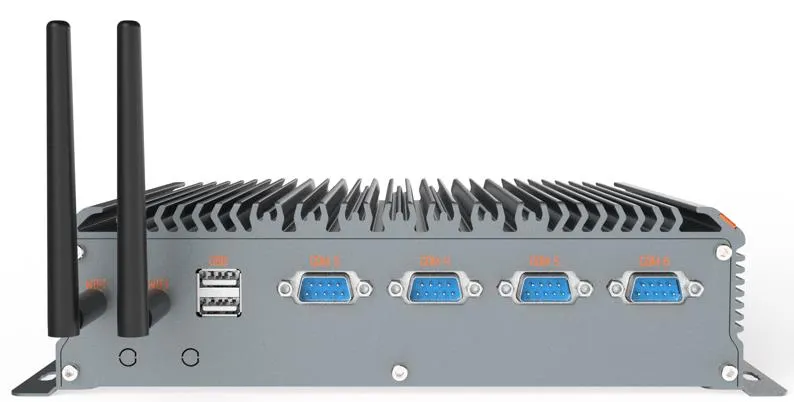

Rear panel connector

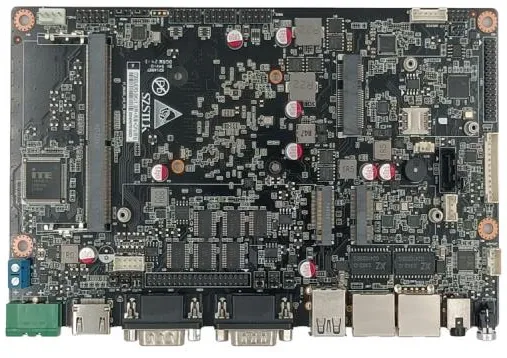

Customized industrial motherboard
Customized motherboard layout to protect
against surges Anti-static design effectively
reduces static electricity Electromagnetic
interference in the road, enhanced signal
Reliability and stability of the signal
Product Maintenance
Usage Environment
1．Working environment temperature range -10℃-60℃ , The working environment humidity range is 5%-95%RH.
2. Avoid using in extremely high or low temperature environments.
3. Keep away from weak current wells in walls and large transformers.
Cleaning precautions
1. Do not use a wet cloth containing water, alcohol or other liquids for cleaning.
2. Be sure to turn off the system and power before cleaning, and unplug the power cord.
