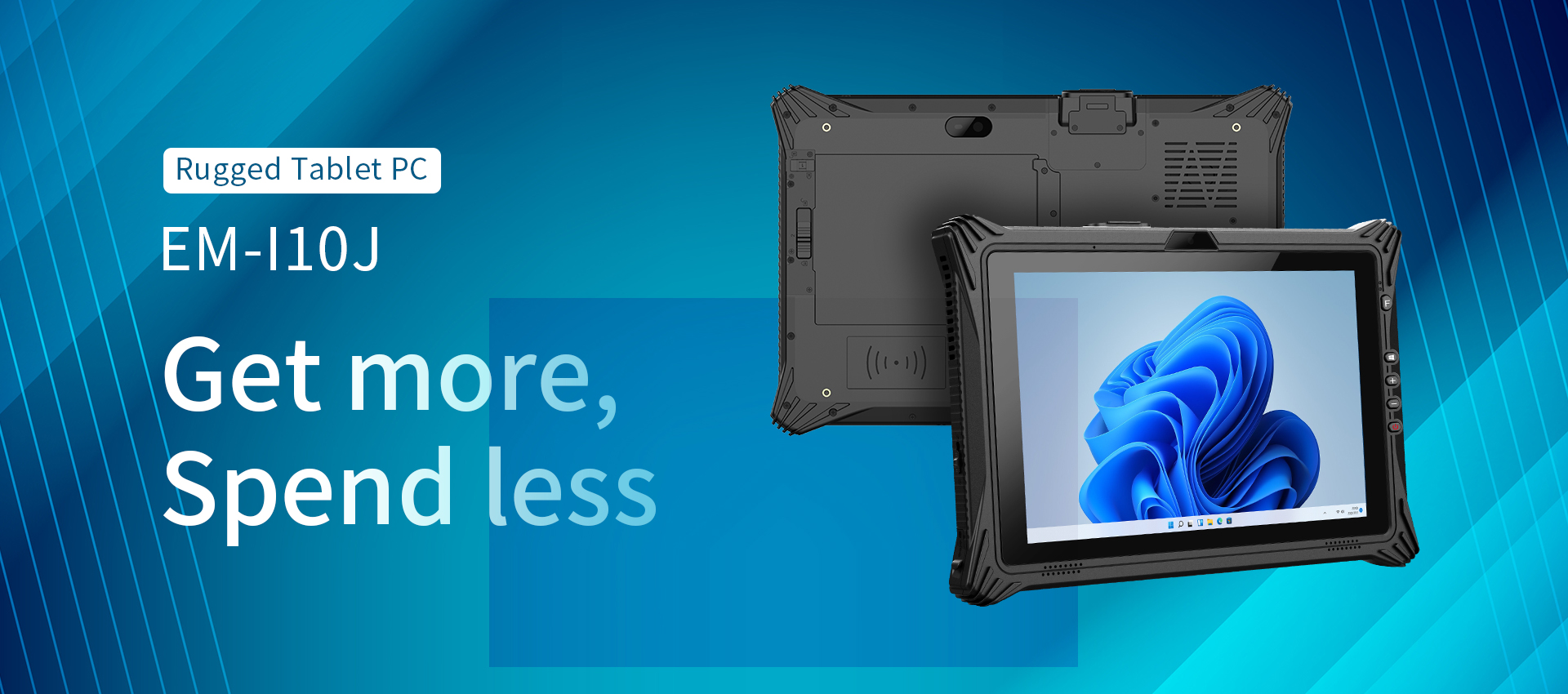

10.1 inch Rugged Tablet PC K10J

·Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet,DB9 and USB2.0 )
·Support GPS, BDS and GLONASS
·Equipped with multiple accessories, like docking charger,hand-strap, vehicle mount, carry handle

Datasheet

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Functions

Performance
·Intel Celeron quad-core processor (up to 2.90 GHz)
·Windows 11/10 OS and 16GB RAM＋128GB storage
·10.1 inch IPS Full HD screen with 10-point capacitive touch

Function
·Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet,DB9 and USB2.0 )
·Support GPS, BDS and GLONASS
·Equipped with multiple accessories, like docking charger,hand-strap, vehicle mount, carry handle

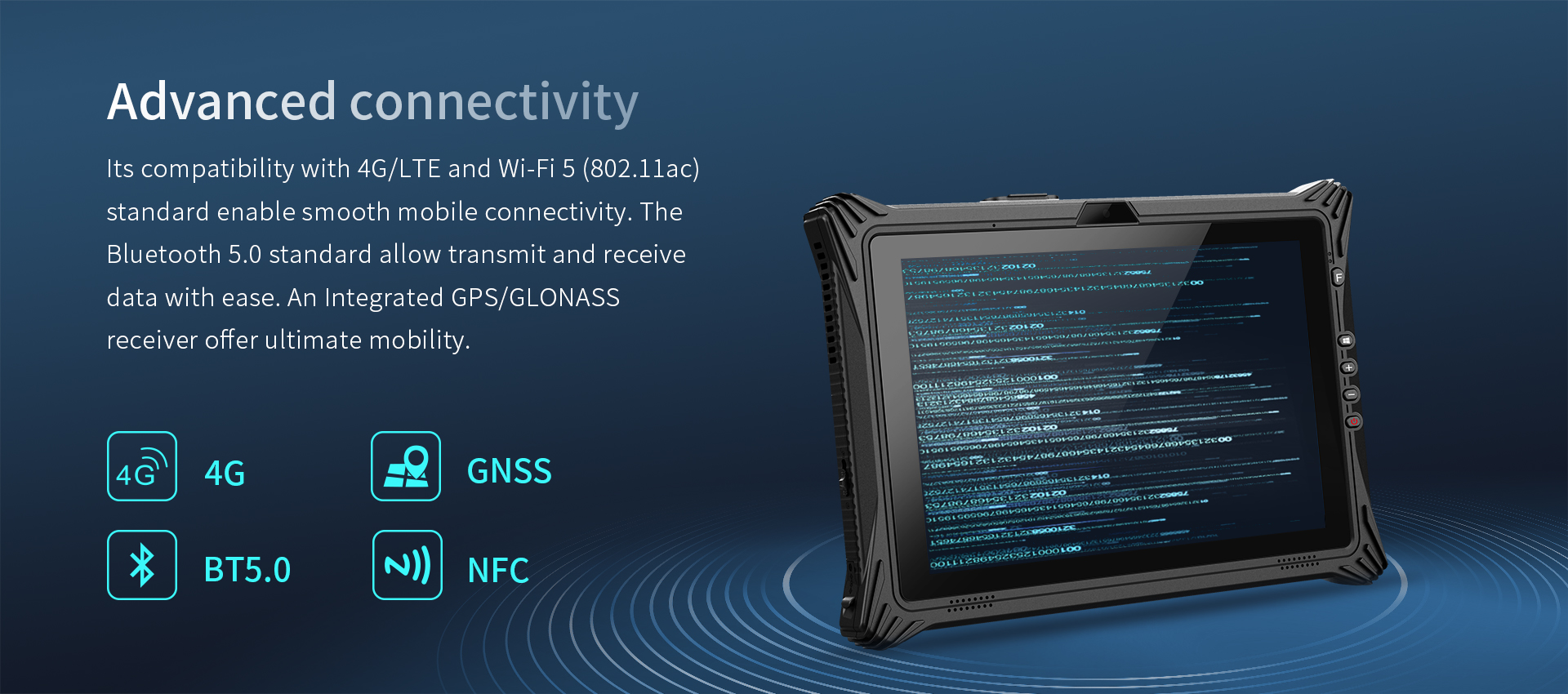

Communication
·2.4G+5.8G Dual band WIFI 6
·High speed 4G LTE
·BT 5.1 fast transmission

Reliability
·IP65 Waterproof and Dustproof
·Vibration & 1.22m drop resistant
·MIL-STD-810G certiﬁed

Speciﬁcation Parameter

Tech Spec
Product Form	10.1 inch Rugged Tablet
Material	PC+ABS
Dimension	289.9196.727.4mm
Weight	1190g
Product Color	Black
CPU	Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W
GPU	Intel® UHD Graphics 620

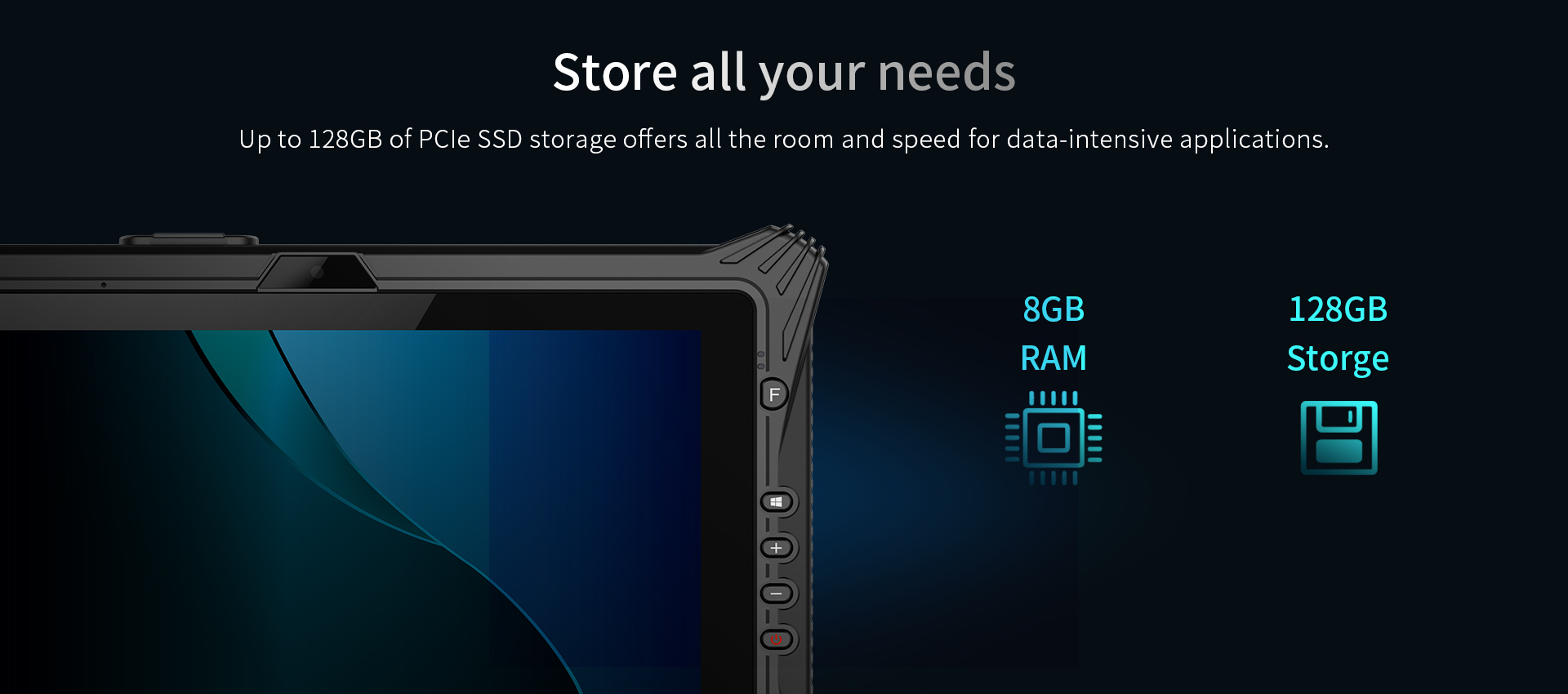

Memory	RAM 8GB DDR ROM 128GB SSD removable Optional: 16GB
Operating System	Windows 11 Home Optional: Windows 11 IOT Windows 11 pro

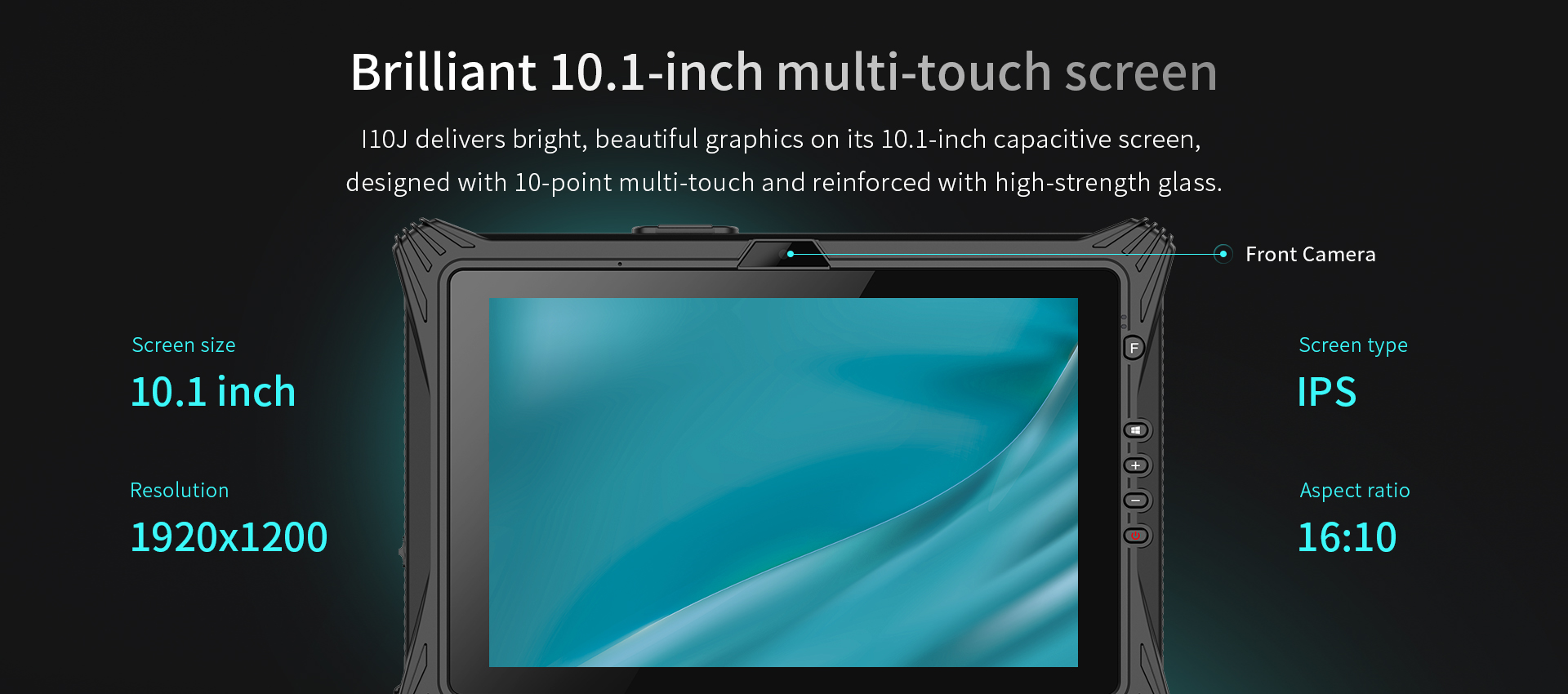

Display	Type: FHD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡
Touch Pannel	10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support 930 Proactive Pen
Camera	Front 5.0MP Rear 8.0MP -AF with flashlight
Buttons	Power 1 Volume Key + 1 Volume Key - 1 Windows Home 1 F Key *1 (Barcode Scanning, Customizable without barcode)
Speaker	8Ω/0.8W Waterproof Speaker *1
Microphone	Sensitivity: - 42db, Output impedance 2.2kΩ
Senssors	G_sensor

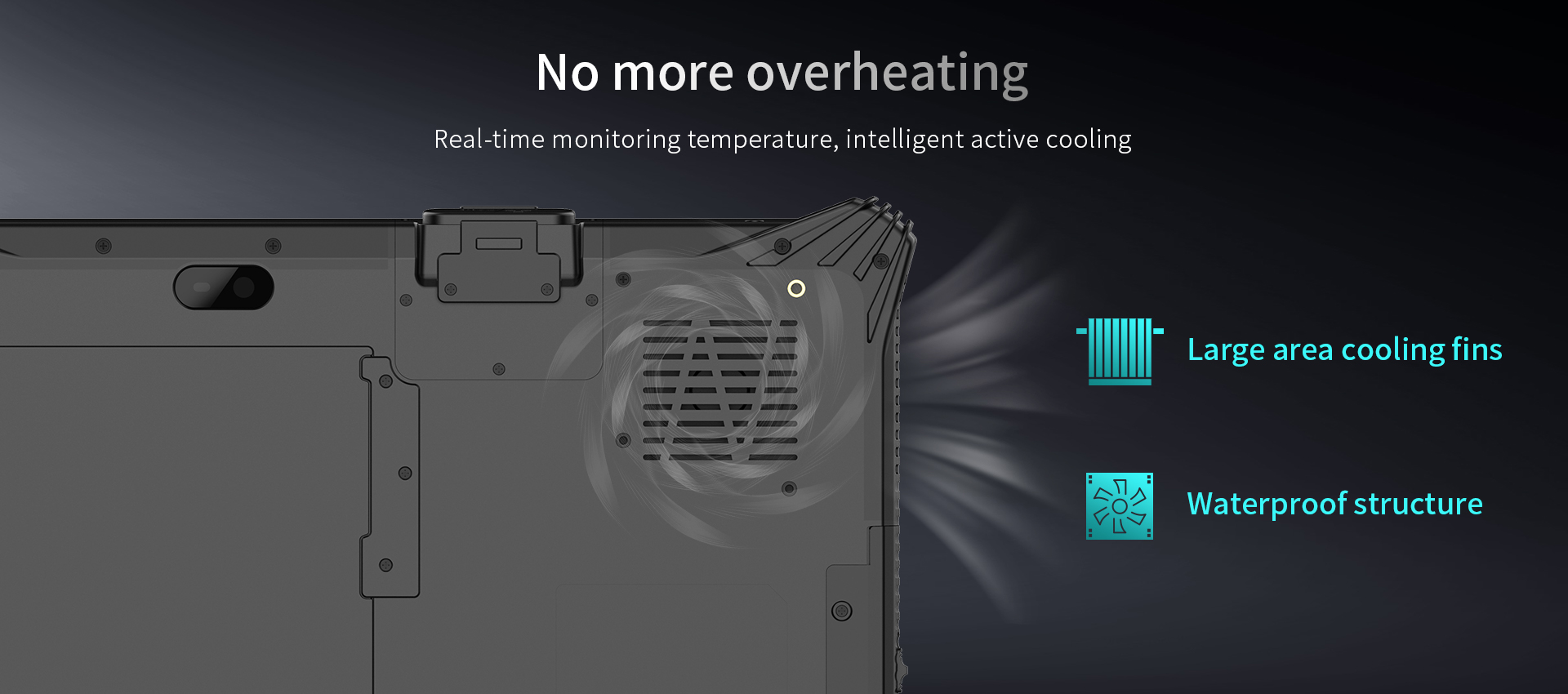

Fan	IPX5 Fan *1

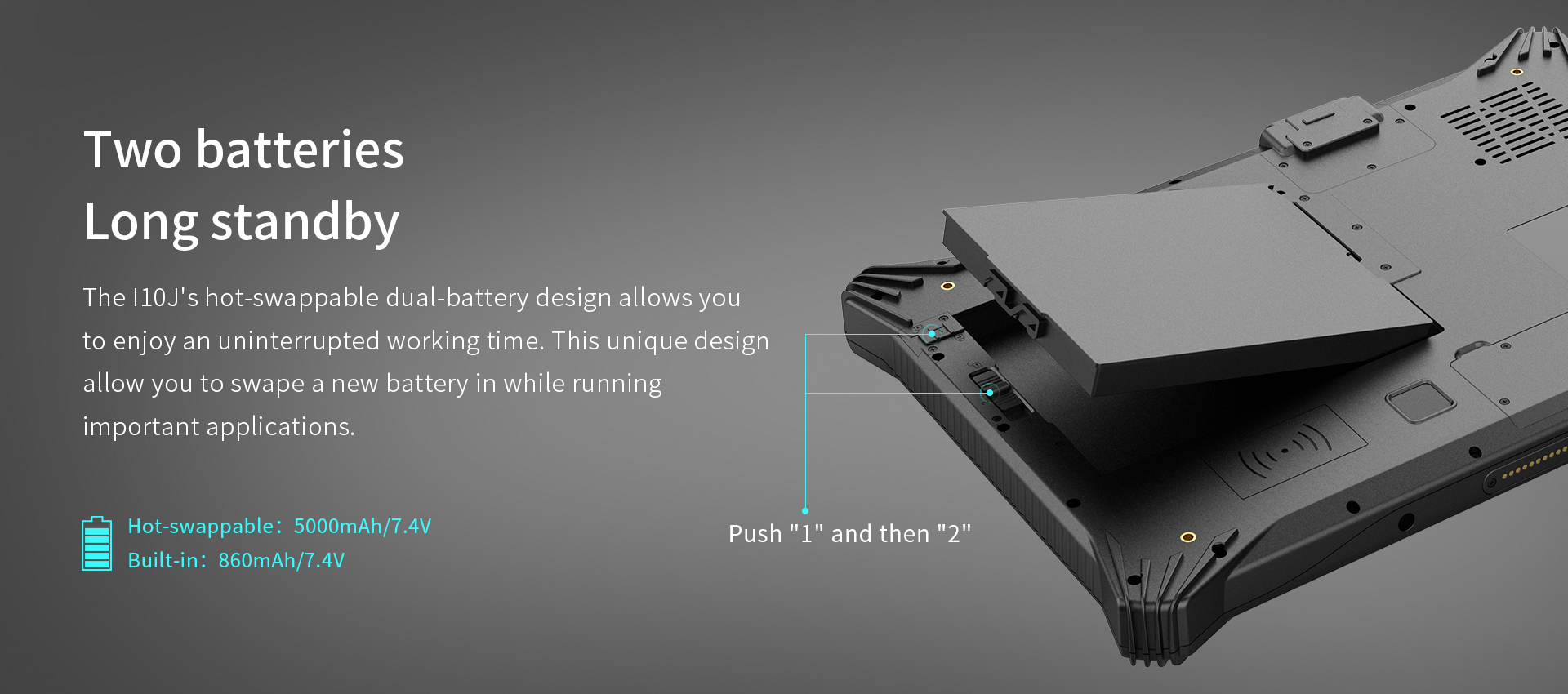

Small Battery	Build in Lithium-ion polymer battery, Non-removable 7.4V/860mAh
Big Battery	Removable Li-polyment Battery 7.4V/5000mAh 5.5h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
WIFI	Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
Bluetooth	BT5.0 (BLE) class1 Transmited distance：10m
4G	SLM750-VE LTE FDD: B1/B3/B7/B8/B20 LTE TDD:B40 WCDMA: B1/B5/B8 GSM: 900/1800 China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan
GPS	U-BLOX M7N Support: GPS, glonass

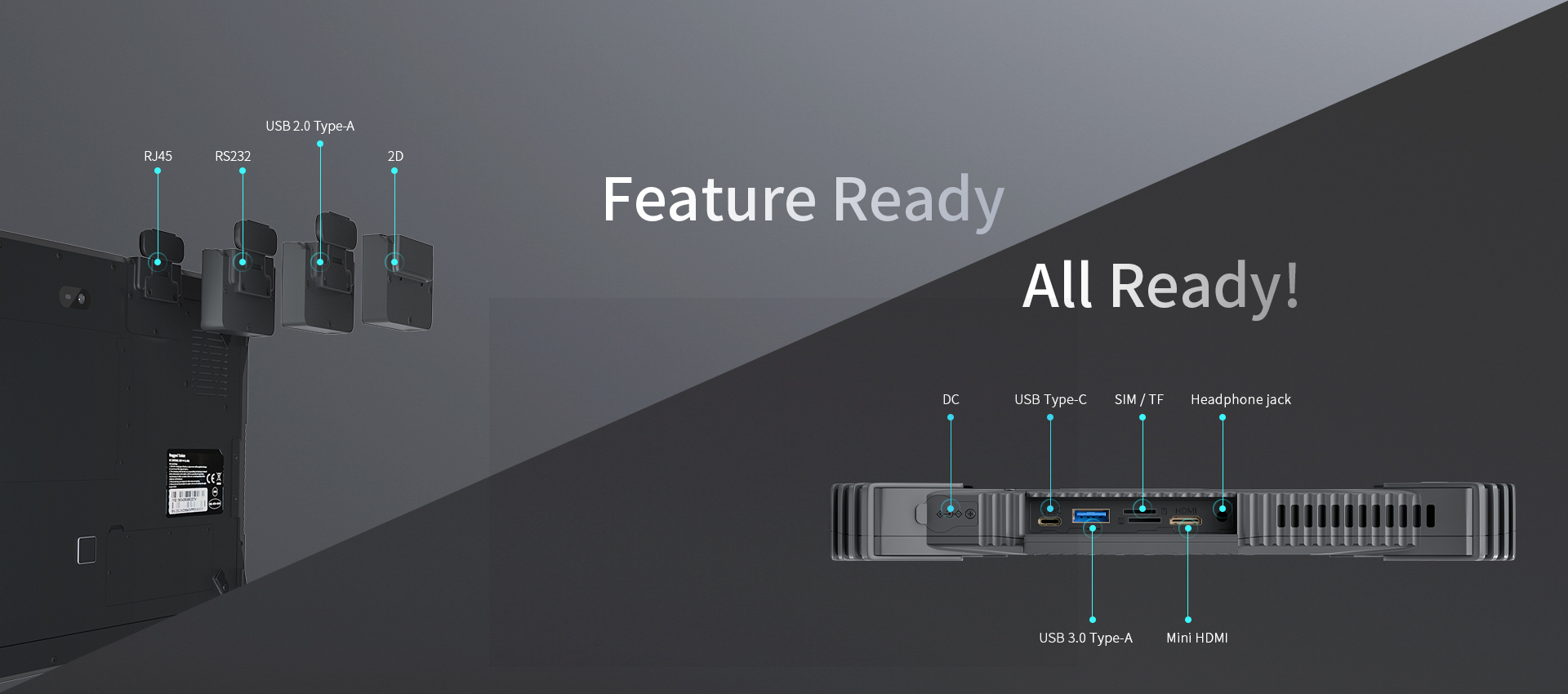

I/O Interface	USB3.0 *1
	Type C (USB3.0/HDMI/Charging) *1
	∮3.5mm Standard earjack *1
	HDMI 2.0a mini *1
	SIM card *1
	TF card *1，Max: 128GB
	DC 19V 3.42A ∮5.5mm jack *1
	12PIN Pogo Pin (USB/Docking charging) *1
Adapter	AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approval Optional: EU UK
Rugged Features	MIL-STD-810G: 1.22m drop
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing
Certification	IP65
	CE-NB
	CCC
	MIL-STD-810G
	Battery: UN3803, MSDS, IEC62133, aviation report, marine report
Data Collection	NFC Optional, NXP300 NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm
Data Collection	Fingerprint Built-in
Expansion Module	RJ45 board (Standard) (10/100M) Ethernet interface *1
	DB9 board (RS232) *1, 9-line full function
	USB2.0 USB2.0 *1, Big USB
	QR Code Scanner Honeywell N3680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s

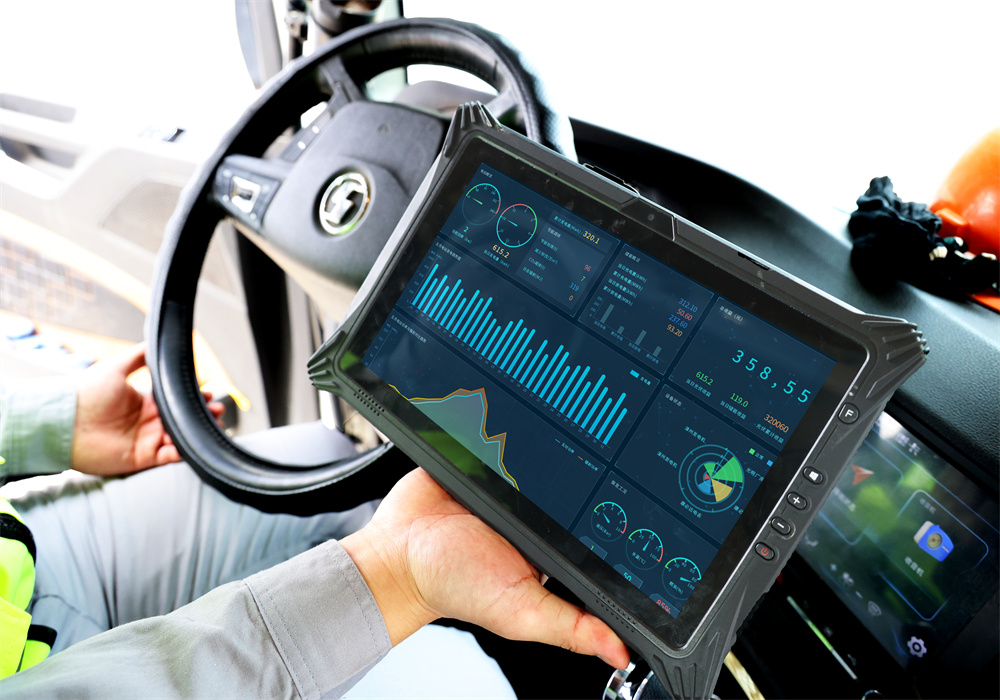

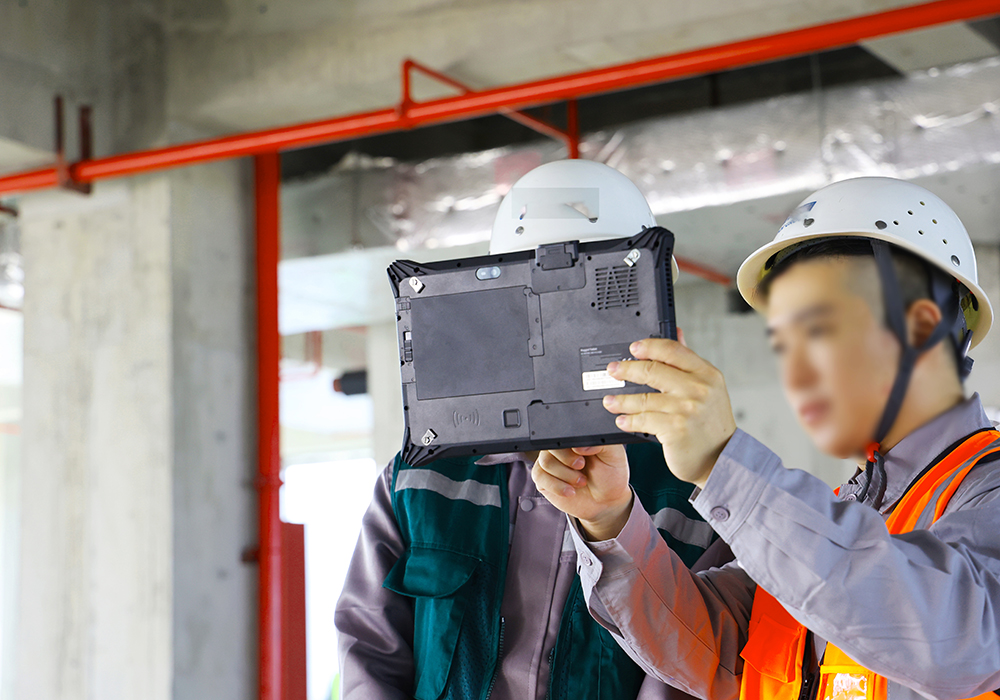

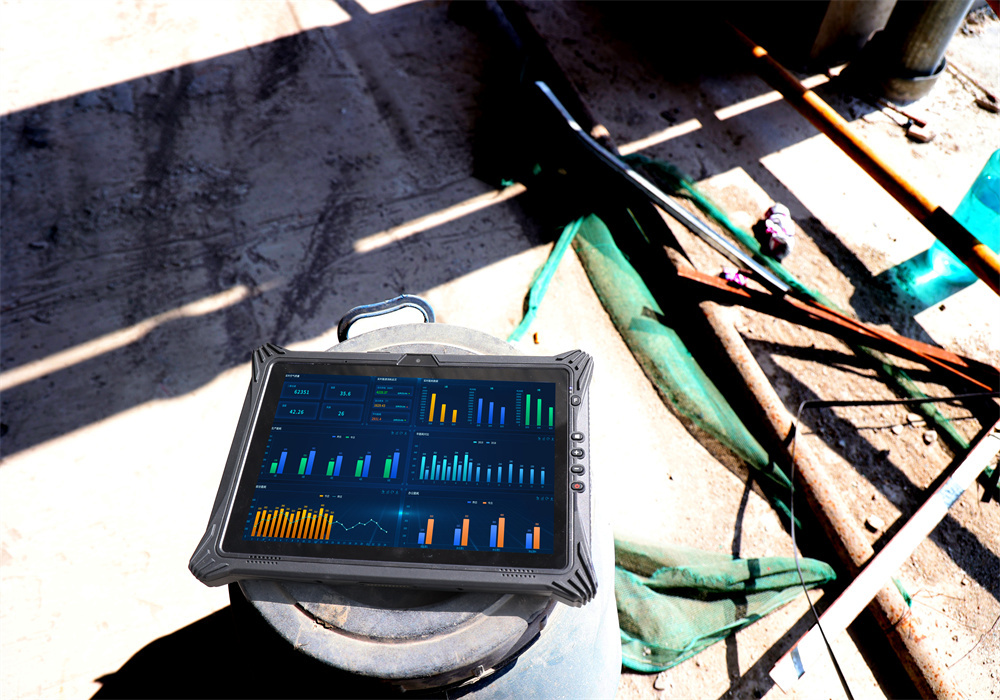

Application Scenario
