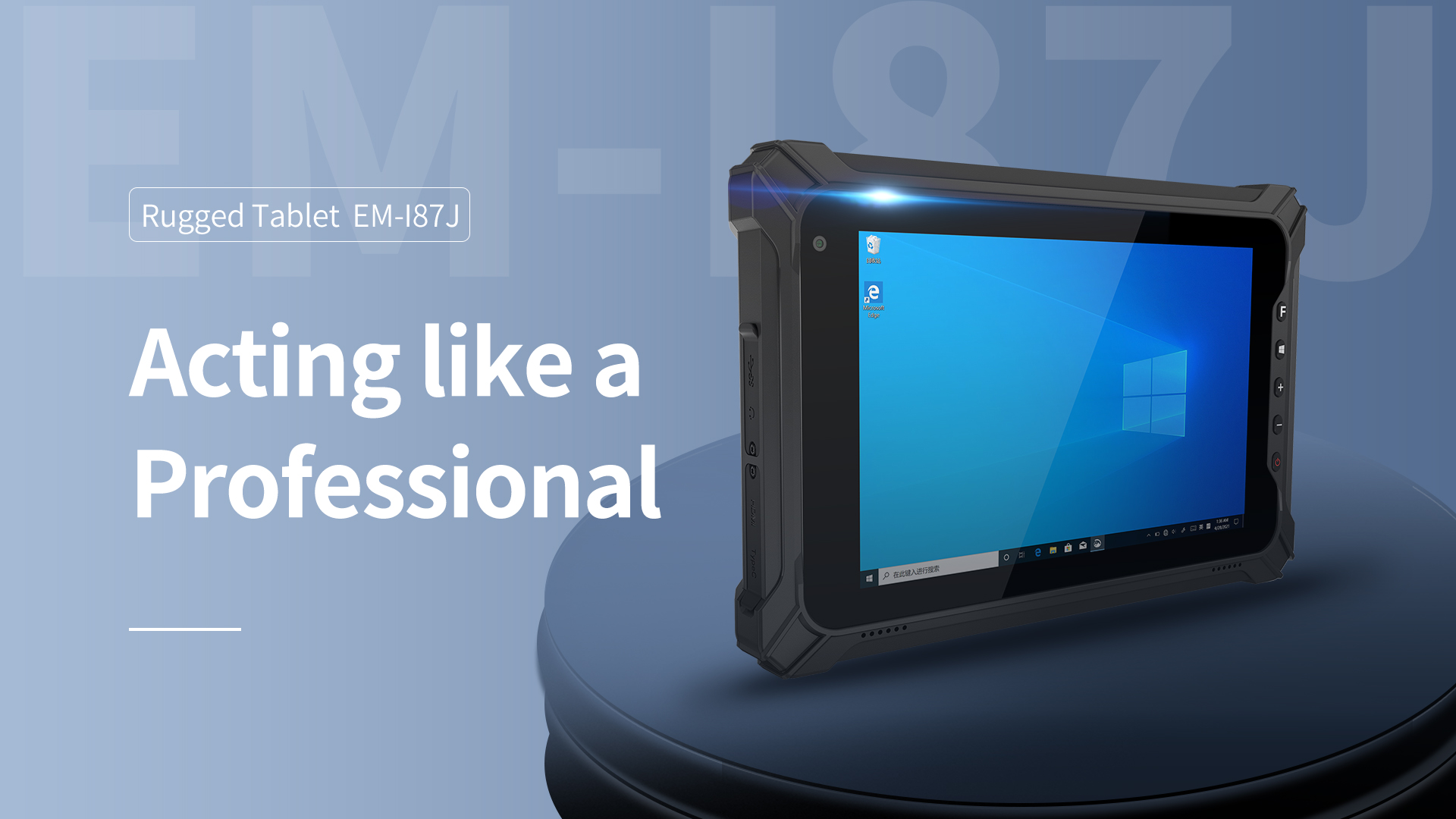

8 inch£¨ Rugged Tablet PC
·Front 5.0MP + Rear 8.0MP, autofocus with flashlight
·Symmetric speakers. More immersive, more clear
·User-friendly buttons designed for efficient action
·Intel Jasper Lake processor Celeron N5100

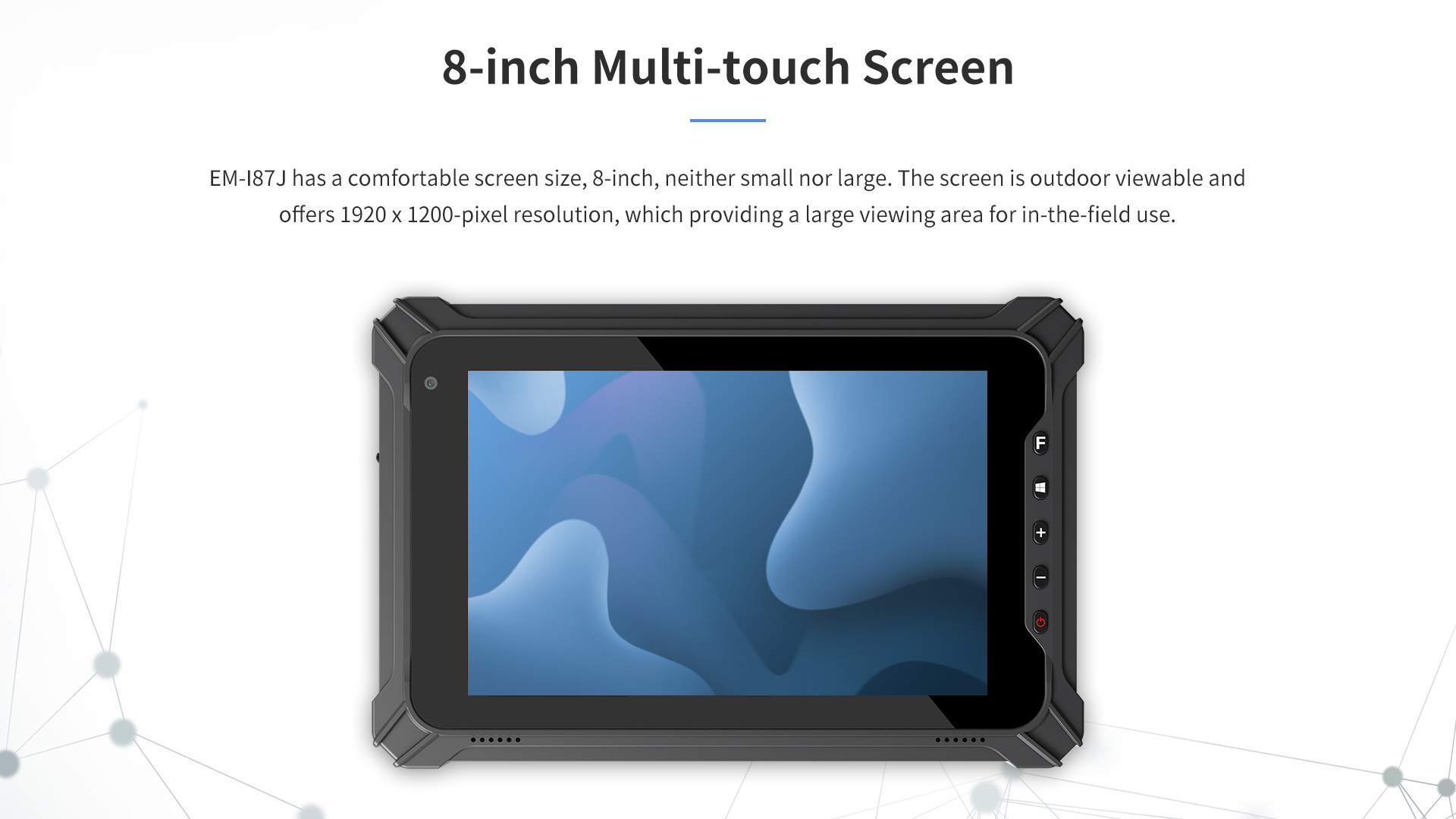

·8 inch IPS screen, 1920x1200 FHD, optional 700nits
·5-point capacitive touch

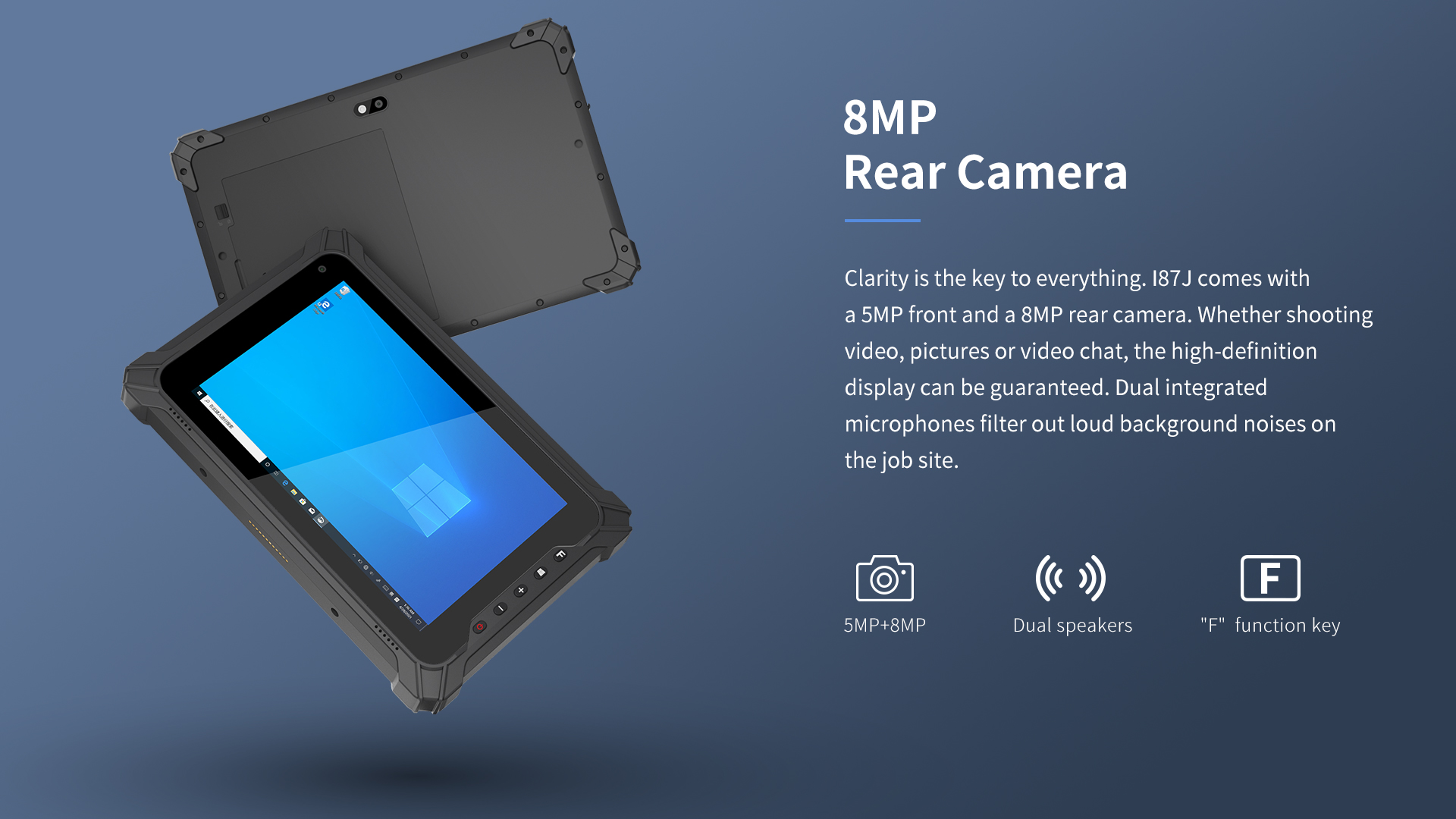

·Front 5.0MP + Rear 8.0MP, autofocus with flashlight
·Symmetric speakers. More immersive, more clear
·User-friendly buttons designed for efficient action

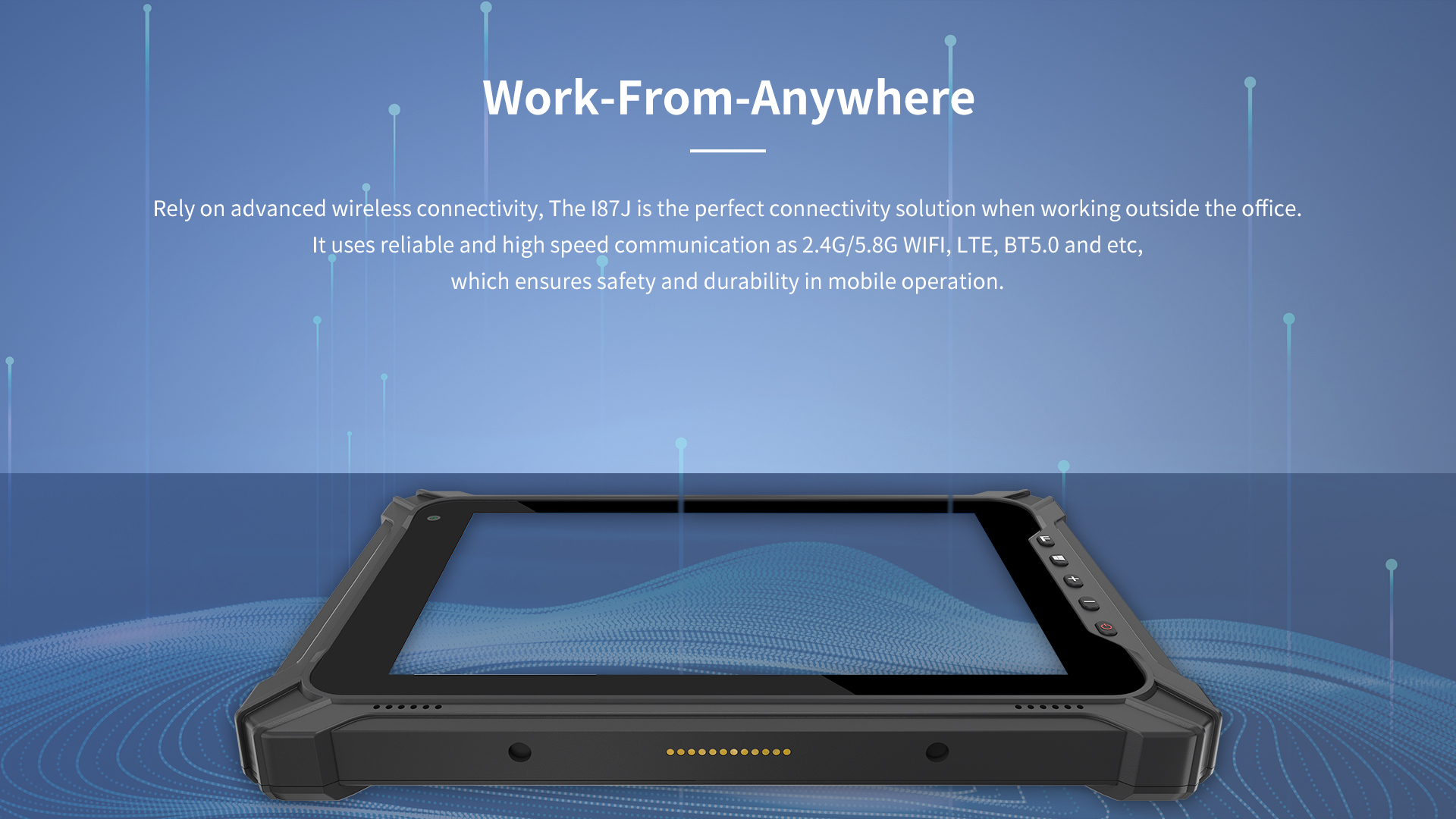

·High speed communication as 2.4G+5.8G WIFI,
4G LTE, BT5.0 and etc
·Efficient file transfer rely on advanced USB Type-A/Type-C
3.0/3.1 I/O port
·Optional high performance 2D imager designed to data capture
·Enhanced rugged corners withstand shock and impact
·IP65 Waterproof and Dustproof, MIL-STD-810G certified

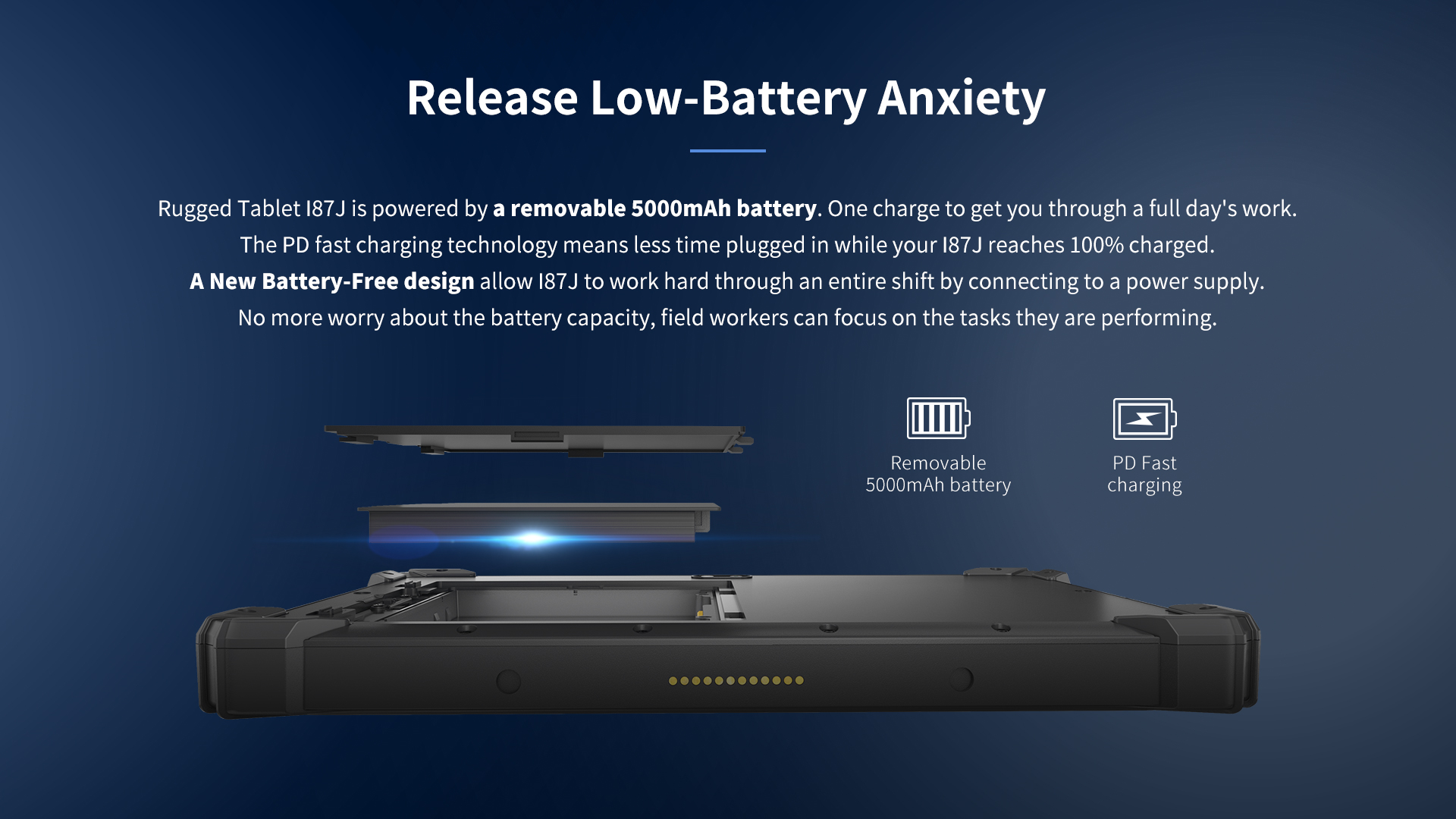

·Removable 5000mAh battery & New battery-free working mode
|
Tech Spec |
|
|
Product Form |
8 inch Rugged Tablet |
|
Material |
PC+TPU |
|
Dimension |
236.7*155.7*20 mm |
|
Weight |
910g |
|
Product Color |
Black |
|
CPU |
Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, |
|
GPU |
Intel® HD Graphics Gen 11 LP |
|
Memory |
RAM 8GB DDR ROM 128GB Emmc |
|
Operating System |
Windows 10 Home |
|
Display |
Type: TFT Optional: Type: TFT |
|
Touch Pannel |
5 points tempered glass capacitive screen G+G, hardness 7H |
|
Camera |
Front 5.0MP |
|
Buttons |
Power *1 |
|
Speaker |
8Ω/1W Speaker *2 |
|
Microphone |
Single MIC, Sensitivity: -42db, Output Impedance 2.2kΩ |
|
Senssors |
G_sensor |
|
RTC |
Built in polymer lithium ion battery, with capacity of 3V/1mAh |
|
Battery (Tablet) |
Removable Li-polyment Battery |
|
WIFI |
WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
|
Bluetooth |
BT5.0 (BLE) class1 Transmited distance：10m |
|
4G |
Eurasian: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 |
|
GPS |
Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), |
|

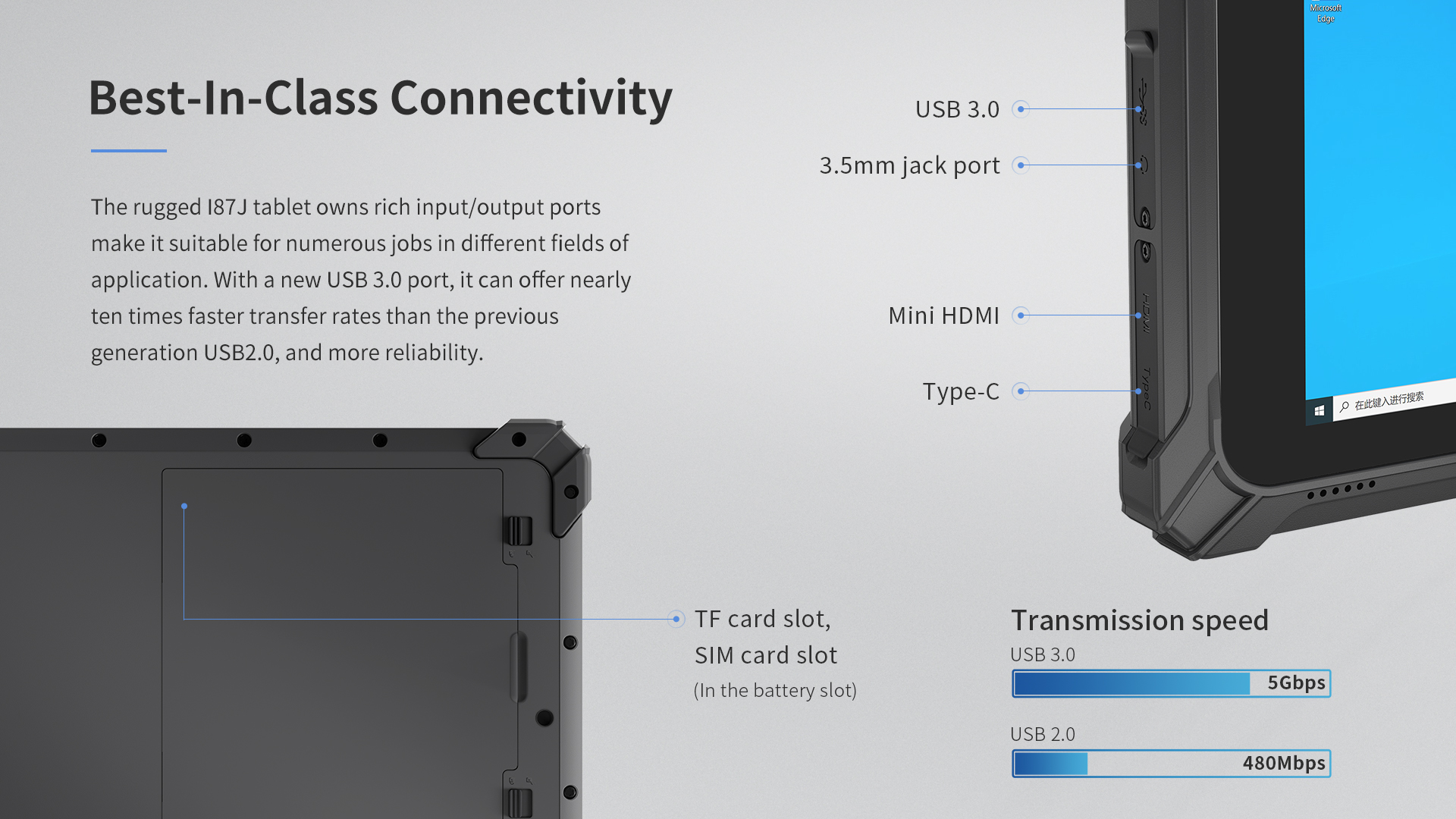

I/O Interface |
USB3.0 *1 (USB A port, HOST data transmission), Type C 3.1 *1 (Charging and Data transmission, Full function Type-C) |
|
∮3.5mm Standard earjack *1 |
|
|
HDMI 2.0a mini *1 |
|
|
Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1) |
|
|

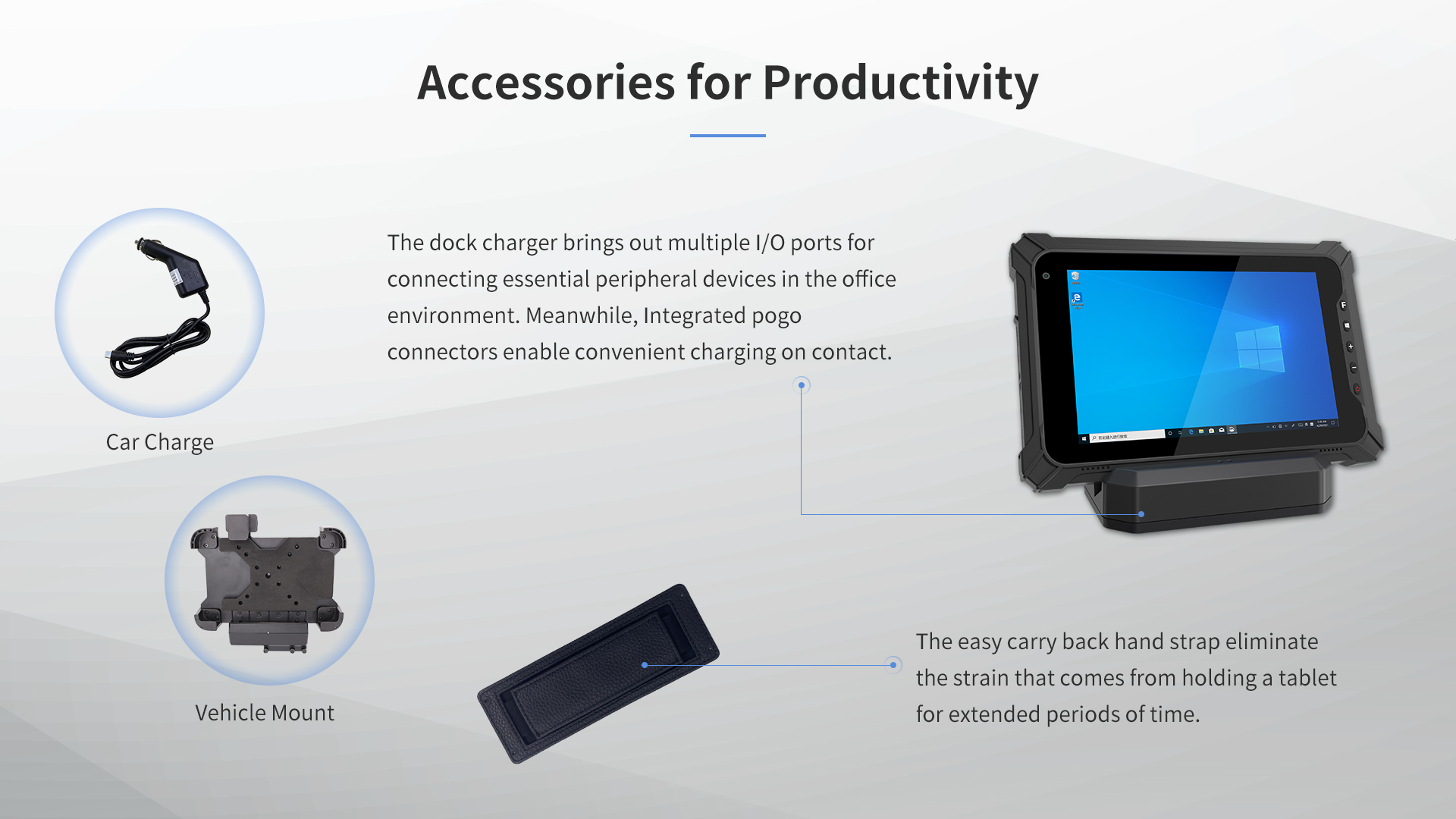

12PIN Pogo Pin *1 (Charging interface, USB signal connection base) |
|
|
Adapter |
AC100V ~ 240V 50Hz/60Hz Output TYPE-C 12V 4A European Standard adapter |
|
Indicator Light |
Blue indicator *1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) |
|

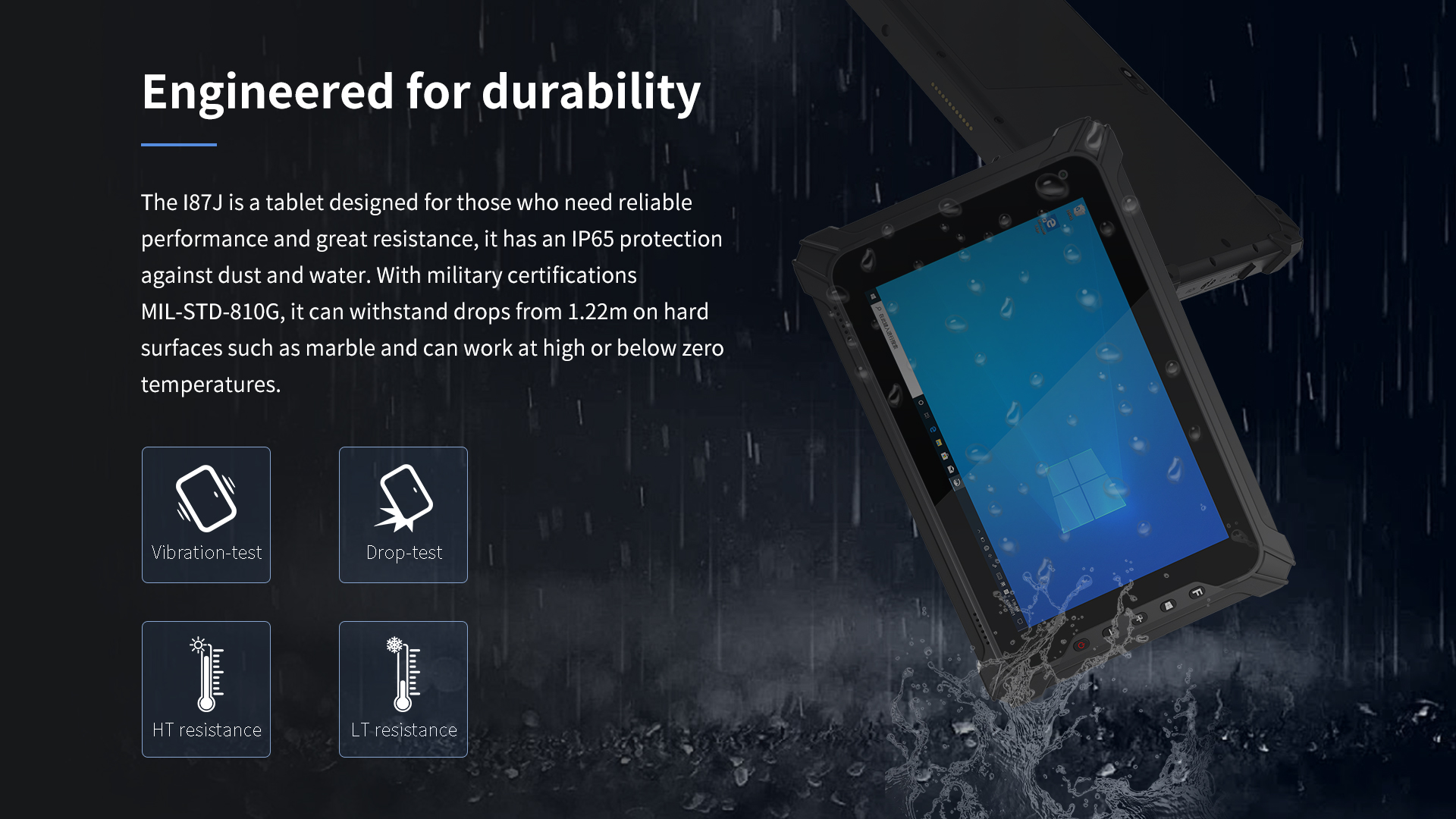

Rugged Features |
MIL-STD-810G: 1.22m drop |
|
Working temperature: -20 °C to 60 °C |
|
|
Storage temperature: -30 °C to 70 °C |
|
|
Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge |
|
|
Humidity: 95% Non-Condensing |
|
|
Certification |
IP65 |
|
CE |
|
|
FCC |
|
|
CCC |
|
|
MIL-STD-810G |
|
|
Modular Options |
QR Code Scanner |
|
NFC |
|
