Tech Spec

Product Form

10.1 inch Rugged Tablet

Material

ABS+PC

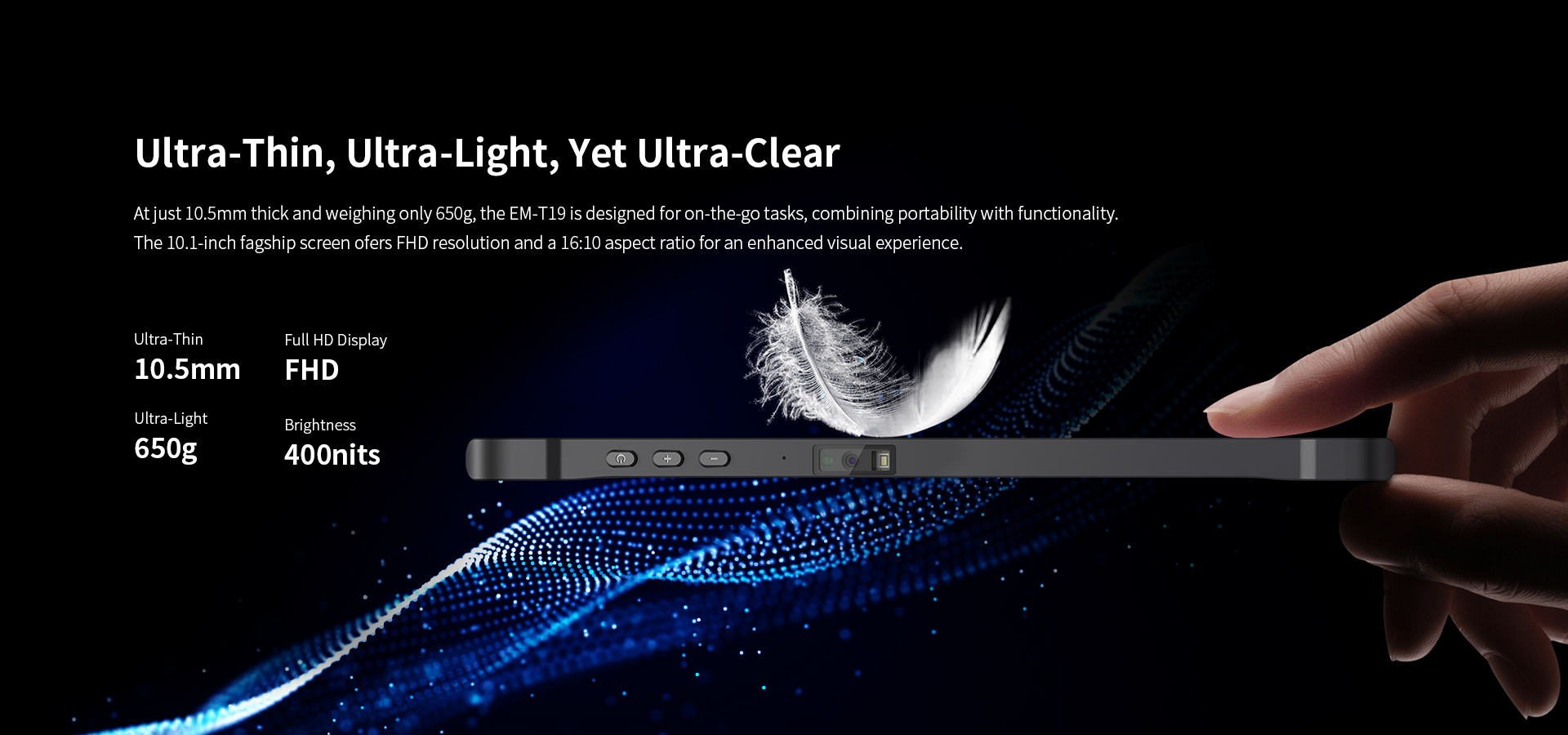

Dimension

263*177*10.5 mm

Weight

650g

Product Color

Black

CPU

MT8781 OCTA Core，2x A76 2.2GHz

GPU

ARM G57 MC2
Manhattan 3.0:>36fps
PUBG 40 Balance"

Memory

RAM 8GB  LPDDR4X                    ROM  128GB

Operating System

Android 14 GMS

Display

Type: IPS
Size: 10.1 inch   16:10
Resolution:  1200*1920
Brightness: 400cd/㎡

Touch Pannel

10 point G+G capacitive touch screen

Camera

Front 5.0MP, with Light sensor
Rear 13.0MP, Autofocus, Single flash

Charging Indicator

Specification: red green dual color lamp
Logic: no breathing effect (low battery 0%~20% red light flashes, charging red light stays on, and green light stays on after 90% battery)

Buttons

Power *1
Volume Key + *1
Volume Key - *1
Scanning Key *1

Speaker

Built in 8Ω/1W Waterproof Speaker *2

Microphone

Sensitivity: -42db, Output Impedance 2.2kΩ

Senssors

G_sensor, Geomagnetic sensor (compass), Gyro Sensor

Battery

Built-in Li-polyment Battery
9500mAh/3.8V
12 hrs(50% volume sounds, 50% screen brightness, 1080P HD video display by default )

WIFI

WIFI 802.11 b/g/n/a/ac  frequency2.4G+5.0G (5.1G+5.8G) Dual-band WIFI

Bluetooth

BT5.1 (BLE) class1  Transmission distance：10m

2G/3G/4G

GSM: B2/3/5/8
WCDMA:B1/2/5/8
FDD:B1/2/3/4/5/7/8/17/20/28A/28B
TDD:B38/39/40/41

GPS

Support GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS
Cold start time:<60 seconds，GPS frequency：1575.42MHz，Glonass frequency：1602MHZ，Beidou frequency: B1 1.561GHz

I/O Interface

Type C *1 ( USB2.0/OTG/Fast charging PE+2.0  18W)

TF card *1，Max: 512GB
SIM card  *2                                             Two out of three card holders (Micro Sim+TF or Micro Sim+Nano Sim)

12PIN Pogo Pin *1

Power Adapter

USB Type-C interface, supporting fast charging PE+2.0, maximum power 18W, maximum 9V/2A

Type-C OTG Cable

Type-C OTG cable_V1.0, AWM 2725 10/0.10*4C +LV +32/0.10  OD3.5 L=138MM

Type-C Cable

Type-C data cable_ V1.10003946, the black wire is 1.0m long, the CC pin is connected to VCC on one side after adding resistance, and the other side is empty.
Modification record: add tail, change differential line to twisted pair, add shielding layer, copper core internal resistance ＜ 80 Ω

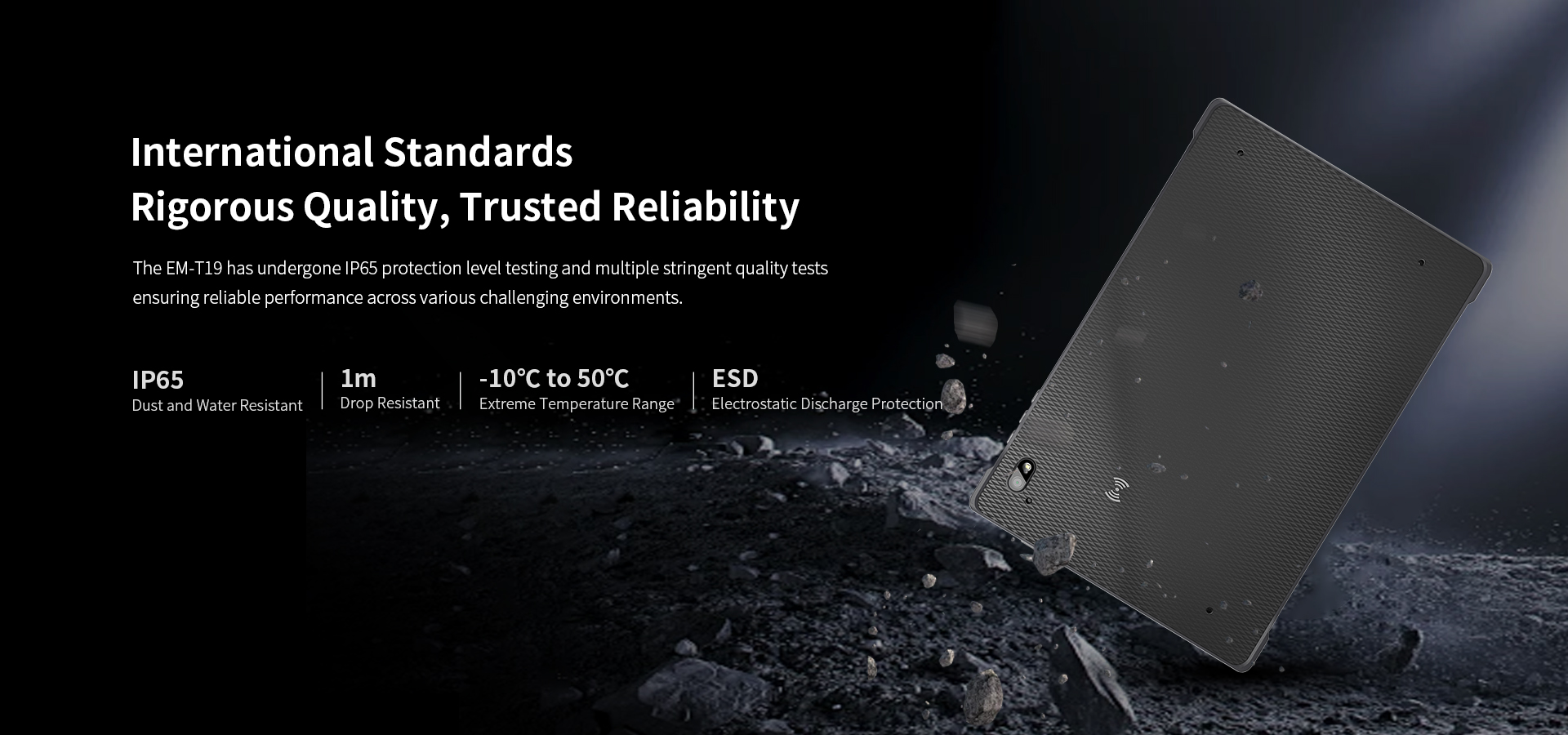

Rugged Features

EOS：VBUS 300/80us  VBAT 300v/20us

Electrostatic discharge (ESD): ± 15kV air discharge, ± 8kV contact discharge

1m drop

Working temperature: -10 °C to 50 °C

Storage temperature: -20 °C to 60 °C

Humidity: 95% Non-Condensing

Certification

IP65

CE，CCC，UN3803

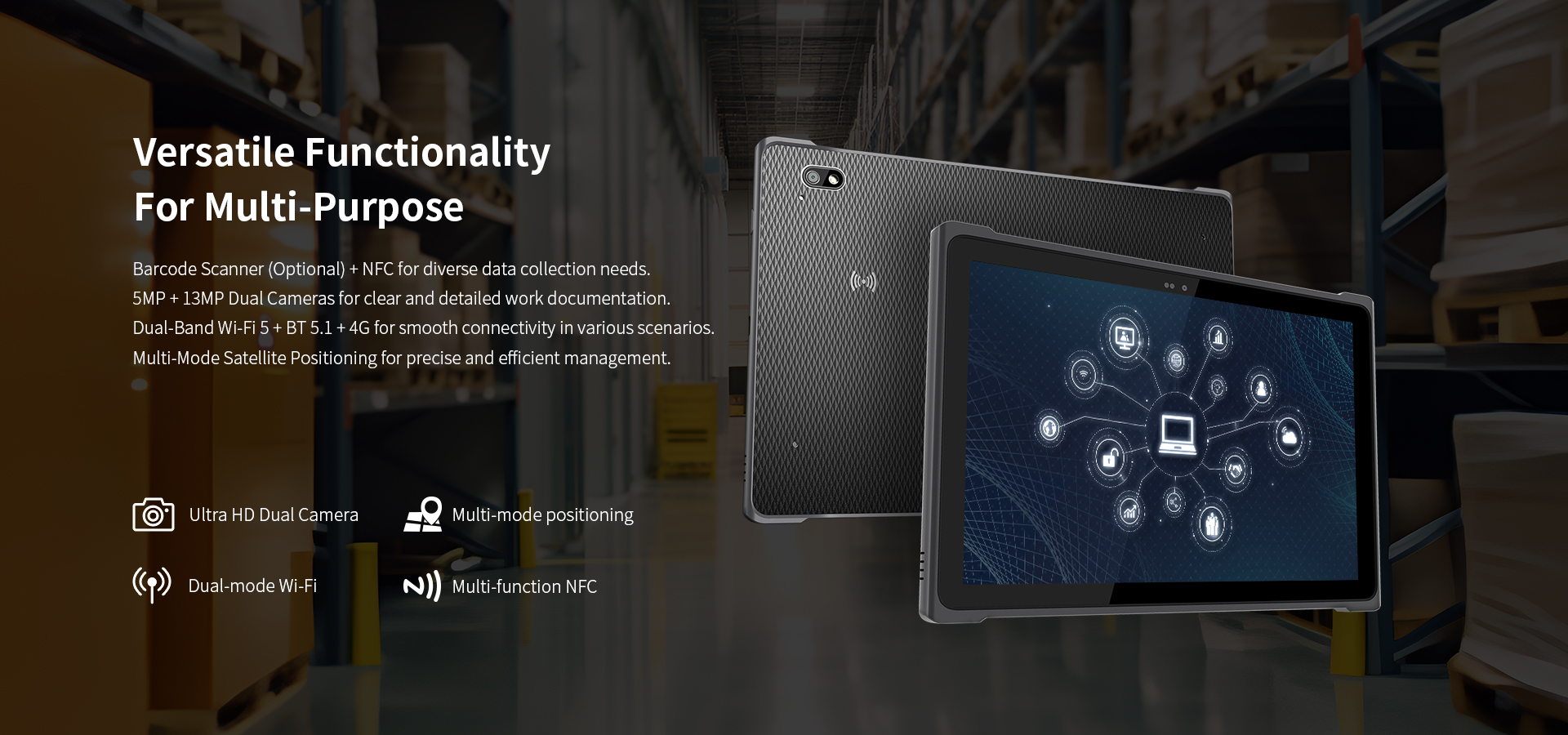

Data Collection

QR Code Scanner
Optical resolution: ≥3mil
Code system:
1D：Code128、EAN-13、EAN-8、UPC-E、UPC-A、ISBN、ISSN、Code11、
Interleaved 2 of 5、Code39、Code93、Code32、Codabar、Matrix 2
of 5、Industrial 25、IATA25、MSI Plessey、GS1 DataBar、Plessey、
Febraban、Composite
2D：QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、Aztec、
Maxicode、Han Xin code、Dotcode

NFC
Frequency：13.56MHz   Support 14443A/14443B/15693/18092/mifare compare protocol under ISO/IEC
Card reading distance: 2.5~4cm
