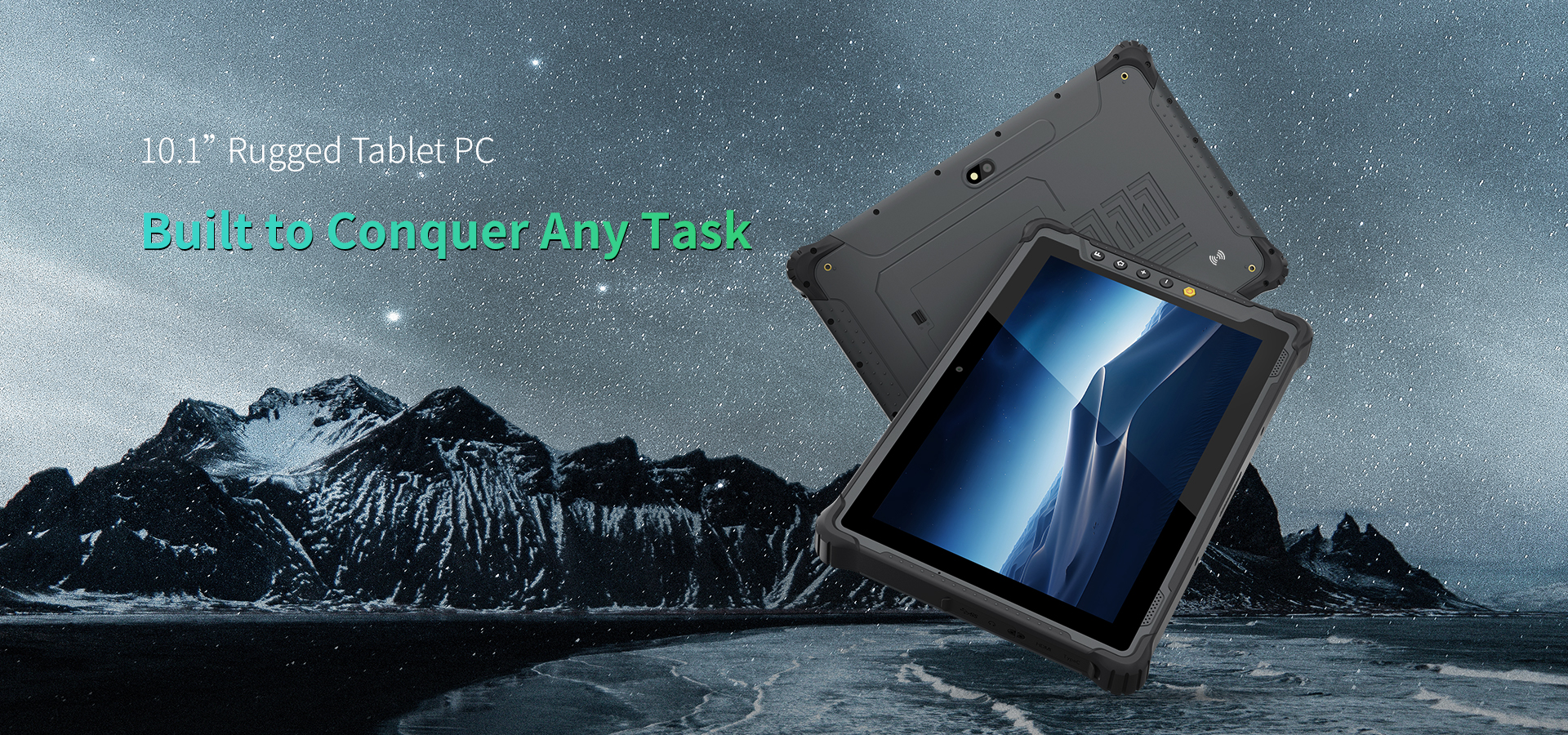

TK-Q185M Rugged Tablet PC
·Professional 2D scan engine and multi-function NFC
·GPS, BDS, GLONASS, Galileo, NavIC (IRNSS), multi-satellite navigation system
·Equipped with multiple accessories, like docking charger,hand-strap, vehicle mount, shoulder-strap, back-strape
·Qualcomm Kryo™ 670 CPU and the AI-accelerated Qualcomm
Hexagon™ 770 processor
·Android 14 OS, paired with 8GB+128GB of expansive memory
·10-point capacitive touchscreen, G+G, tempered glass, hardness 7H
·Professional 2D scan engine and multi-function NFC
·GPS, BDS, GLONASS, Galileo, NavIC (IRNSS), multi-satellite navigation system
·Equipped with multiple accessories, like docking charger,hand-strap, vehicle mount, shoulder-strap, back-strape
·Integrated with a 5G modem and RF system,it supports mmWave and sub-6 GHz bands
·TDD and FDD modes, and SA and NSA network deployments, covering nearly all critical regions worldwide

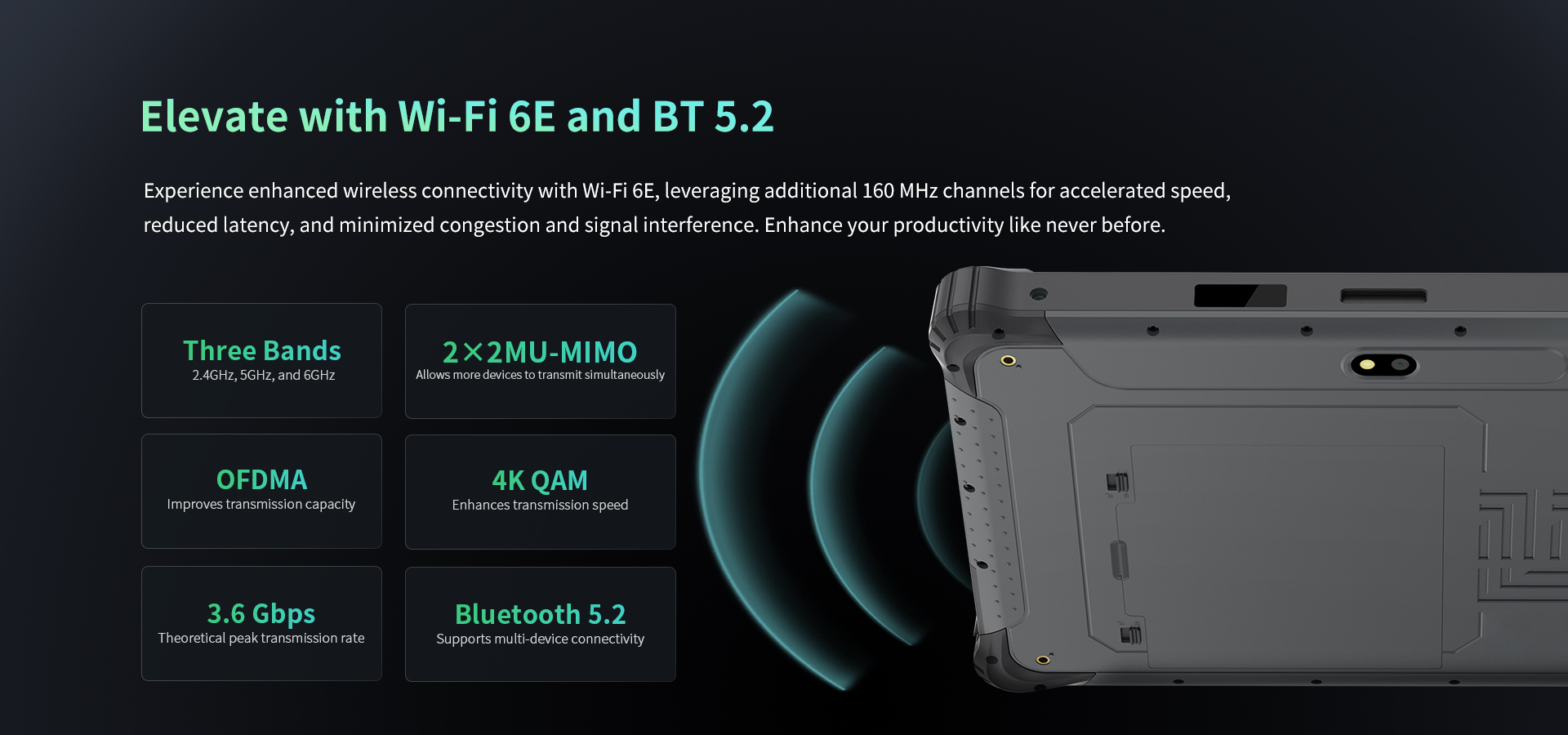

·Enhanced wireless connectivity with Wi-Fi 6E, BT5.2
·Constructed with wear-resistant materials, shock-absorbing
architecture, and protective corner design

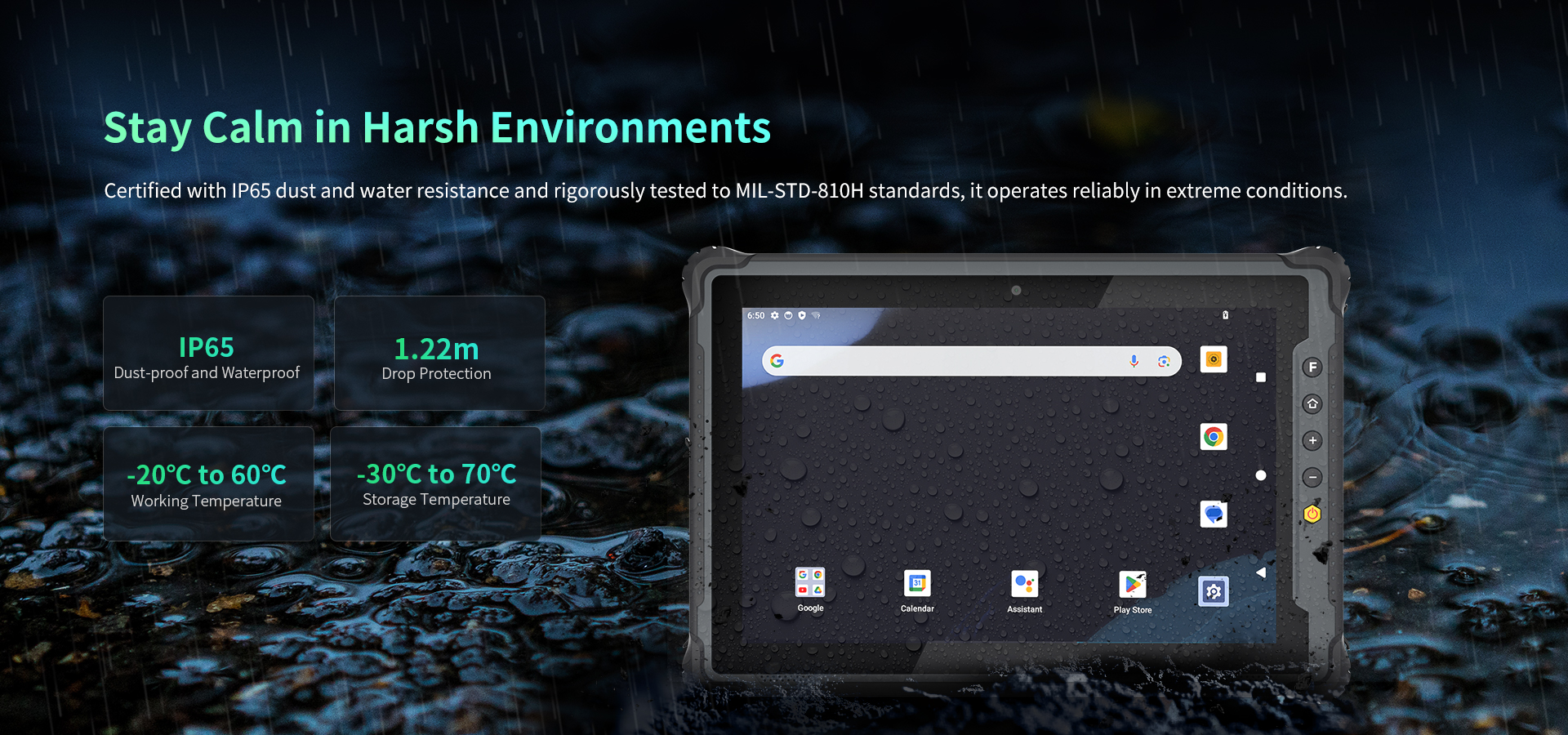

·Certified with IP65 dust and water resistance
·Rigorously tested to MIL-STD-810H standards,1.22m drop
protection
|
Tech Spec |
|
|
Product Form |
10.1-inch Rugged Tablet PC |
|
Material |
PC+TPU |
|
Dimension |
274.9*188.7*22.2mm |
|
Weight |
1020g |
|
Product Color |
Grey |
|
CPU |
Octa-core 2.7G QCM6490, 6nm FinFET process, |
|
GPU |
Adreno™ GPU 643 |
|
Memory |
RAM 8GB LPDDR4x ROM 128GB EMMC |
|
Operating System |
Android 14/GMS |
|

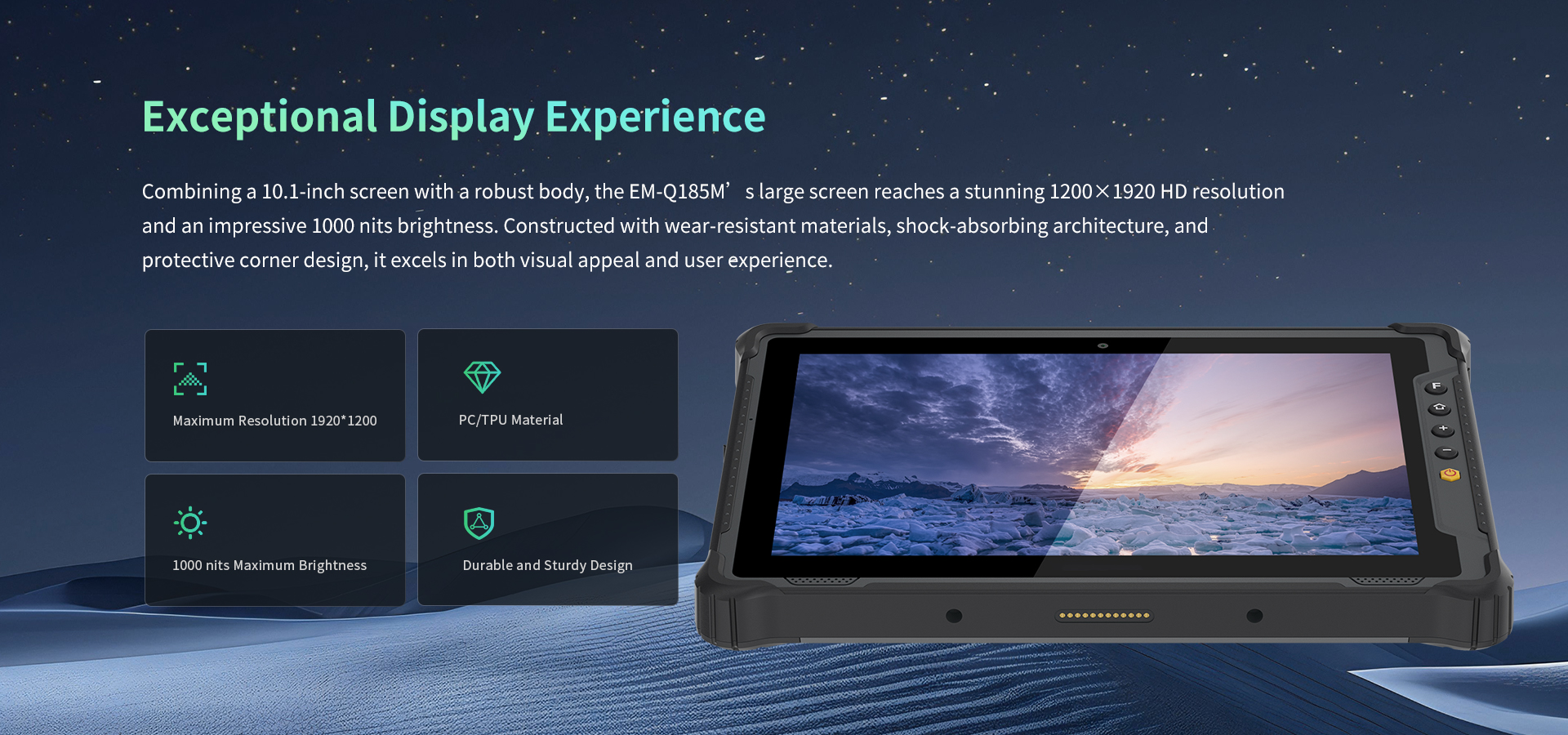

Display |
Type: FHD |
|
Touch Pannel |
10-point Capacitive Touchscreen, G+G, Tempered Glass, Hardness 7H |
|
Camera |
Front 5.0MP |
|
Buttons |
Power *1 (Yellow) |
|
Speaker |
Built in 8Ω/1W Waterproof Speaker *2 |
|
Microphone |
Sensitivity: -42db, Output Impedance 2.2kΩ |
|

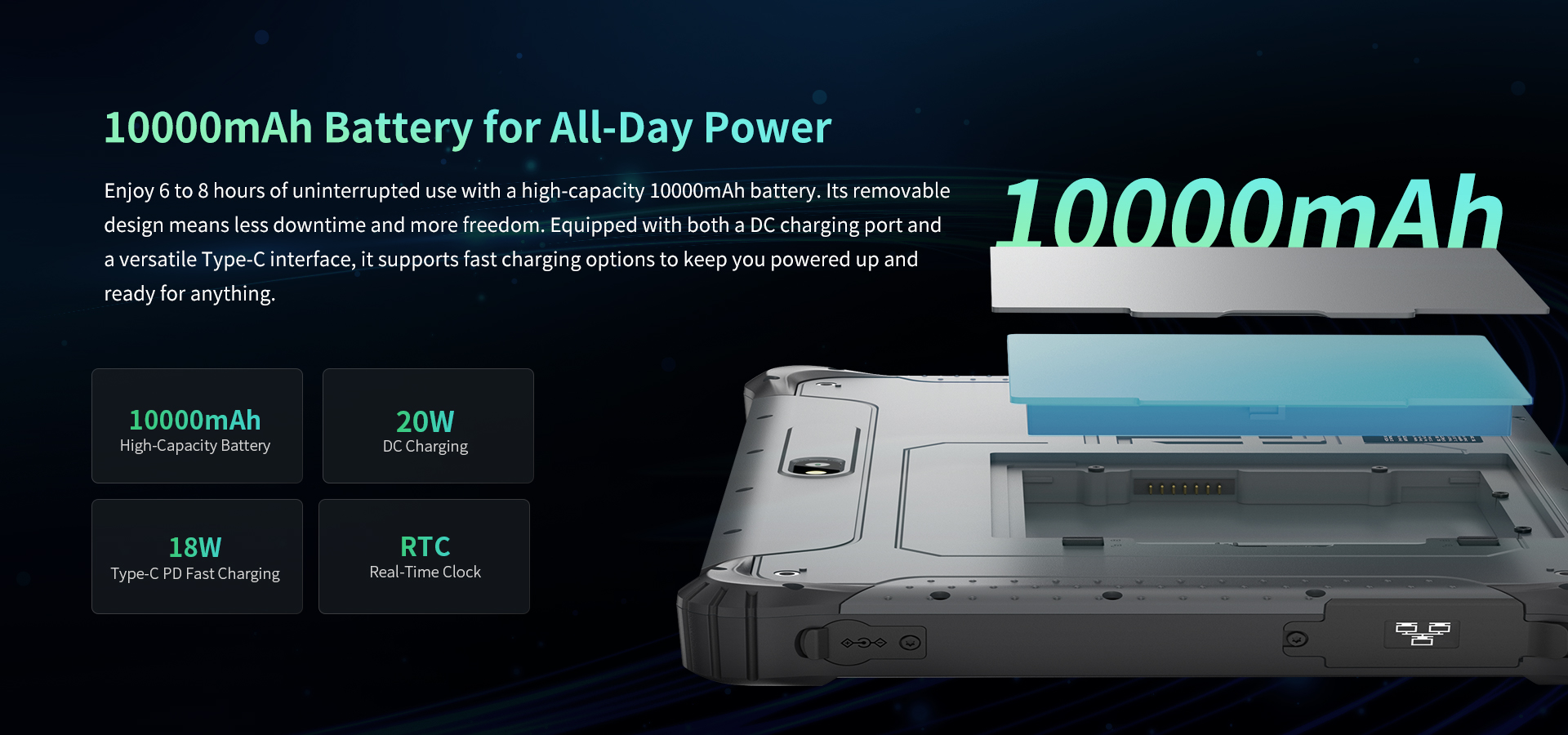

Battery |
Removable Polymer Lithium-ion Battery |
|
Sensors |
G-sensor, Light sensor, Gyroscope, Compass |
|
Fingerprint |
Black Anodized Metal Frame, Dimensions: 34.75(L) * 29.77(W), Matte Black Finish |
|
RTC |
Built-in rechargeable 3V/1mAh lithium-ion battery |
|
WIFI |
Wi-Fi 6E |
|
Bluetooth |
BT5.2 (BLE) |
|
2G/3G/4G/5G |
5G:SA/ NSA: |
|
GPS |
Supports: GPS/GLONASS/BDS; Dual-frequency L1 + L5; |
|
2D |
Optional, Hardware Decoding M1/Software Decoding SE4710 |
|
NFC |
NFC 13.56MHz Supports 14443A/14443B/15693 of ISO/IEC, Reading Distance: 0 to 4cm |
|

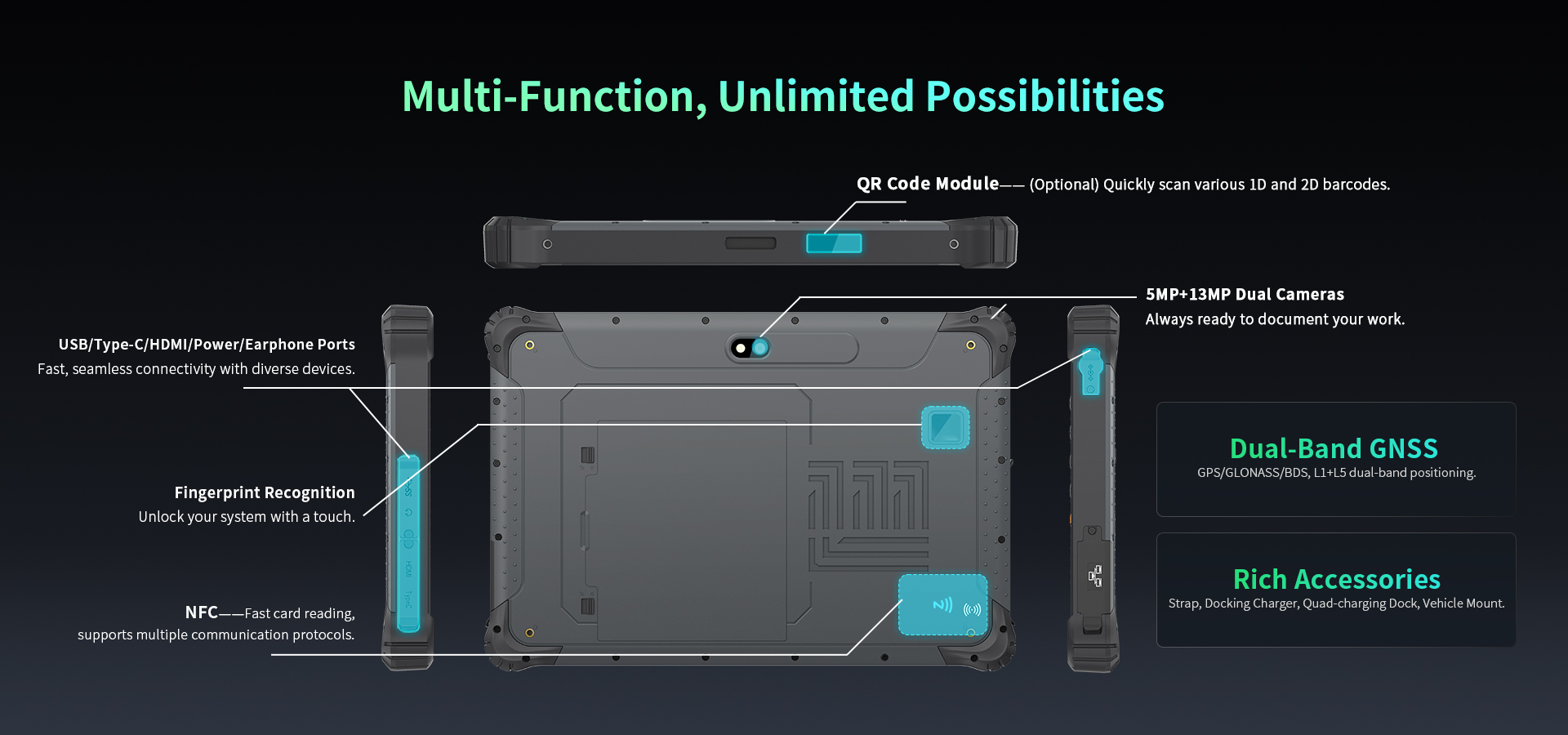

I/O Interfaces |
USB 3.0 *1 (Type A) |
|
Type C *1 (Data & Charing) |
|
|
∮3.5mm Standard Earphone Jack *1 |
|
|
Nano-SIM x 2/Micro SD Supports up to 512GB x 1 +Nano-SIM x 1 (three-in-one card slot) |
|
|
DC Supports 5V/4A Charging |
|
|
12PIN Pogo Pin *1 |
|
|
HDMI *1 |
|
|
Power Adapter |
Power Input 100-240VAC0.5A50/60Hz |
|
Rugged Features |
MIL-STD-810H: 1.22m Drop Resistance |
|
Working temperature: -20 °C to 60 °C |
|
|
Storage temperature: -30 °C to 70 °C |
|
|
Humidity: 95% Non-Condensing |
|
|
Certifications |
IP65 |
|
CE NB |
|
|
FCC (Optional) |
|
|
CCC（Optional） |
|
|
MIL-STD-810H |
|
|
CEC |
|
|
Battery: UN38.3, MSDS, Aviation and Maritime Report, IEC62133 |
|
