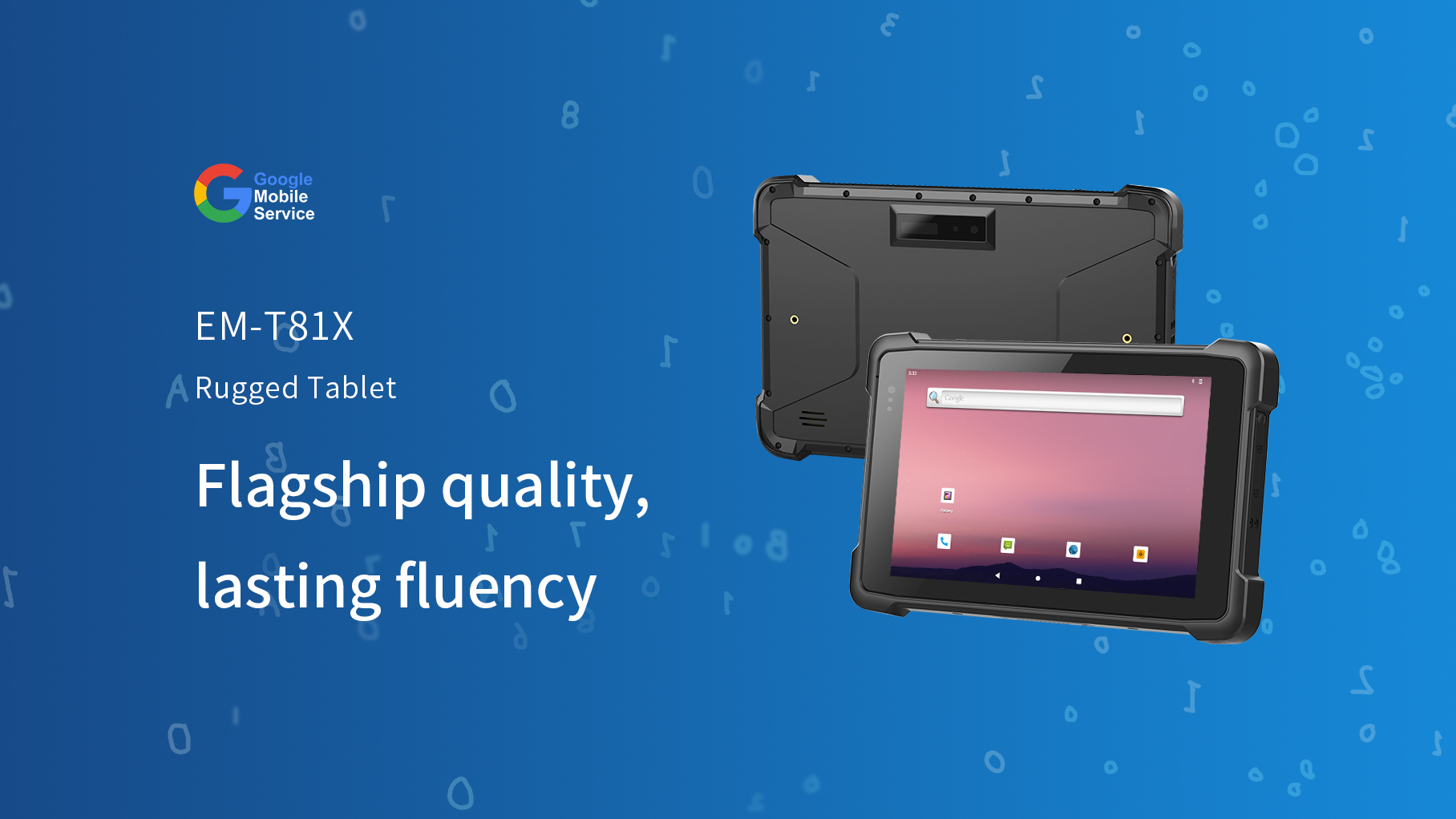

8 inch Rugged Tablet PC K81X
•Support for Android 12 (GMS) system
•Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes

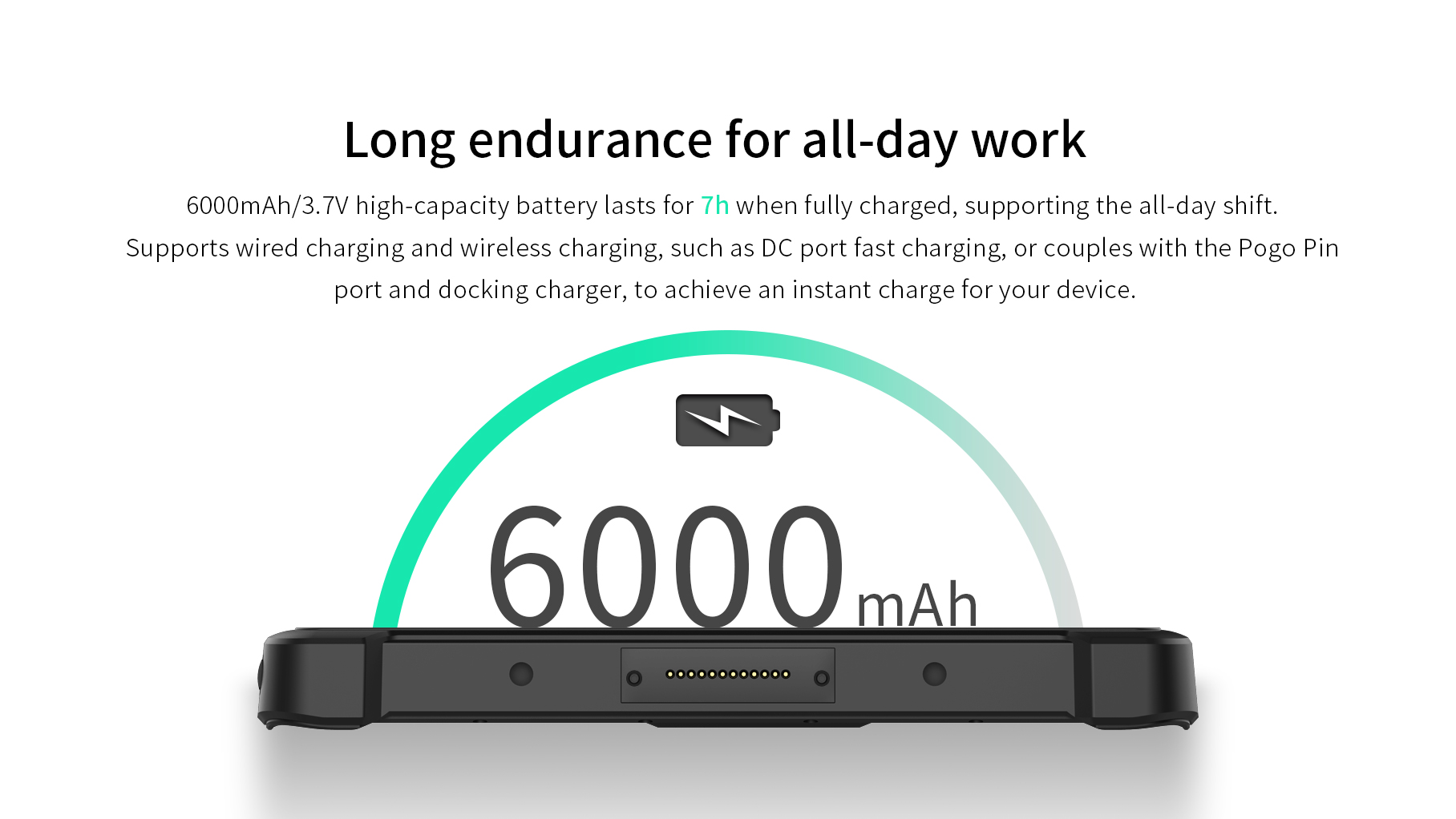

•6000mAh battery, 7 hours of machine endurance
•IP65 high protection level, in accordance with MIL-STD-810G
•Support GPS+Glonass+Beidou, more accurate positioning

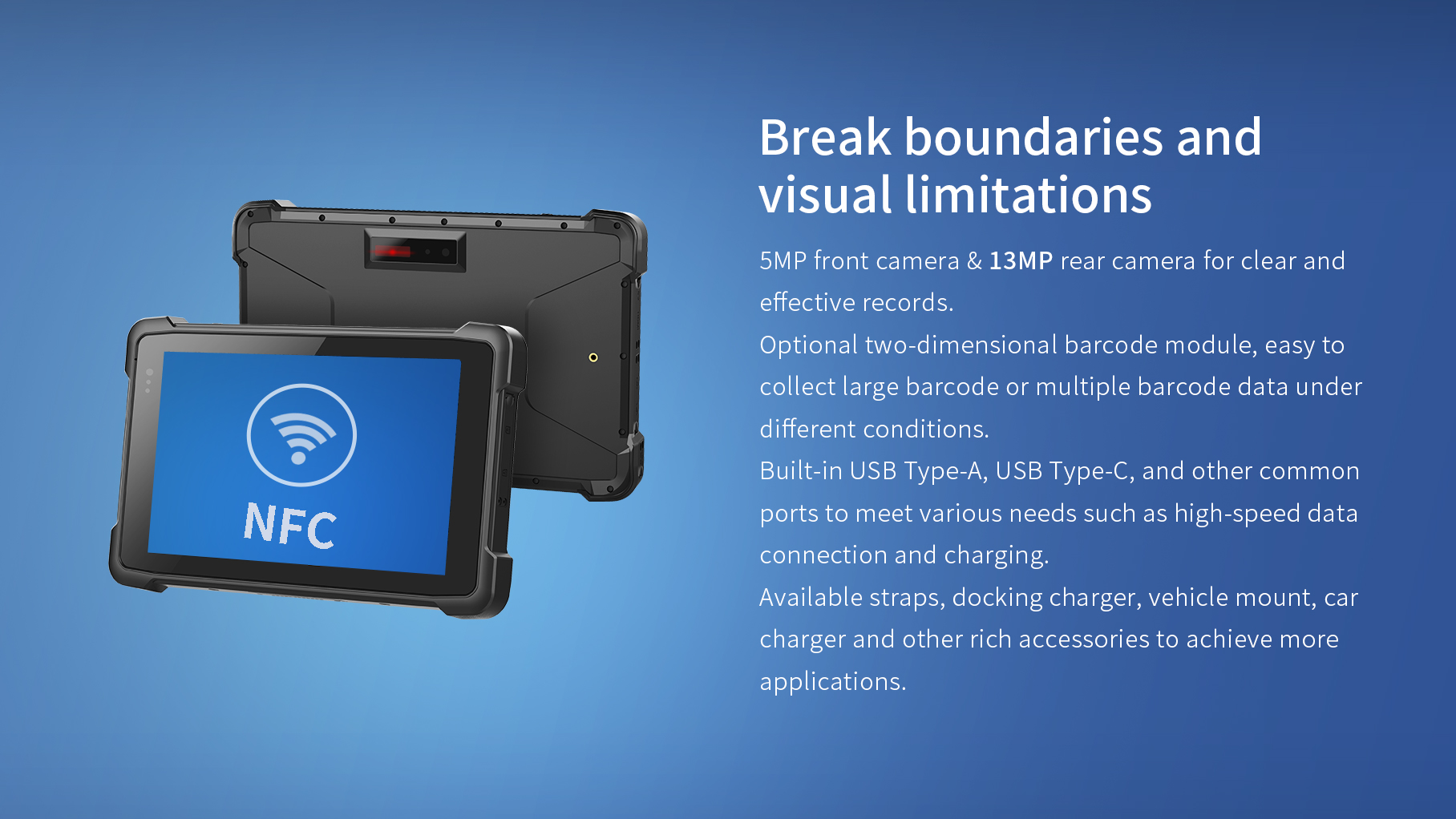

•Support 13 million pixel auto focus camera, easy to collect images and video information
•Support 2D, NFC and other functional modules for free selection
•Support for Android 12 (GMS) system
•Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
•6000mAh battery, 7 hours of machine endurance
•IP65 high protection level, in accordance with MIL-STD-810G
•Support GPS+Glonass+Beidou, more accurate positioning
•Support 13 million pixel auto focus camera, easy to collect images and video information
•Support 2D, NFC and other functional modules for free selection
|
Tech Spec |
|
|
Product Form |
8 inch Rugged Tablet |
|
Material |
PC+TPU+10%GF |
|
Dimension |
227.7*150.8*24.7 mm |
|
Weight |
680g |
|
Product Color |
Black, batch color optional |
|
CPU |
MT6789 2*A76 2.2GHz，6*A55 2.0GHz |
|
GPU |
ARM G57 MC2 |
|
Memory |
RAM 8GB LPDDR4 ROM 128GBGB |
|
Operating System |
Android 12 GMS |
|
Display |
Type: IPS |
|
Touch Pannel |
5 points capacitive screen, G+G, hardness 6H, anti scratch |
|
Camera |
Front 5.0MP |
|
Buttons |
Power *1 |
|
Speaker |
8Ω/1W Waterproof BOX Speaker *1 |
|
Microphone |
Sensitivity: -42db, Output Impedance 2.2kΩ |
|
Senssors |
G_sensor, Geomagnetic sensor (compass), Gyro Sensor |
|
Battery (Tablet) |
Built-in Li-polyment Battery |
|
WIFI |
WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual-band WIFI. |
|
Bluetooth |
Bluetooth BT5.2 (BLE) class1 Transmission distance: 10m |
|
2G/3G/4G |
GSM：2+3+5+8 |
|
GPS |
Support: GPS+Glonass+Beidou;Capture sensitivity:-140 dBm;Cold start time:<50 seconds,Hot start time:<5 seconds,GPS frequency:1575.42MHz,Glonass frequency:1602MHZ, Frequency for Beidou: B1 1.561GHz |
|
I/O Interface |
Standard USB 2.0 *1, Type C *1 (Data & Charing) |
|
∮3.5mm Standard earjack *1 |
|
|
SIM card *1 |
|
|
TF card *1，Max: 512GB |
|
|
DC 5V 3A ∮3.5mm jack *1 |
|
|
12PIN Pogo Pin *1 |
|
|
Adapter |
AC100V ~ 240V 50Hz/60Hz Output DC 5V 3A American standard has passed CE certification |
|
Type-C cable |
Type-C cable |
|
Rugged Features |
MIL-STD-810G: 1.22m drop |
|
Working temperature: -20 °C to 60 °C |
|
|
Storage temperature: -30 °C to 70 °C |
|
|
Humidity: 95% Non-Condensing |
|
|
Certification |
IP65 |
|
CE NB |
|
|
MIL-STD-810G |
|
|
Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 |
|
|
Data Acquisition |
Two-dimensional code |
|
NFC |
|
