TK-I18N Rugged Tablet PC
·Equipped with a 5MP front camera and an 8MP rear camera
·Standard GPS+Glonass,optional GPS+Beidou for accurate positioning
·Optional 2D barcode scanning engine supports efficient decoding
·Optional NFC module, supports mainstream NFC card reading applications
·Equipped with the latest Intel Alder Lake Processor N100
·Windows 11 OS, unleash robust production power
·Support 10-point capacitive touch and glove touch functionality
·Equipped with a 5MP front camera and an 8MP rear camera
·Standard GPS+Glonass,optional GPS+Beidou for accurate positioning
·Optional 2D barcode scanning engine supports efficient decoding
·Optional NFC module, supports mainstream NFC card reading
applications
·Built-in 2.4GHz and 5.8GHz dual-band Wi-Fi
·Bluetooth 5.2 with wider range and faster speeds
·Equipped with 3G/4G module for stable signal outdoors
·Choose 1 from 3 modules(USB 2.0, Gigabit Ethernet, and RS232
serial port)
·Featured a back panel made of PC material with a TPU frame
·Brand-new cooling system with thermal conductive materials
·IP65-rated dust and water resistance,MIL-STD-810H certified
|
Tech Spec |
|
|
Product Form |
10.1-inch Vehicle PC |
|
Material |
PC+TPU |
|

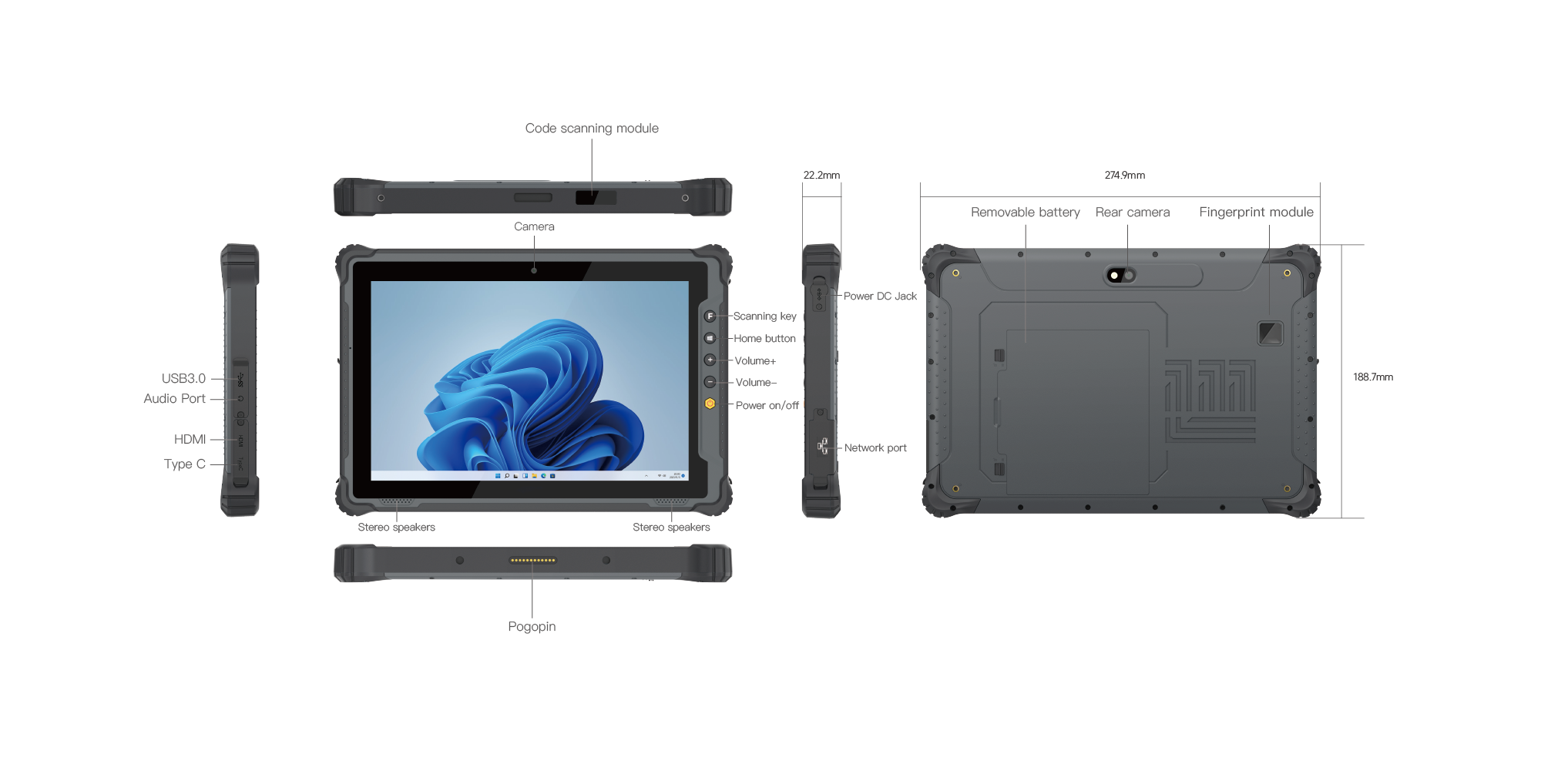

Dimensions |
274.9*188.7*22.2mm |
|
Weight |
1140g |
|
Product Color |
Caesious |
|
CPU |
Intel Alder LAKE N100 |
|
GPU |
Intel® UHD Graphics |
|
Memory |
RAM 8GB LPDDR5 Optional: 16G |
|
Operating System |
Windows 11 Home |
|
Display |
Type: IPS |
|
Touch Pannel |
10-Point Capacitive Screen, G+G, Panda Glass, Hardness Above 7H, Scratch-Resistant, COF, Supports Glove Touch |
|
Camera |
Front 5.0MP |
|
Buttons |
Power *1 |
|
Speaker |
Built in 8Ω/1W Waterproof Speaker *2 |
|
Microphone |
Sensitivity: -42dB, Output Impedance: 2.2kΩ |
|
Battery |
Removable Polymer Lithium-ion Battery |
|
RTC |
3V 1mAH Rechargeable Surface-Mount |
|
G-Sensor |
G-Sensor |
|
WIFI |
WIFI6 802.11(a/b/g/n/acR2/ax 1x1) Frequency: 2.4G+5.8G Dual-band WIFI intel AX101 |
|
Bluetooth |
BT5.2 (BLE) |
|
2G |
NA |
|
3G |
WCDMA: B1/5/8 |
|
4G |
EURO： |
|
GPS |
Supports GPS, Glonass; Capture Sensitivity: -140 dBm; Cold Start Time: <50 seconds, Hot Sstart Time: <5 seconds; GPS Frequency: 1575.42MHz |
|
Fingerprint |
Standard |
|
2D |
|
|
NFC |
Optional: NXP300/NFC 13.56MHz Supports 14443A/14443B/15693/18092/mifare protocols of ISO/IEC |
|

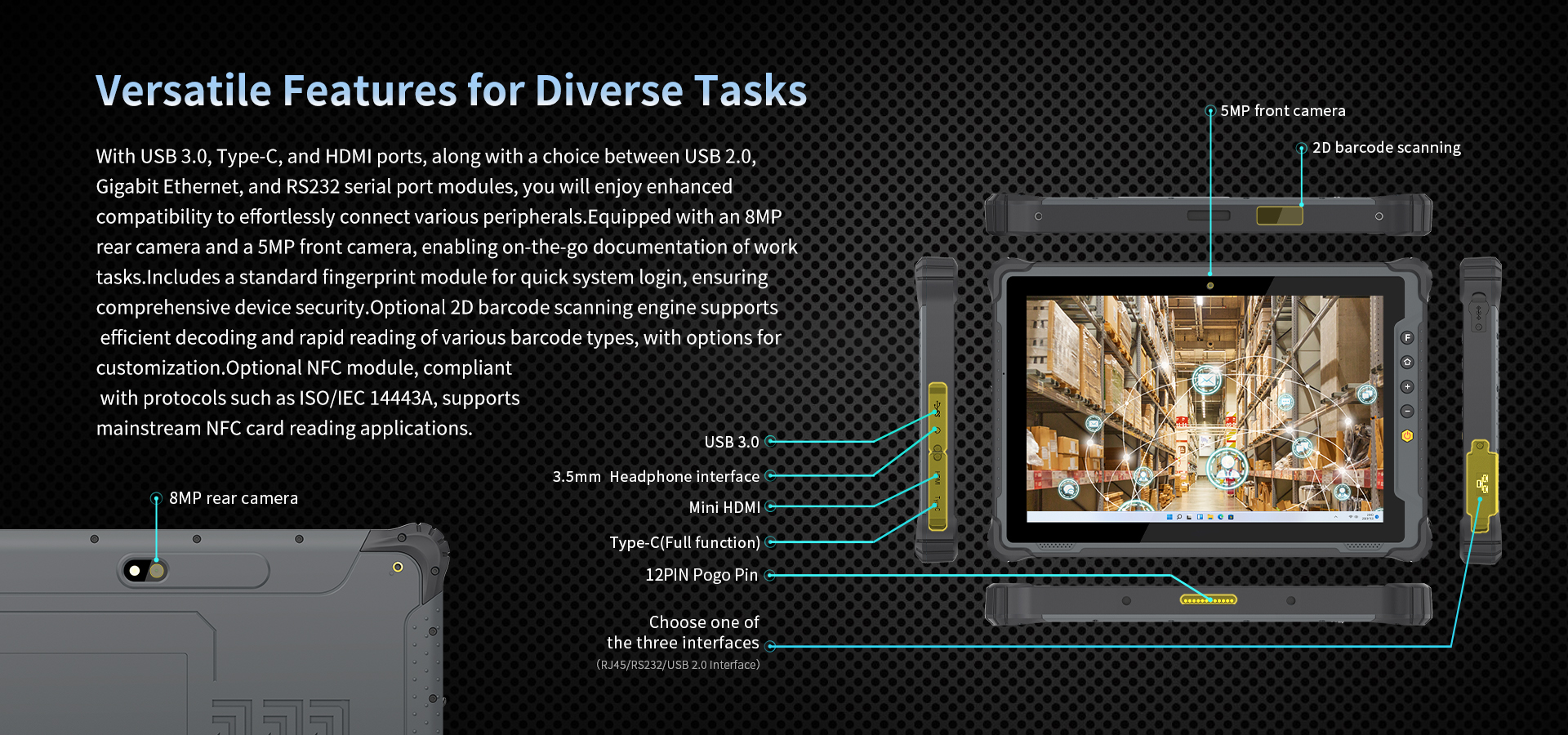

I/O Interfaces |
USB 3.0 *1 (Type A) |
|
Type C *1 (Data & Charing) |
|
|
∮3.5mm Standard Earphone Jack *1 |
|
|
TF *1 |
|
|
SIM Card *1 |
|
|
DC 12V 4A Power Port x1 （Male Plug outer diameter 5.5mm） |
|
|
HDMI 2.0 mini *1 |
|
|
12PIN Pogo Pin *1 |
|
|
Choose 1 from 3 |
USB 2.0 *1 (4pin) |
|
RJ45 Adaptive, Recognizes 1000M Network Card (Standard） |
|
|
RS232 Serial Port |
|
|
Adapter |
AC100V to 240V, 50Hz/60Hz output DC 12V/4A wall plug |
|
Rugged Features |
MIL-STD-810H: 1.22m drop resistance |
|
Working temperature: -20 °C to 60 °C |
|
|
Storage temperature: -30 °C to 70 °C |
|
|
Humidity: 95% Non-Condensing |
|
|
Certifications |
IP65 |
|
CE NB |
|
|
FCC（know the real situation） |
|
|
RoHS |
|
|
CCC（know the real situation） |
|
|
MIL-STD-810H |
|
|
Battery: UN38.3, MSDS, Air and Maritime Reports, IEC62133 |
|
