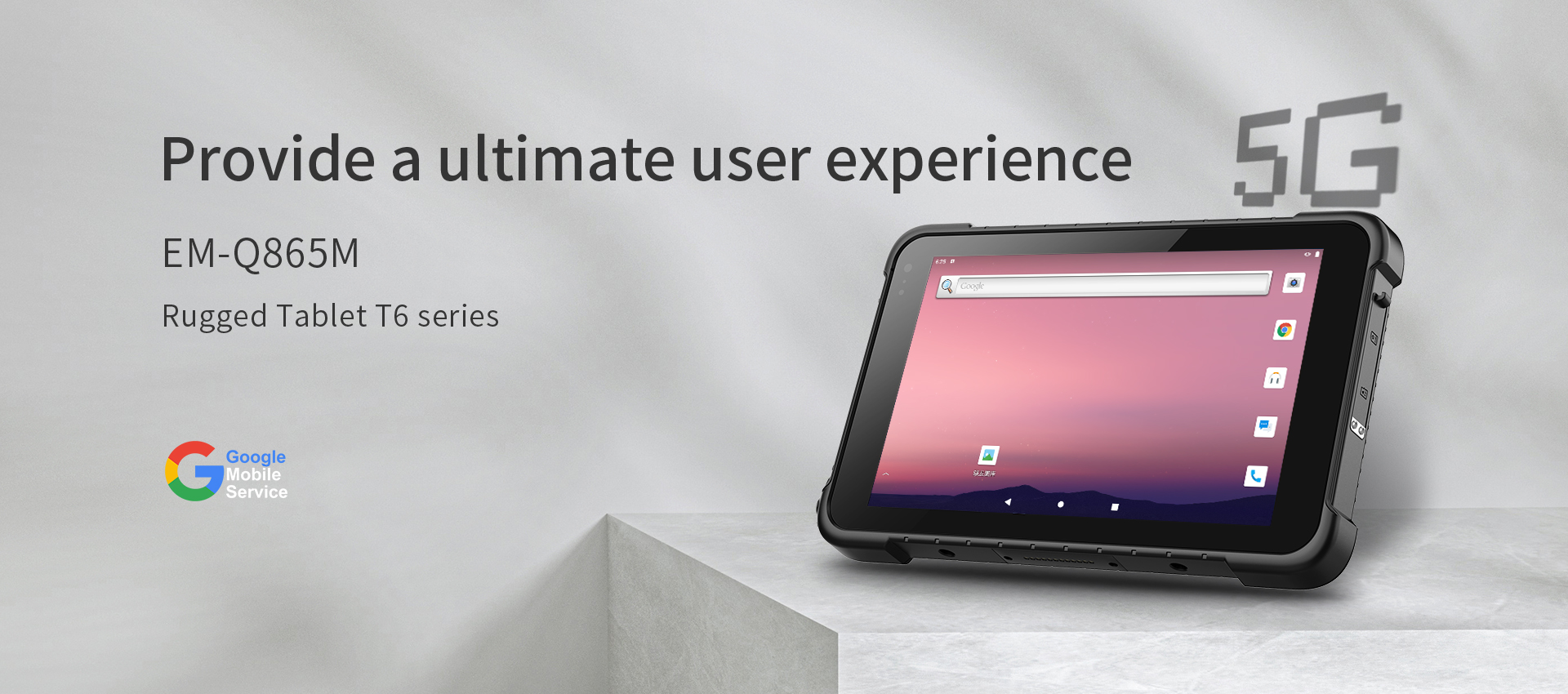

8 inch Rugged Tablet PC
•Support for Android 11 system
•Optional 4G/5G all network communication, WiFi, Bluetooth and other communication modes

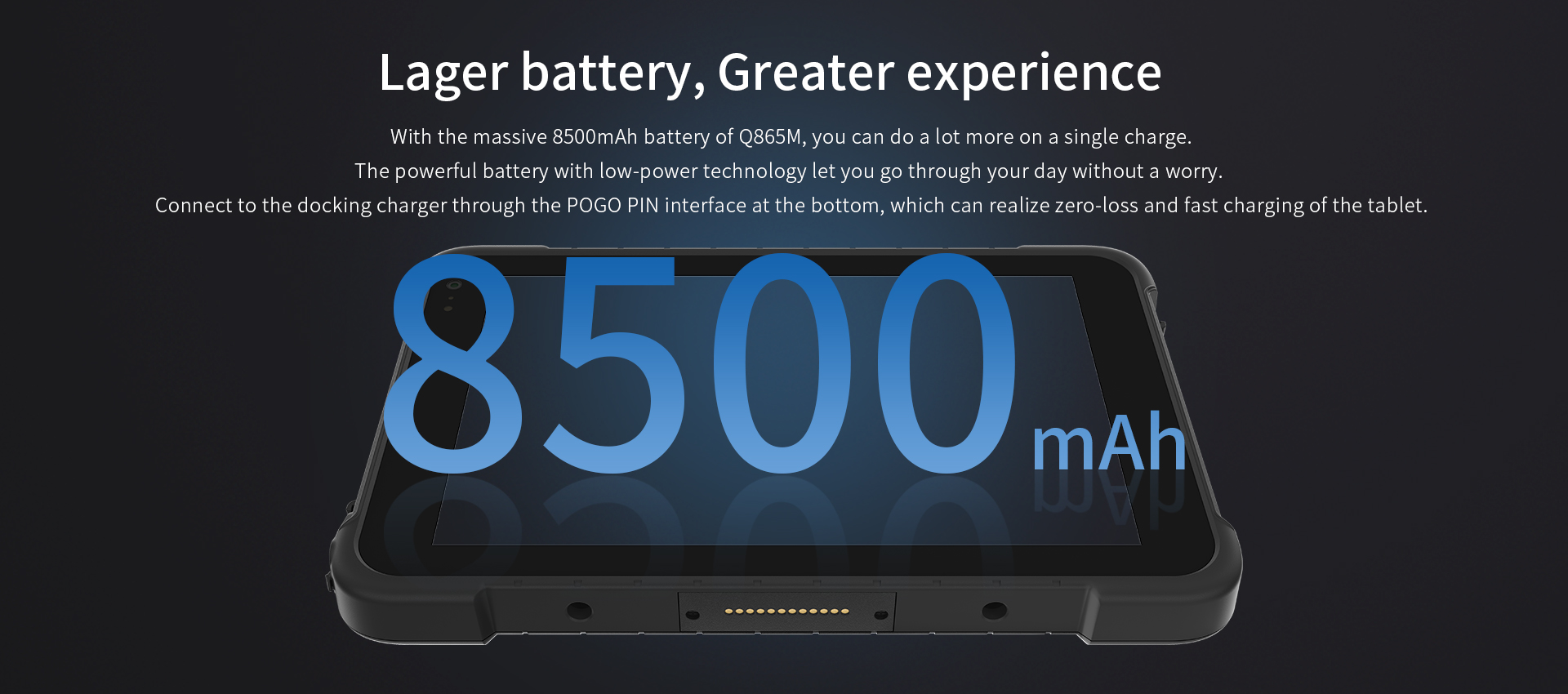

•8500mAh battery, 10 hours of machine endurance

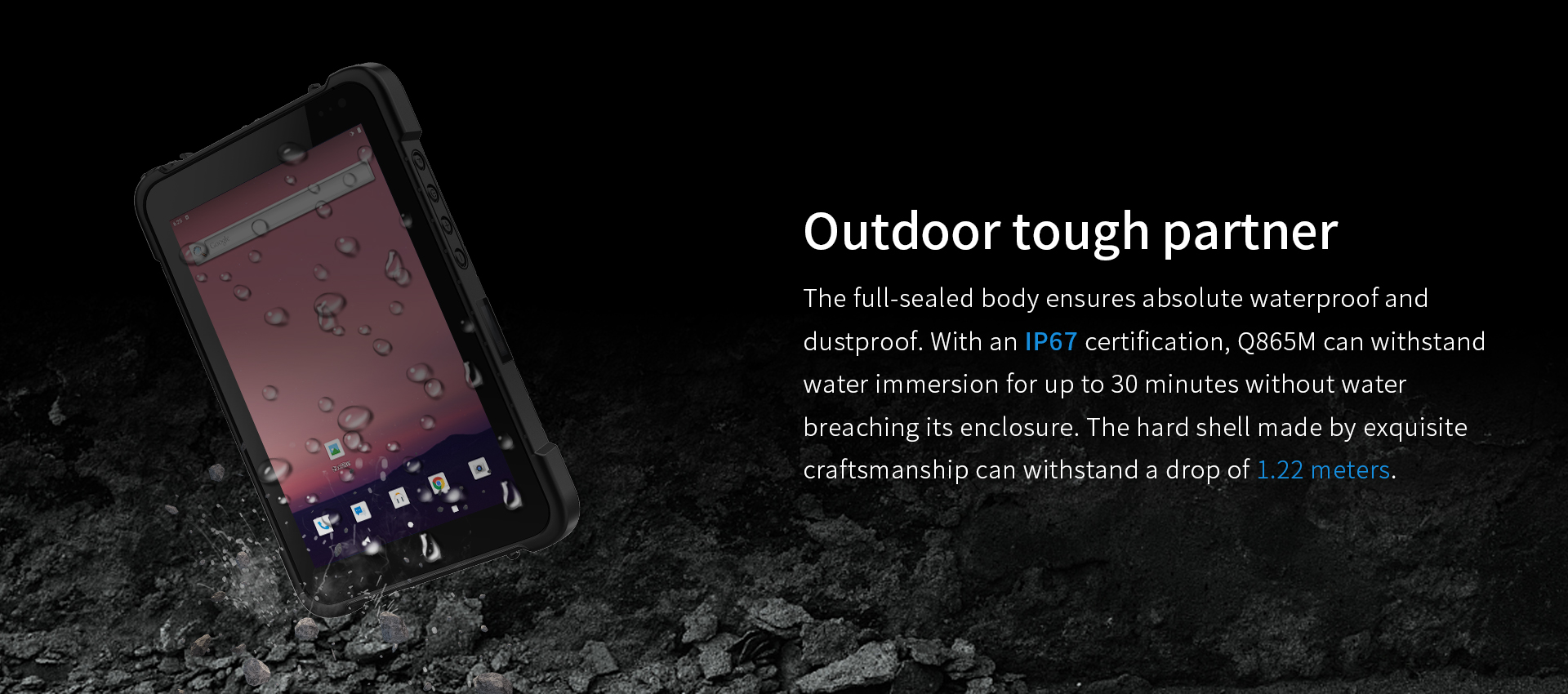

•IP67 high protection level, in accordance with MIL-STD-810G

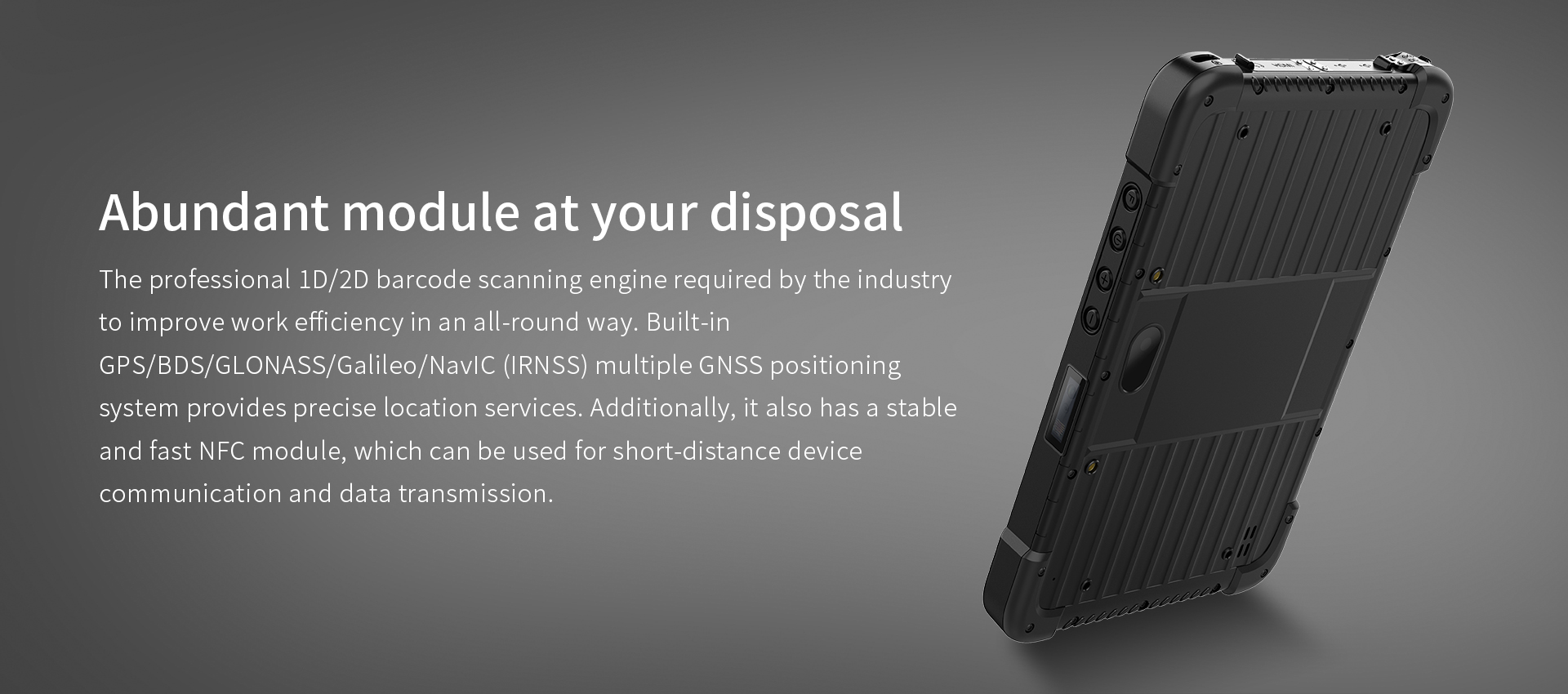

•Support GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS, more accurate positioning

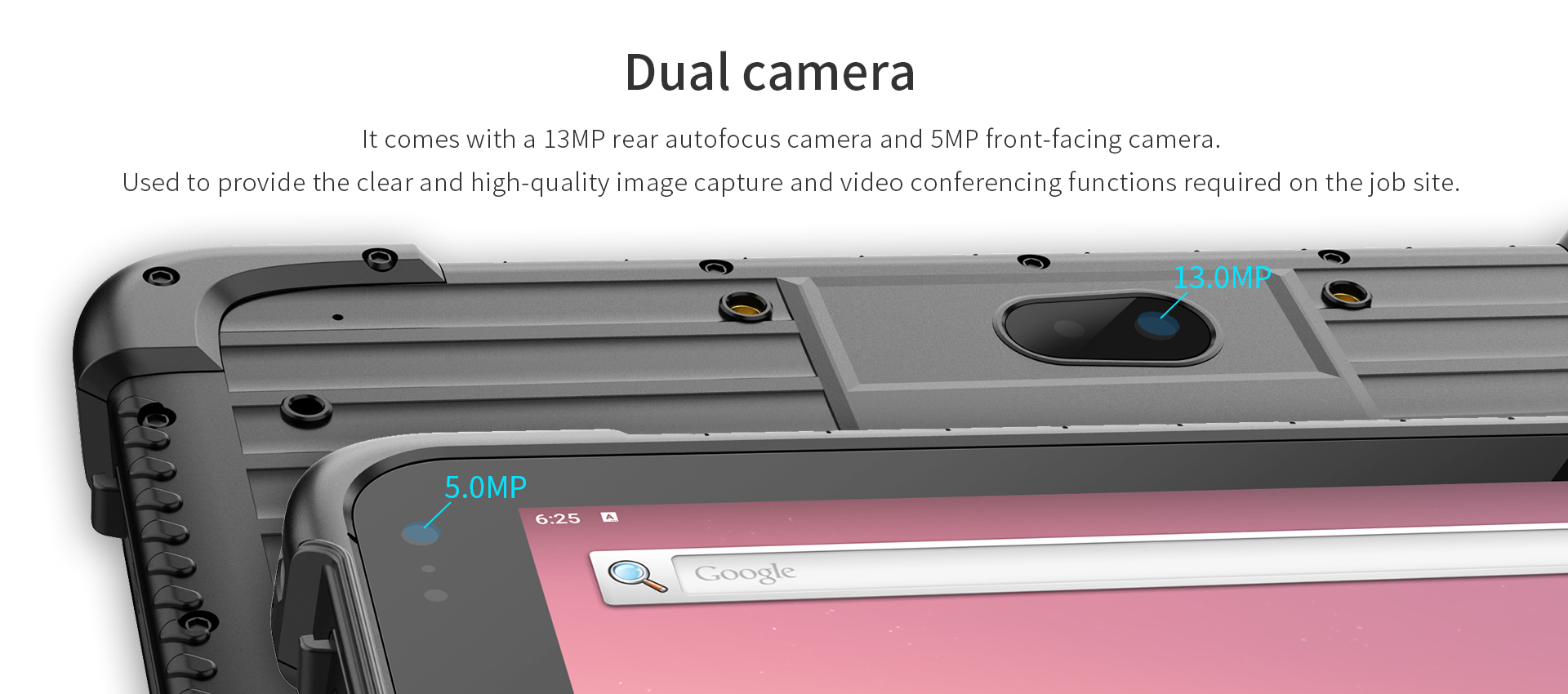

•Rear 13 million pixel auto focus camera, easy to collect image and video information
•Support 2D, NFC and other functional modules for free selection
•Support for Android 11 system

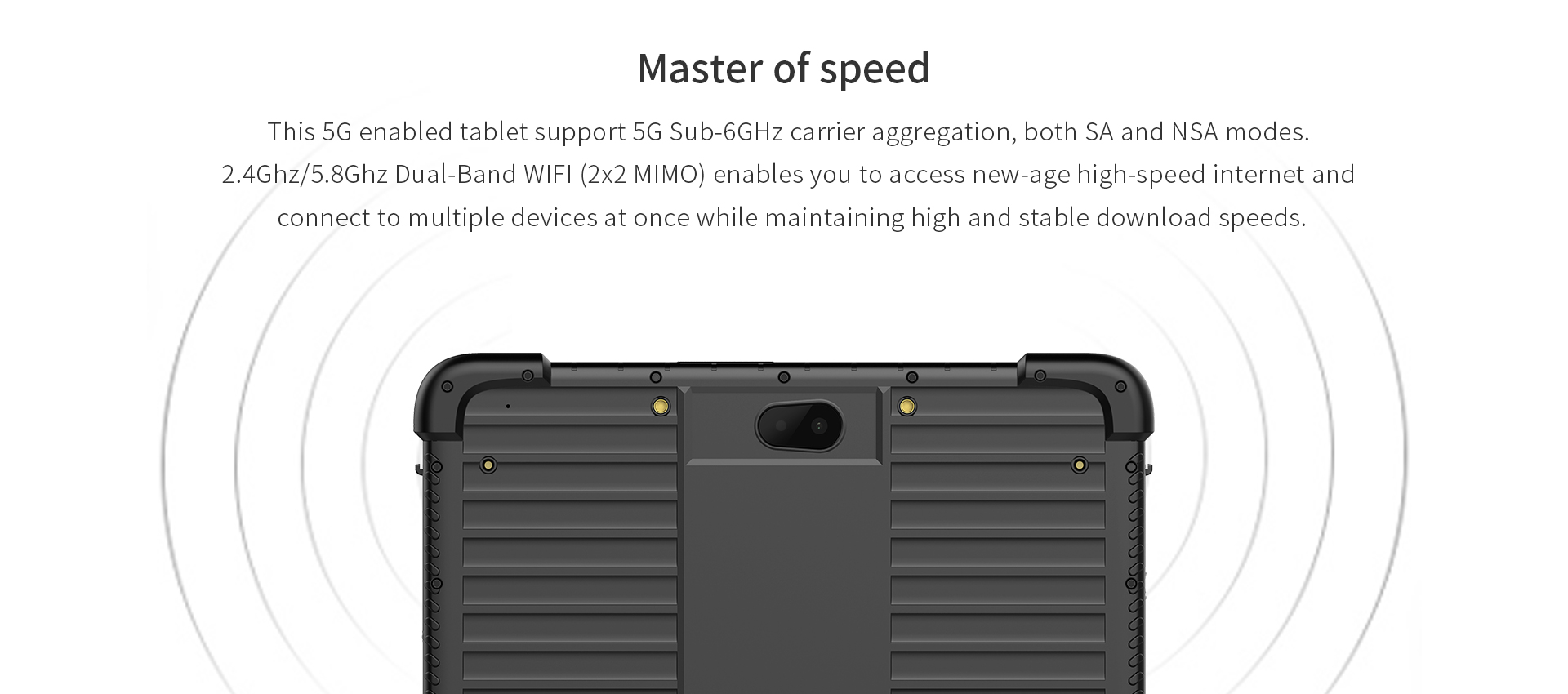

•Optional 4G/5G all network communication, WiFi, Bluetooth and other communication modes
•8500mAh battery, 10 hours of machine endurance
•IP67 high protection level, in accordance with MIL-STD-810G
•Support GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS, more accurate positioning
•Rear 13 million pixel auto focus camera, easy to collect image and video information
•Support 2D, NFC and other functional modules for free selection
|
Tech Spec |
|
|
Product Form |
8 inch Rugged Tablet |
|
Material |
- |
|
Dimension |
225.6*144.6*21.5 mm |
|
Weight |
715g |
|
Product Color |
Black |
|
CPU |
SM6350 2.0GHZ |
|
GPU |
Adreno GPU 619 |
|
Memory |
RAM 8GB ROM 128GB |
|
Operating System |
Android 11 |
|
Display |
Type: IPS |
|
Touch Pannel |
5 points capacitive screen, G+G, Corning gorilla glass hardness is above 7H, scratch resistant, |
|
Camera |
Front 5.0MP |
|
Buttons |
Power *1 |
|
Speaker |
8Ω/0.8W Waterproof BOX Speaker *1 |
|
Microphone |
Sensitivity: -42db, Output Impedance 2.2kΩ |
|
Senssors |
G_sensor, Light Sensor, Compass Sensor, Gyro Sensor |
|
Battery (Tablet) |
Built-in Li-polyment Battery |
|
WIFI |
WIFI 802.11 b/g/n/a/ac Dual frequency 2.4G+5G WIFI |
|
Bluetooth |
BT5.1 (BLE) |
|
2G/3G/4G/5G |
5G NR:N1/41/78/79 |
|
GPS |
Support: GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS |
|
I/O Interface |
Standard USB 3.0 *1, Type C *1 (Data & Charing) |
|
∮3.5mm Standard earjack *1 |
|
|
HDMI 1.4a Type C *1 |
|
|
SIM card *1 |
|
|
TF card *1，Max: 256GB |
|
|
DC 5V 3A ∮3.5mm jack *1 |
|
|
12PIN Pogo Pin *1 |
|
|
Adapter |
AC100V ~ 240V 50Hz/60Hz Output DC 5V 3A CE certified according to European regulations |
|
OTG adapter cable |
Type-C OTG cable |
|
Type-C cable |
Type-C cable |
|
Rugged Features |
MIL-STD-810G: 1.22m drop |
|
Working temperature: -20 °C to 55 °C |
|
|
Storage temperature: -30 °C to 70 °C |
|
|
Humidity: 95% Non-Condensing |
|
|
Certification |
IP67 |
|
CE NB |
|
|
MIL-STD-810G |
|
|
Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 |
|
|
Data Collection |
QR Code Scanner |
|
NFC |
|
